PT-SD310 Manual range Stage Tilt table Factory China - Manual Goniometer Stage, Low Profile Goniometer Platfor, Manual Goniometer Stage Export

Specification:

Model	PT-SD310
Platform Size	100mm×100mm
Angle Range	±15°
Height of turning center	124mm
Deviation of turning center	φ0.05 mm
Driving Mode	Worm drive
Guide form	V-guide + ball
Driving position	central drive
Scale	1°
Reading	5′
Adjustment	30″(consult)
Pendulum	200″
tilt	200″
Load bearing	5kg
Dead weight	1.75kg
Material	Aluminium alloy
surface treatment	Anodizing blackening

Product details:

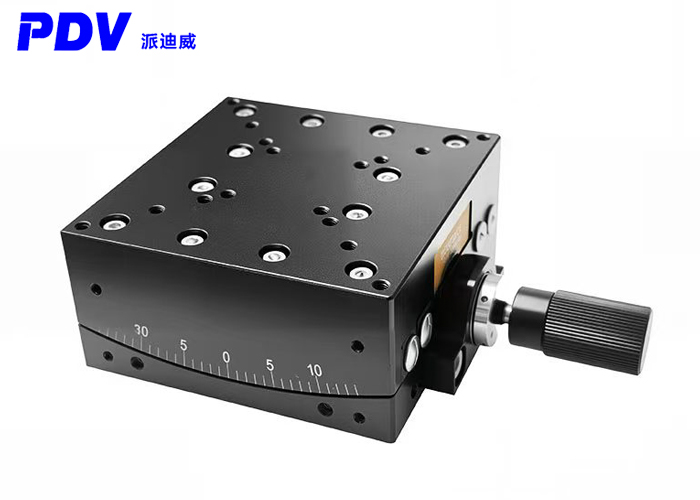

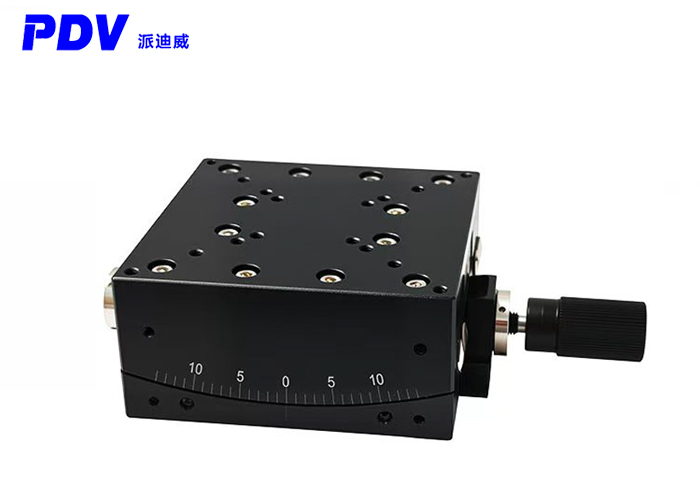

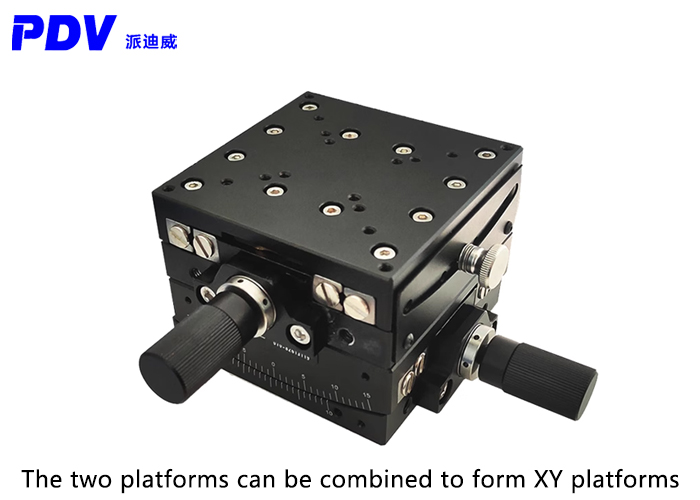

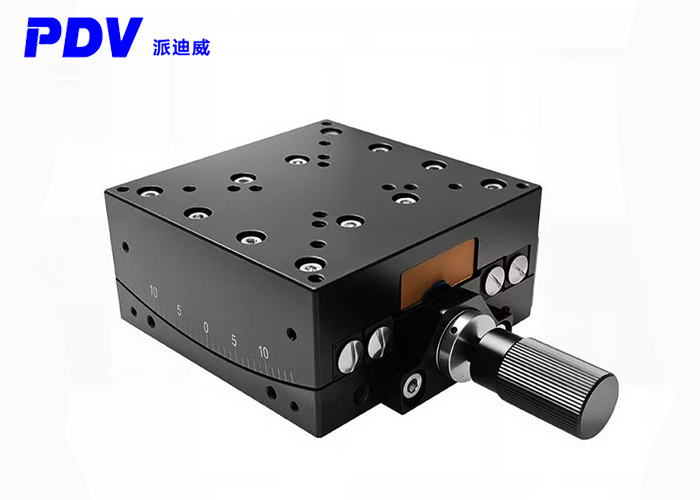

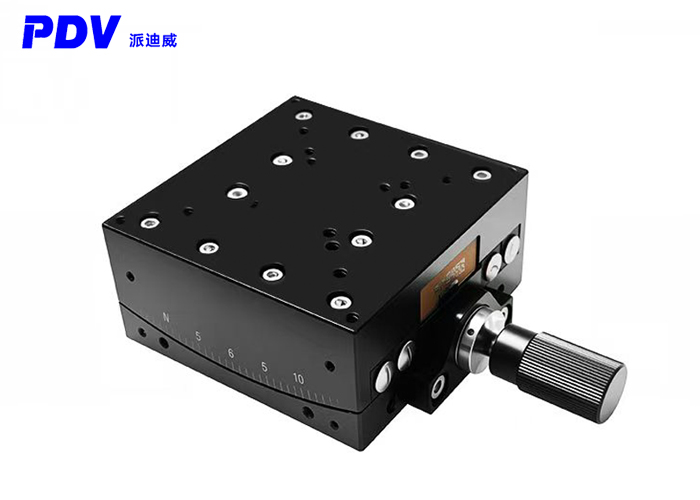

PT-SD310 Manual range Stage Tilt table

Service:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
