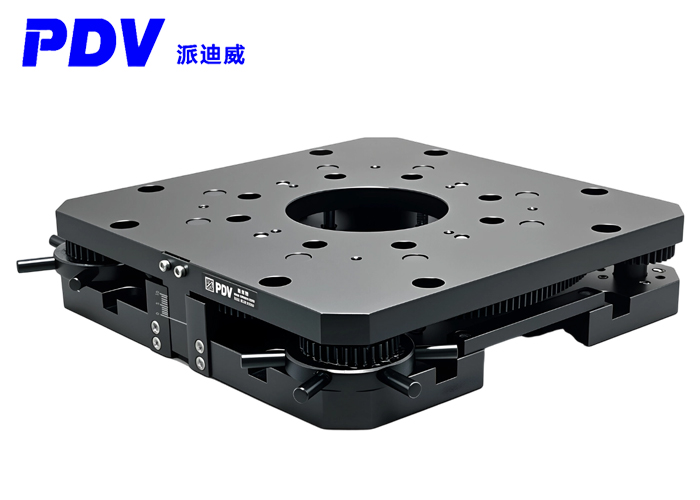

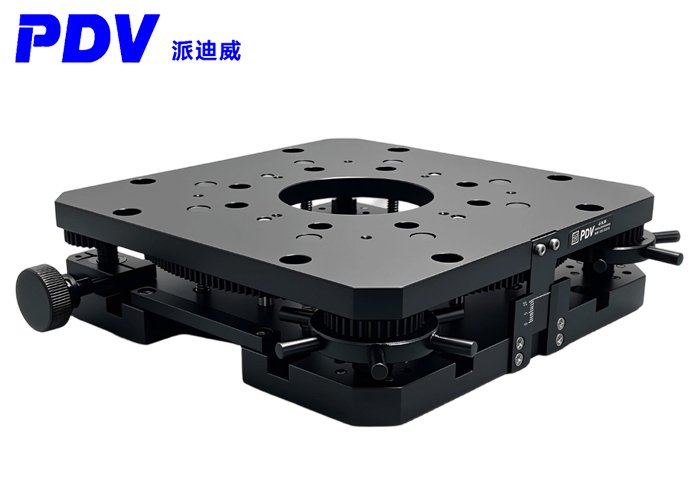

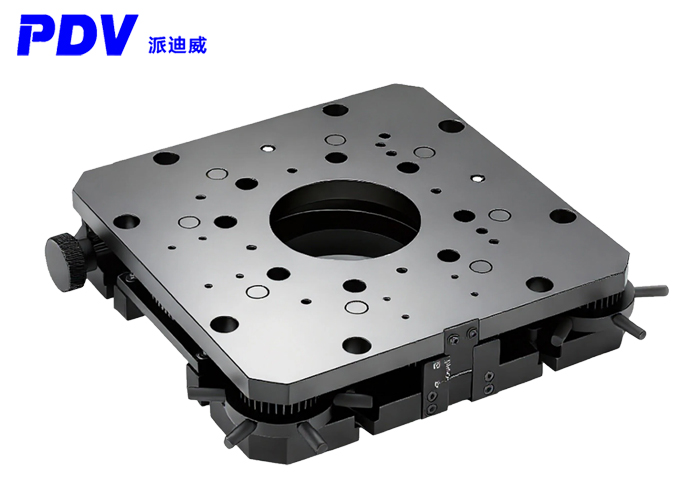

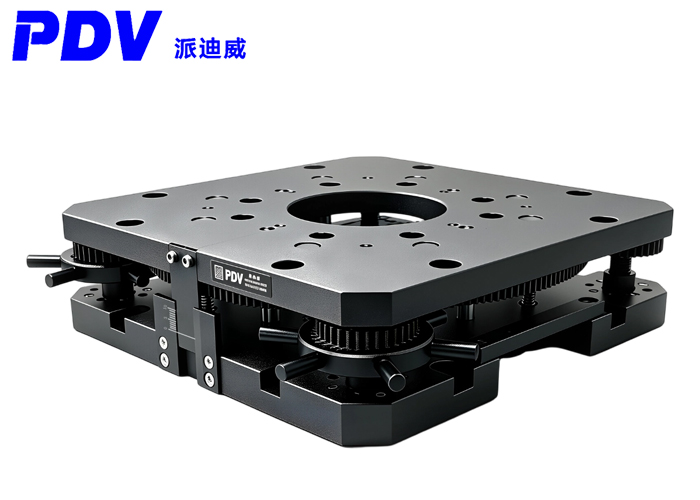

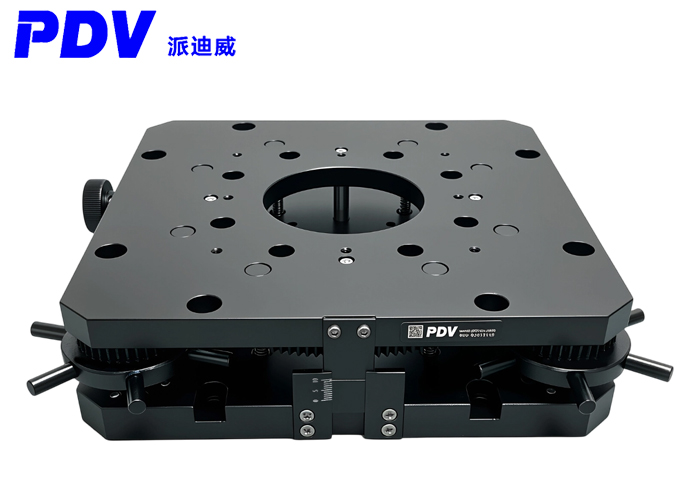

PT-SM200 This is a large Z-axis platform with a spiral hoist. The height can be adjusted by turning any hand wheel on the side. The handwheel is linked internally. When one of them is rotated, the other will rotate synchronously. The center of the platform is equipped with a through-hole, and the effective through-hole size does not change even if the position of the platform top is adjusted.
Platform Size | 200×200mm |
Type of Axis | Z Axis |
Travel（mm） | 10mm |
Travel/circle(mm) | 1mm |
reading（mm） | 1 |
Guide rail form | Spiral lifting mechanism mode |
Main materials | Aluminium alloy |
Surface treatment | Black oxidation |
Carrying capacity | 490N(50.0kgf) |
Movement accuracy / straightness | 200μm |
Parallelism | 150μm |
bearing moment / pitch | 4.9N･m |
load moment / rotation | 4.9N･m |
Torque stiffness / pitch | 0.05″/N.cm |
Torque stiffness / rotation | 0.05″/N.cm |
Movement accuracy / straightness | 200μm |
dead weight | 5.0kg |
Product dimension drawing：
