Product features:
1 - The entire product is made of aluminum alloy.
2 - Surface black anodizing treatment
3 - Coarse-tuning rapid release function
4 - The pins on the rear of the stage can be connected by a bead chain and placed in the quick-release lock to prevent the coarse adjustment function from being activated.
5 - The precise positioning optical-mechanical system of the longitudinal displacement stage minimizes mechanical vibration and ringing to the greatest extent, making it highly suitable for applications requiring precise alignment.
6-The base plate of the 6-position stage has six straight countersunk holes and one countersunk hole.
7 - After setting the required platform height, two attached diameter installation fixtures can be used to lock the connecting rod clamps, making the installation surface more stable.

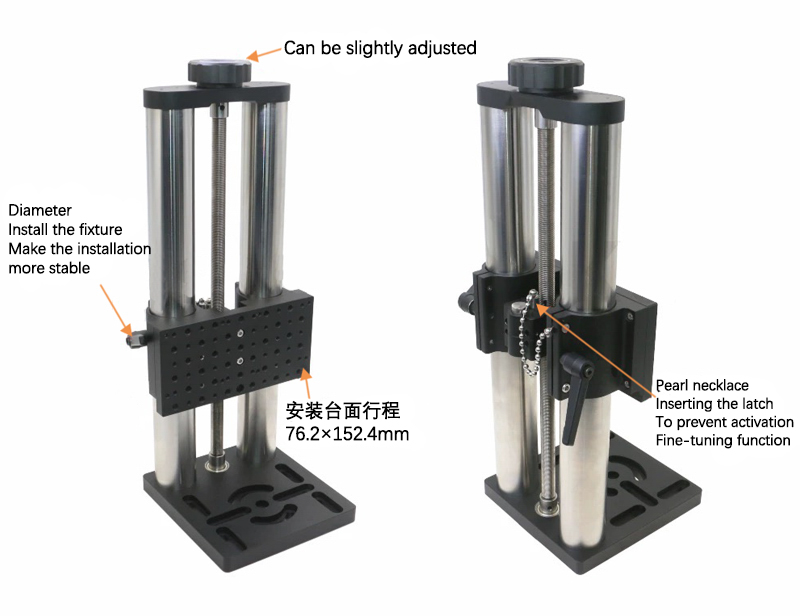

The torque required to fine-tune the drive knob of the longitudinal displacement stage increases as the load on the displacement stage increases. If you want to make a coarse adjustment over a long stroke range, you can use the quick-release button of the displacement stage. Pressing this button will separate the displacement stage from the guide rod, making it convenient to adjust the position of the mounting plate with your hands. The pins on the back of the displacement stage can be placed in the quick-release lock through the bead chain to prevent the activation of the coarse adjustment function. It is recommended to always keep the pins engaged with the quick-release lock except when using the coarse adjustment function. The quick-release button and locking pin can be seen in the picture above. If you use the quick-release mechanism for coarse adjustment and the mounting platform drops, the two buffers on the bottom plate of the displacement stage will help minimize damage. After setting the required platform height, you can lock the lever clamp with two handles to make the mounting surface more stable.

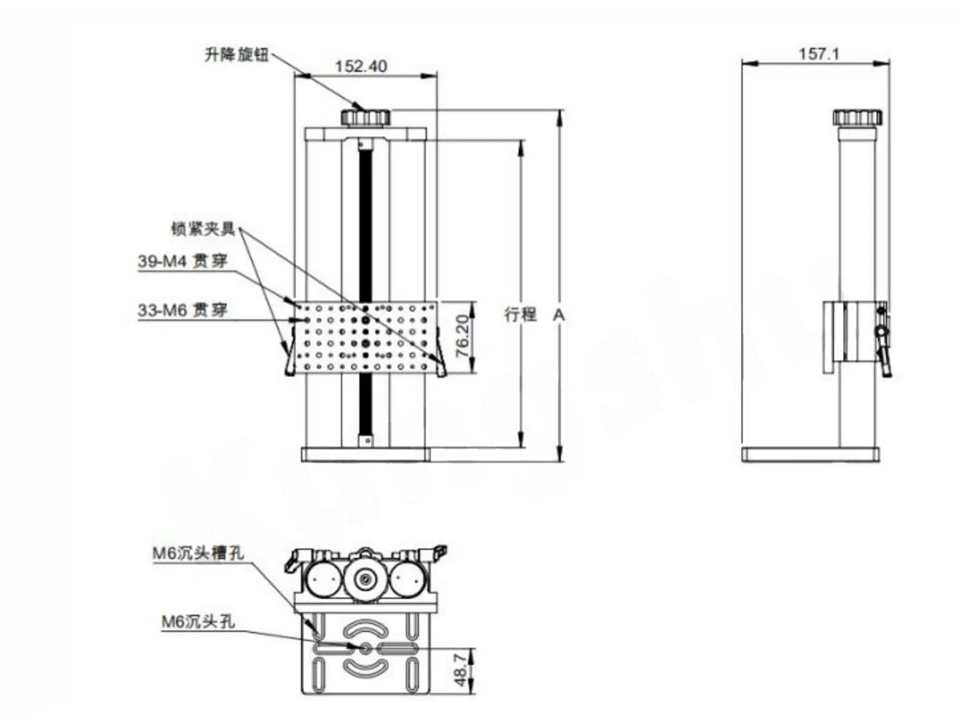

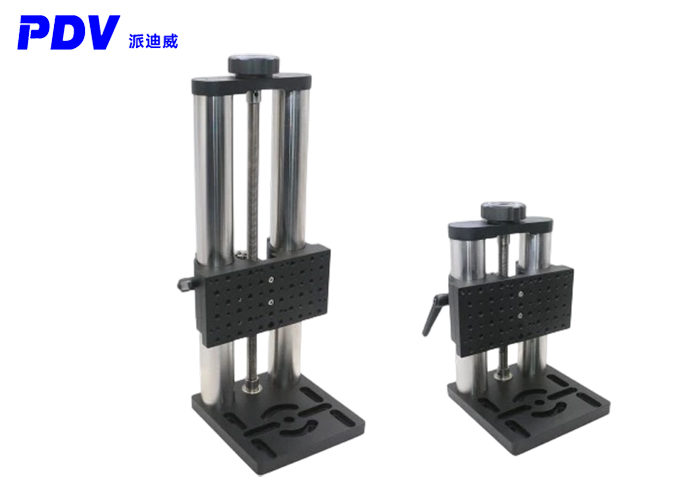

Product size parameters:
| model | A | Itinerary | Material |
| PT-SD1016 | 225 | 4inch | Aluminum alloy |
| PT-SD254 | 355 | 10inch | Aluminum alloy |

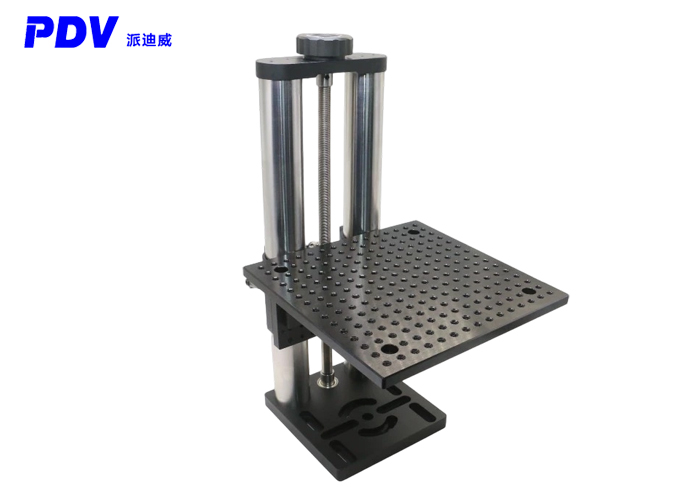

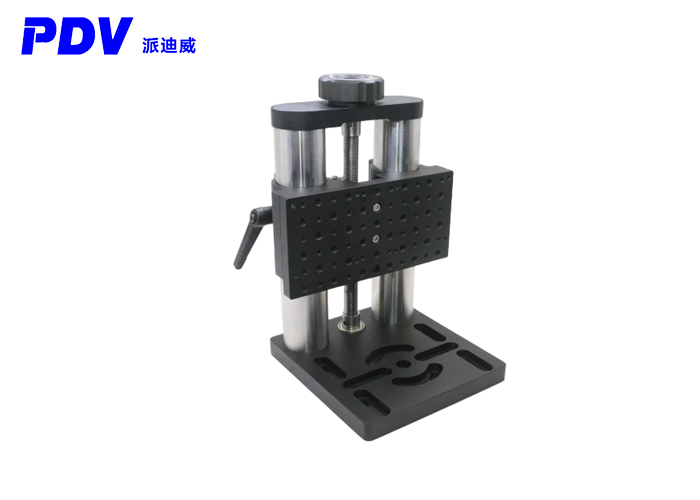

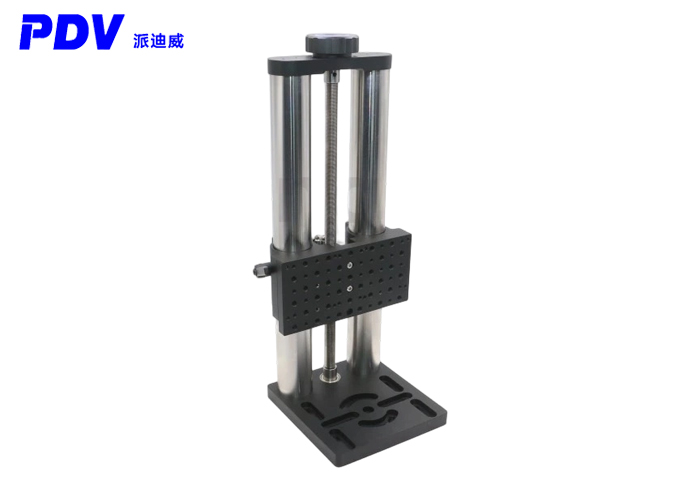

Product Details:
We're glad you're working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales staff, so as to avoid delaying your schedule due to the inconsistency between the parameters and your use requirements of the products you buy. We thank you again for your support.
