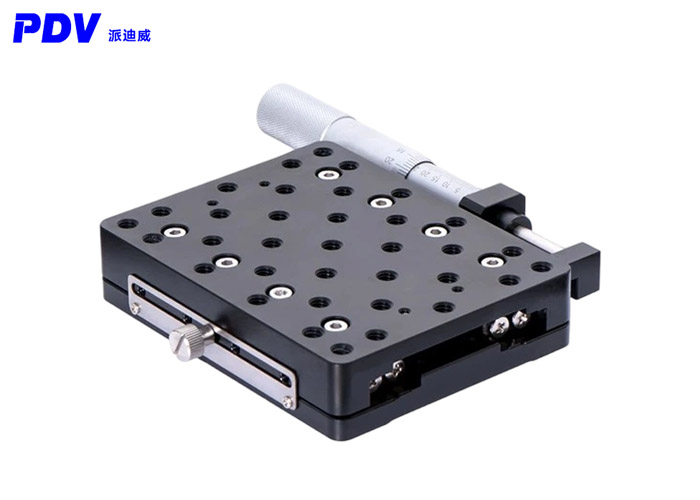

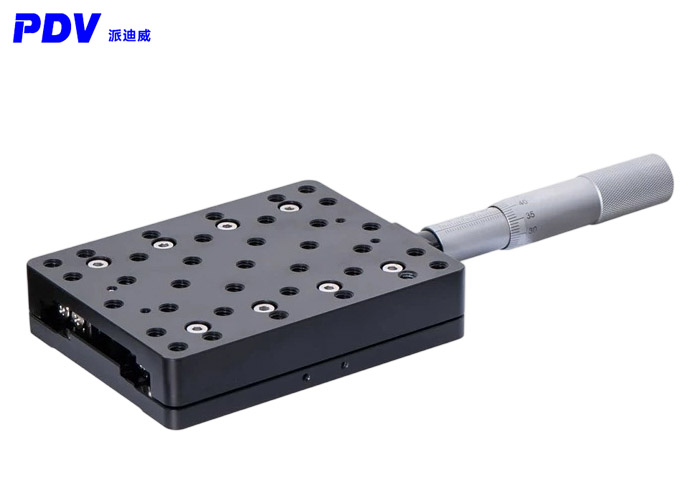

Product features：
The adoption of crossed roller guide rails enables high-precision and smooth displacement.
The main material is aluminium alloy, which is light in weight. Suitable for integration into other devices.
Product parameters：

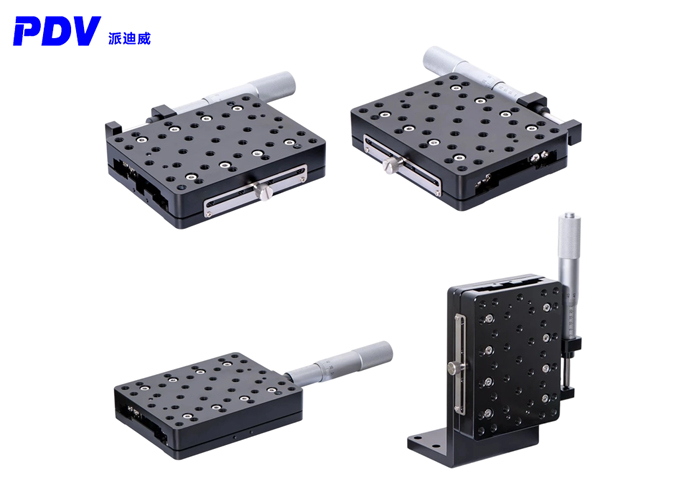

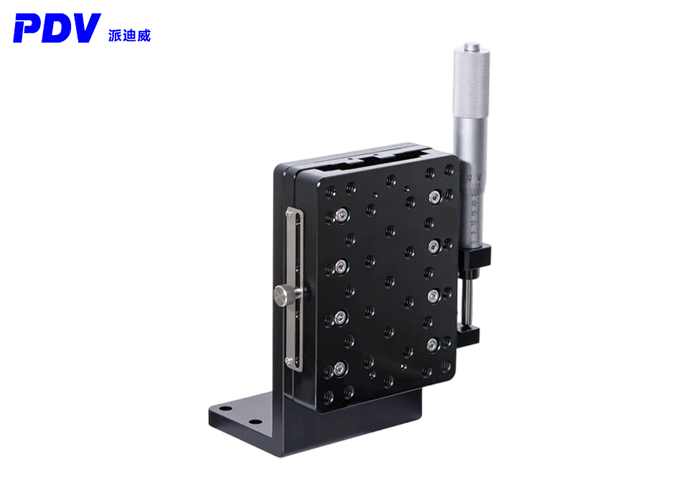

| Model | PT-SD115-50C | PT-SD115-50L | PT-SD115-50R | PT-SD115-50Z |
| Main material | Aluminum alloy (black oxidized) | |||
| Direction of movement | One direction of the X-axis | One direction of the Z-axis | ||
| Guide rail type | Crossed roller guide rail | |||
| Driving mode | Differential head | |||
| Countertop size | 90×115×25mm | 90×115×25mm | 90×115×25mm | 90×115mm |
| Z-axis travel | ±25mm | ±25mm | ±25mm | ±25mm |
| Drive position | Middle push | Push left | Push right | Vertical |
| Sway sideways | 50” | 50” | 50” | 50” |
| Pitch | 50” | 50” | 50” | 50” |
| Minimum reading | 10μm | |||
| Weight | 0.85kg | 0.85kg | 0.85kg | 1.35kg |
| Load | 147N(15kgf) | 147N(15kgf) | 147N(15kgf) | 49N(5kgf) |

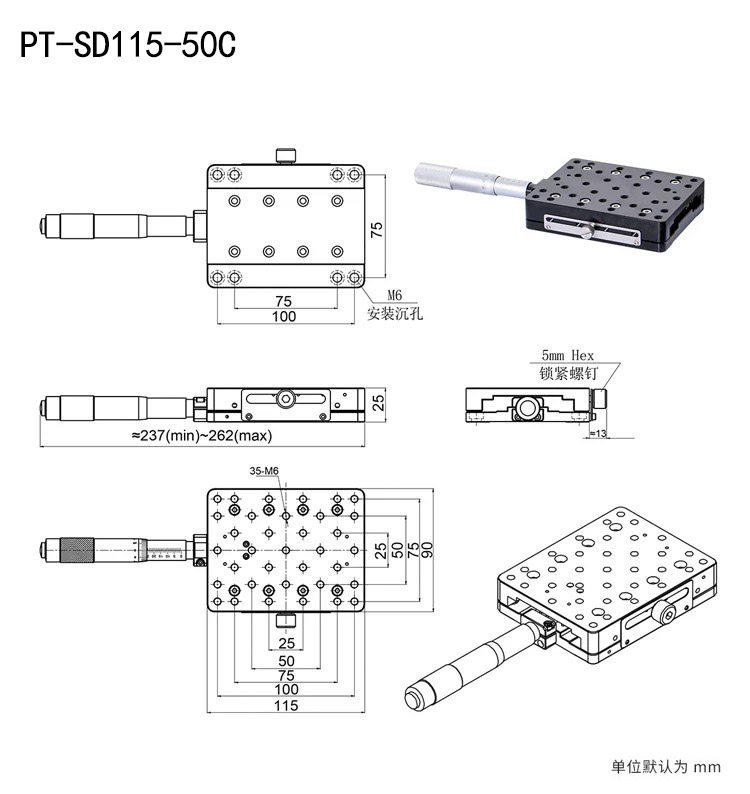

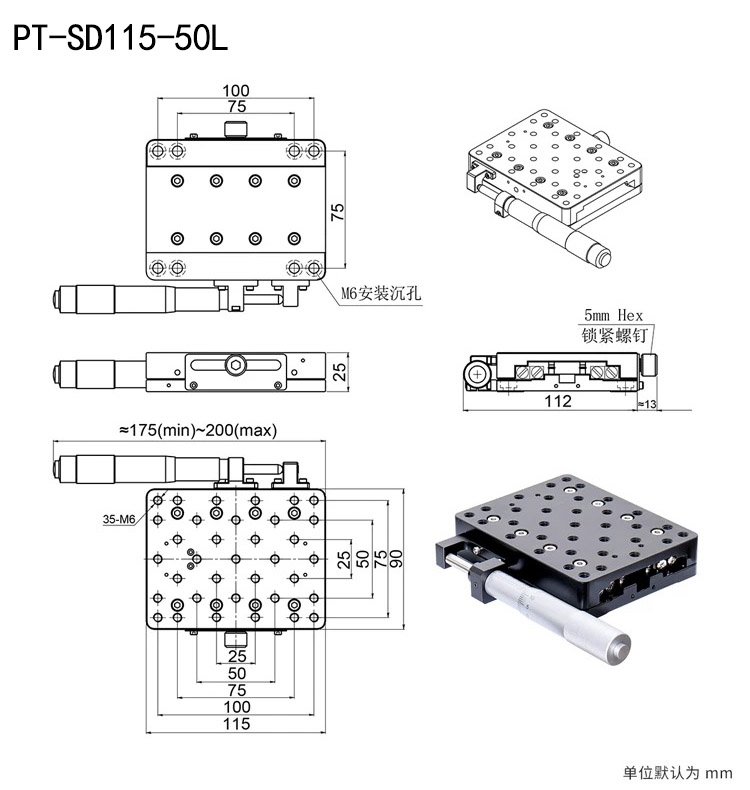

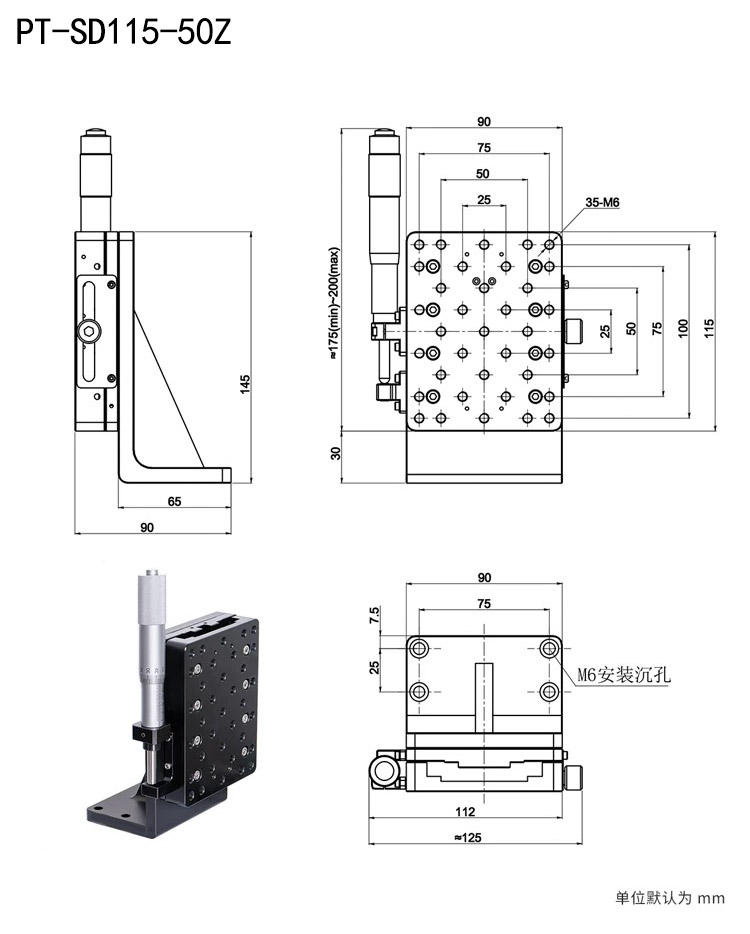

Product size：
