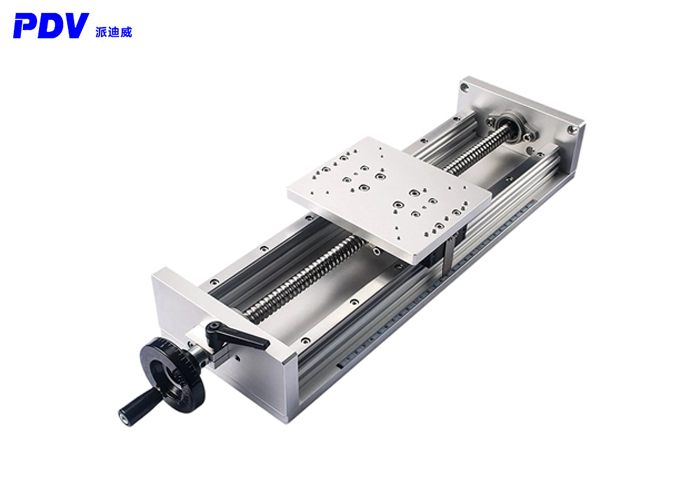

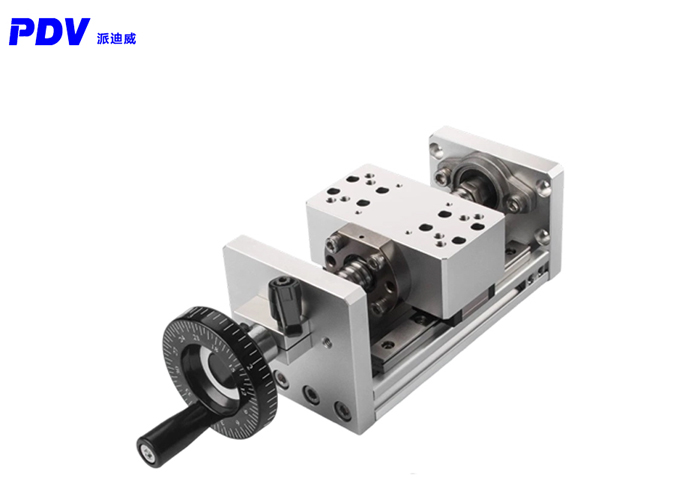

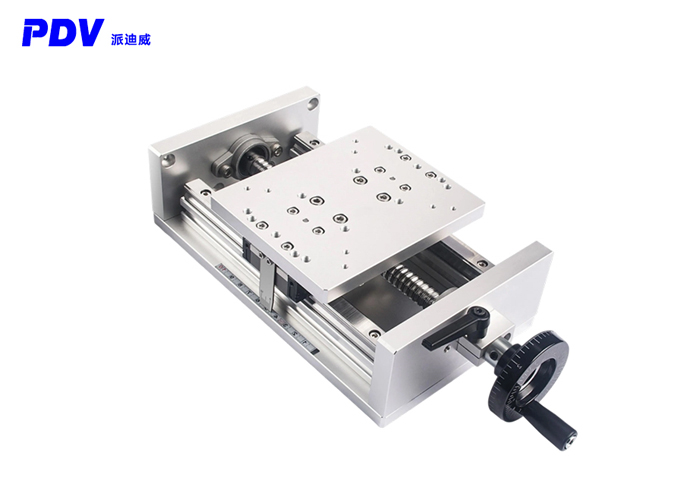

Locking structure
It has a simple structure and a large load-bearing capacity
It is made of high-quality aluminum alloy, with a simple structure, easy installation and large load-bearing capacity. The slotted locking structure can achieve a relatively large holding force
Product parameters：
| Model | Table size(mm) | Itinerary (mm) | Lead screw diameter | Lead (mm) | Guide rail specification (mm) | Load | Weight(kg) | Thickness (mm) | Material |
| PT80-L50 | 50×90 | 50 | φ16mm | 5mm | wide:12 high:8 | 490 (50kgf) | 1.81 | 78 | Aluminum alloy |
| PT80-L100 | 100 | 2.05 | |||||||
| PT80-L200 | 200 | 2.49 | |||||||
| PT80-L300 | 300 | 2.92 | |||||||
| PT80-L400 | 400 | 3.35 | |||||||
| PT100-L50 | 80×100 | 50 | wide:15 high:12.5 | 2.07 | 50 | ||||
| PT100-L100 | 100 | 2.37 | |||||||
| PT100-L150 | 150 | 2.69 | |||||||
| PT100-L200 | 200 | 3.01 | |||||||
| PT100-L300 | 300 | 3.66 | |||||||
| PT150-L100 | 120×150 | 100 | 4.31 | 72 | |||||
| PT150-L200 | 200 | 5.20 | |||||||
| PT150-L300 | 300 | 6.08 | |||||||
| PT150-L400 | 400 | 6.96 | |||||||
| PT200-L100 | 120×200 | 100 | 5.03 | 72 | |||||
| PT200-L200 | 200 | 5.92 | |||||||
| PT200-L300 | 300 | 6.80 | |||||||
| PT200-L400 | 400 | 7.68 |

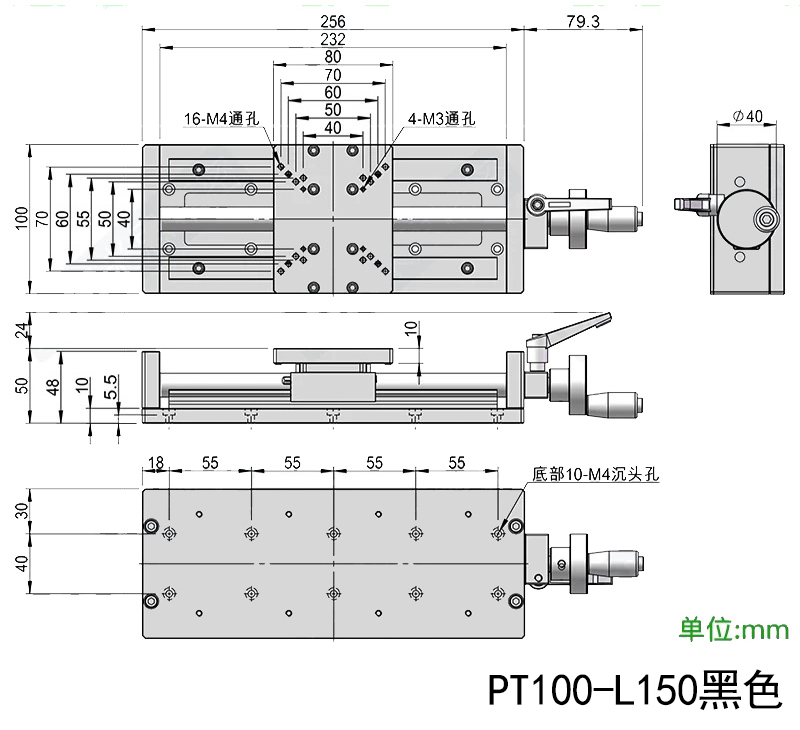

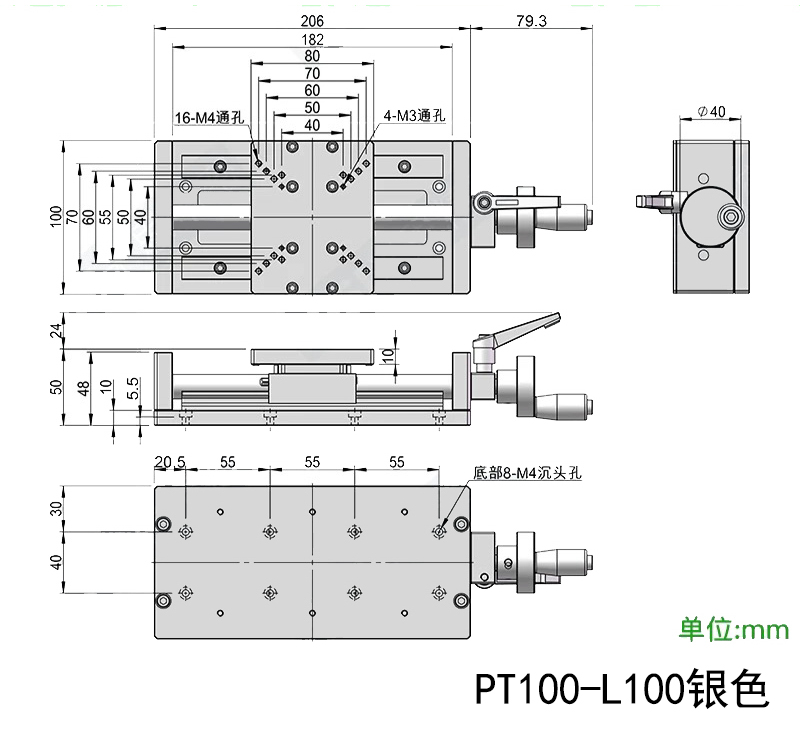

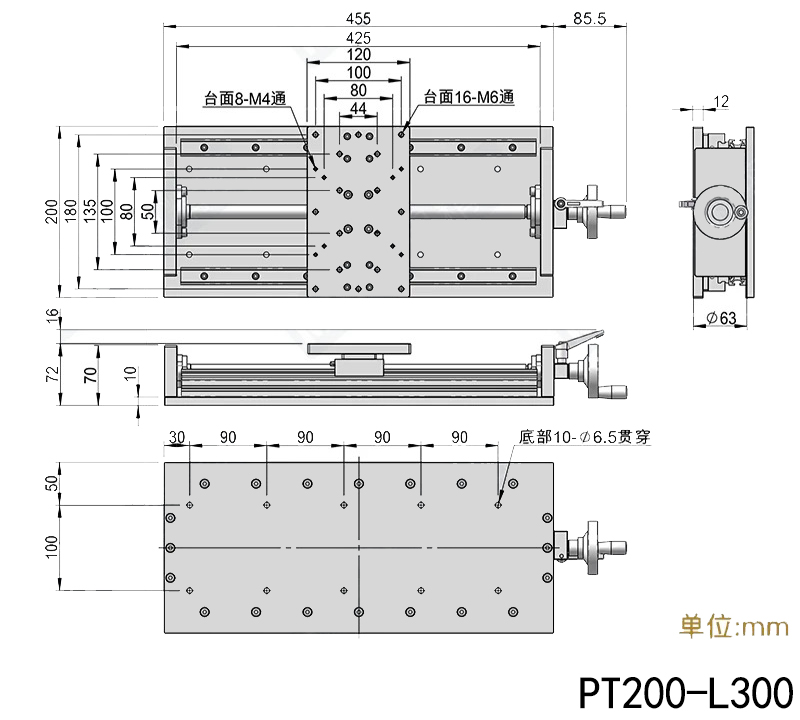

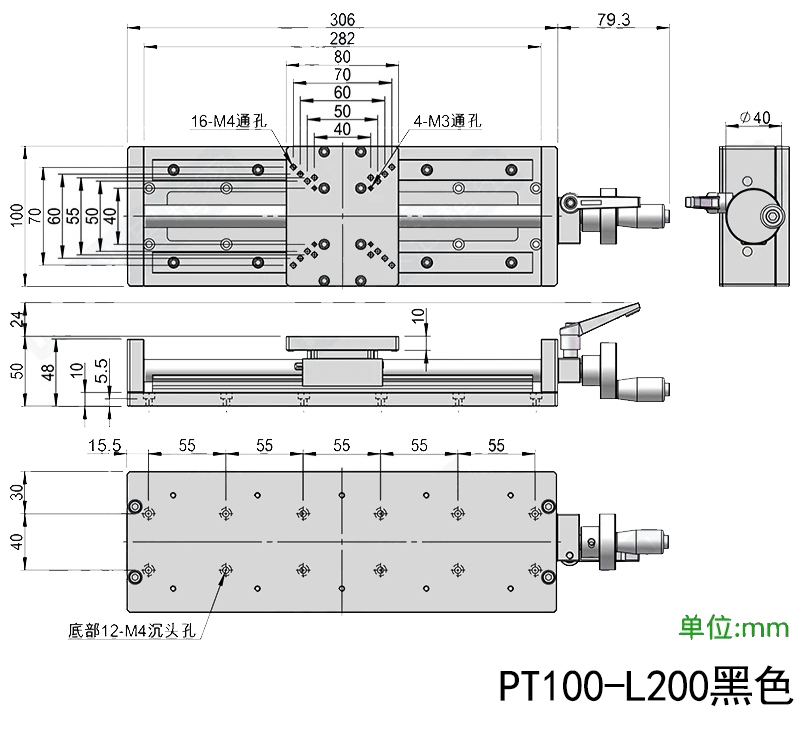

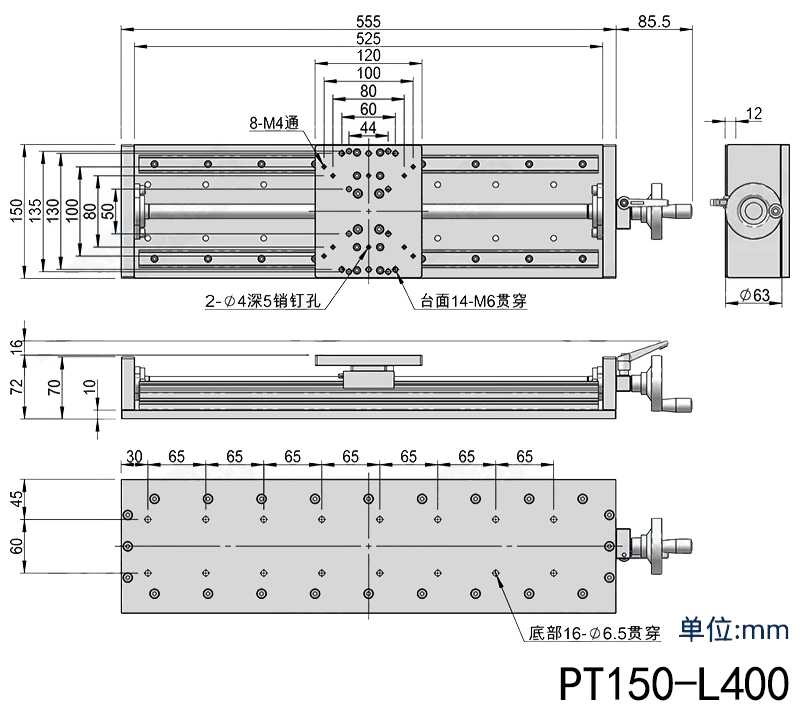

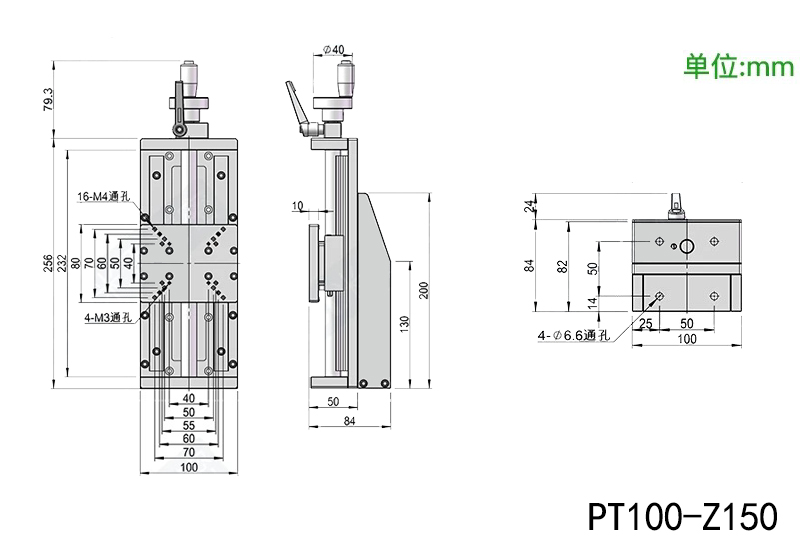

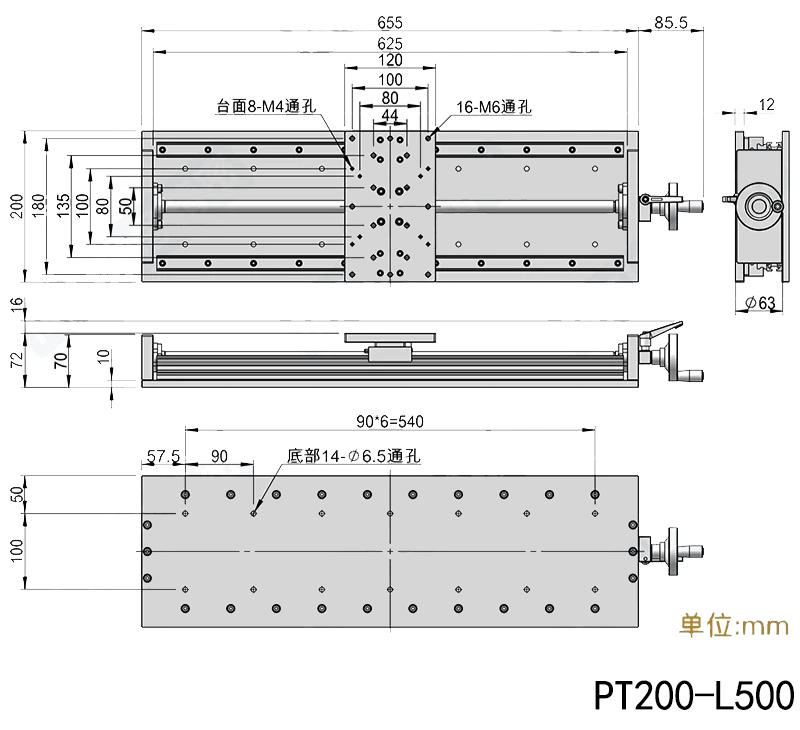

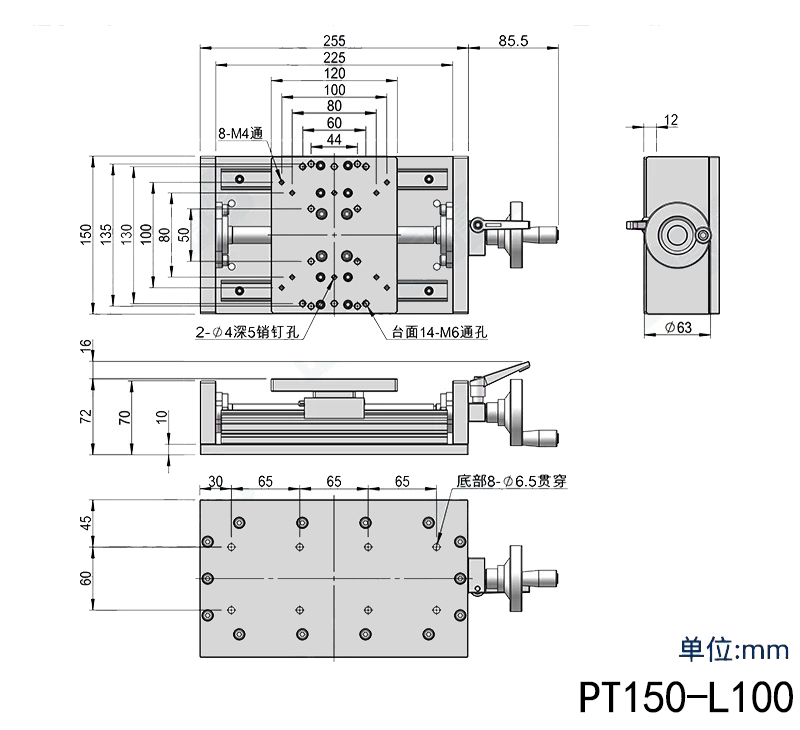

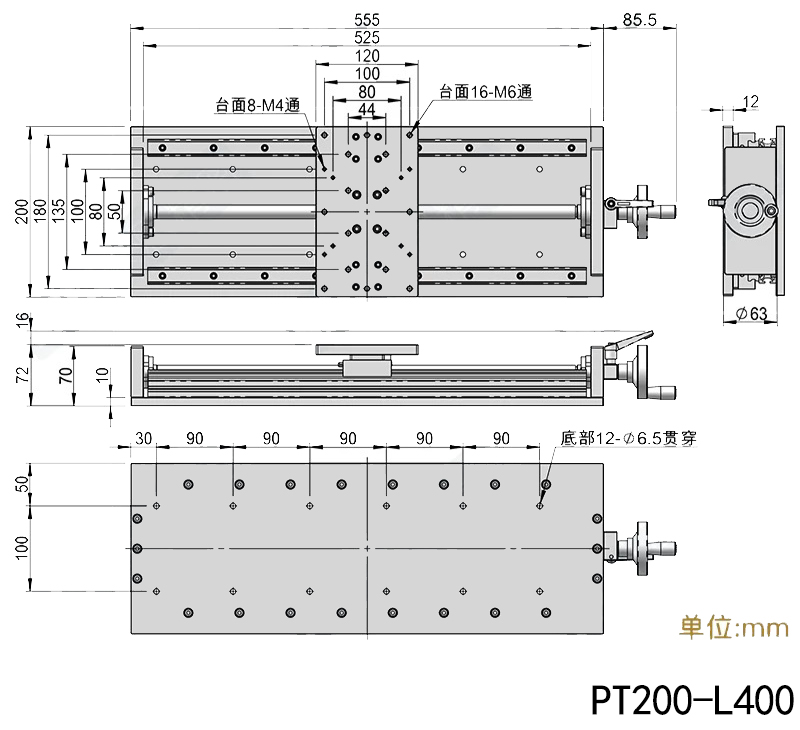

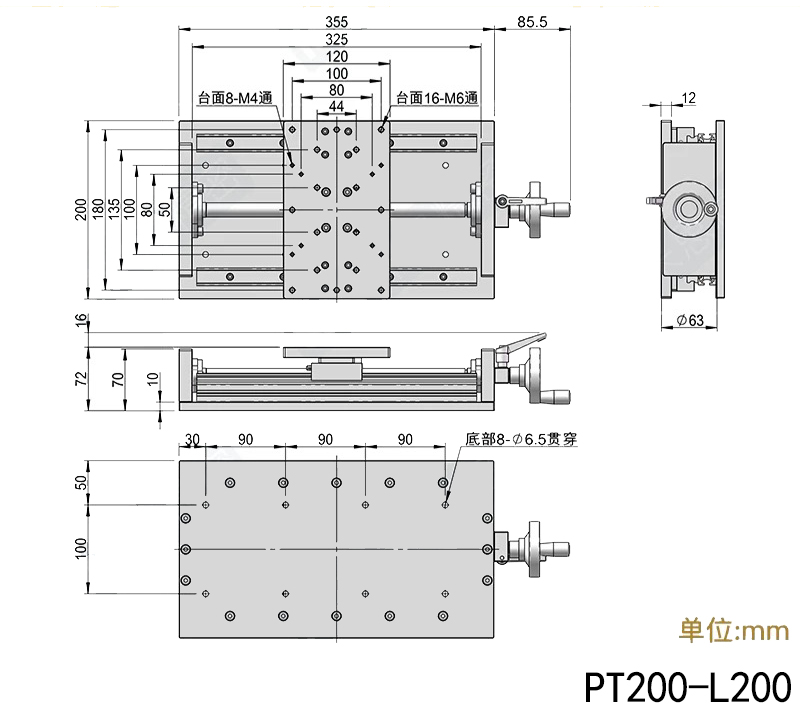

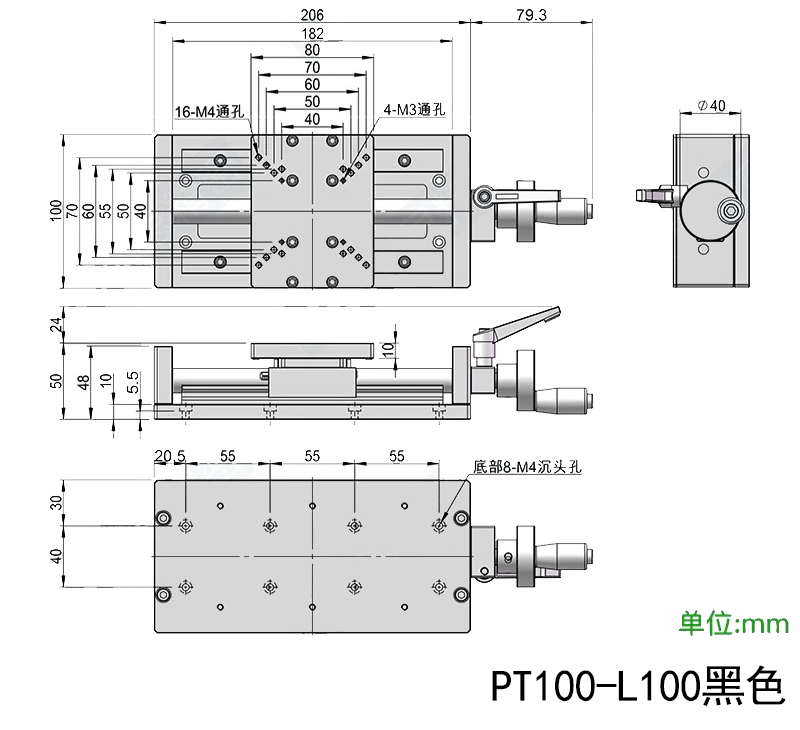

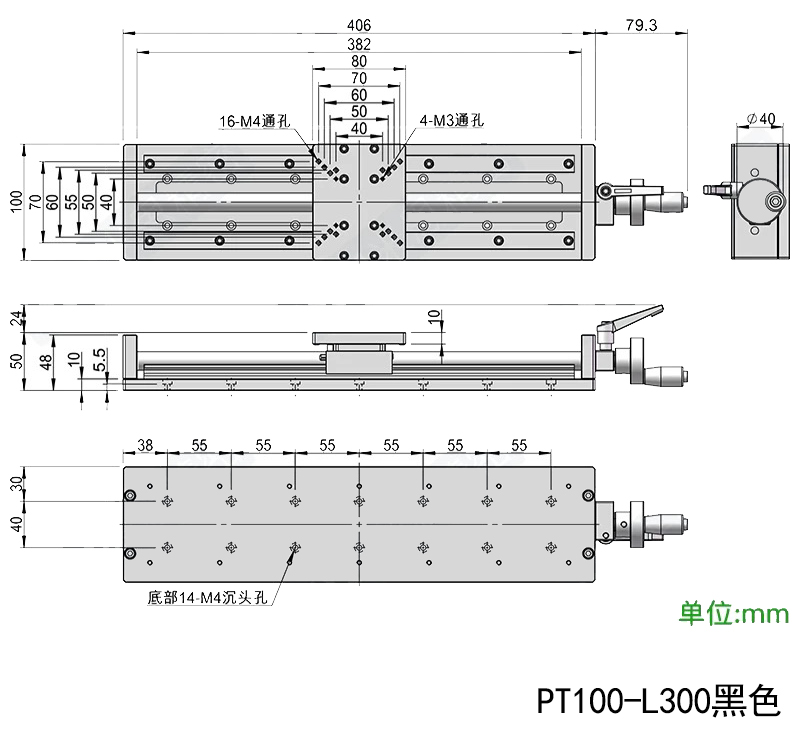

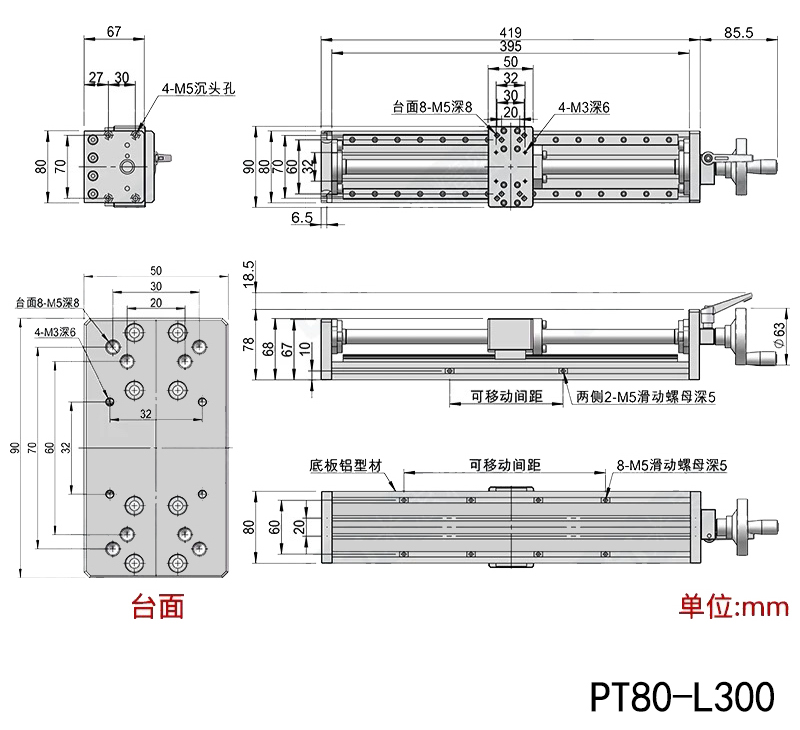

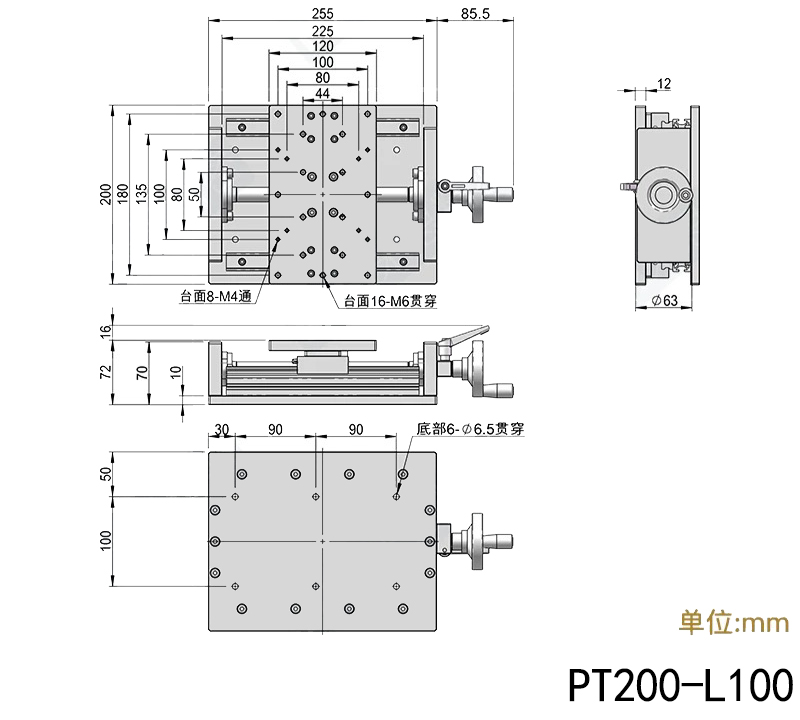

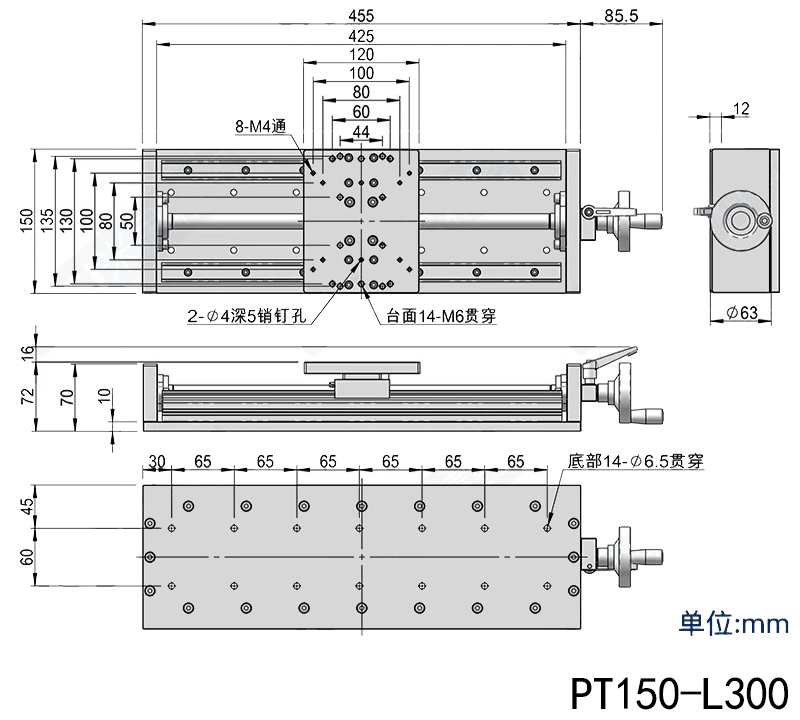

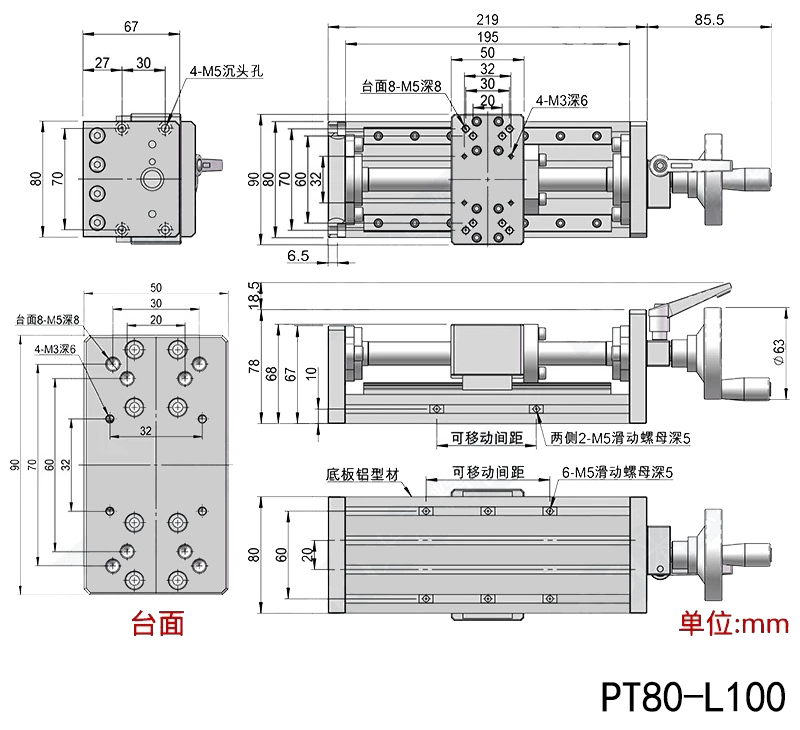

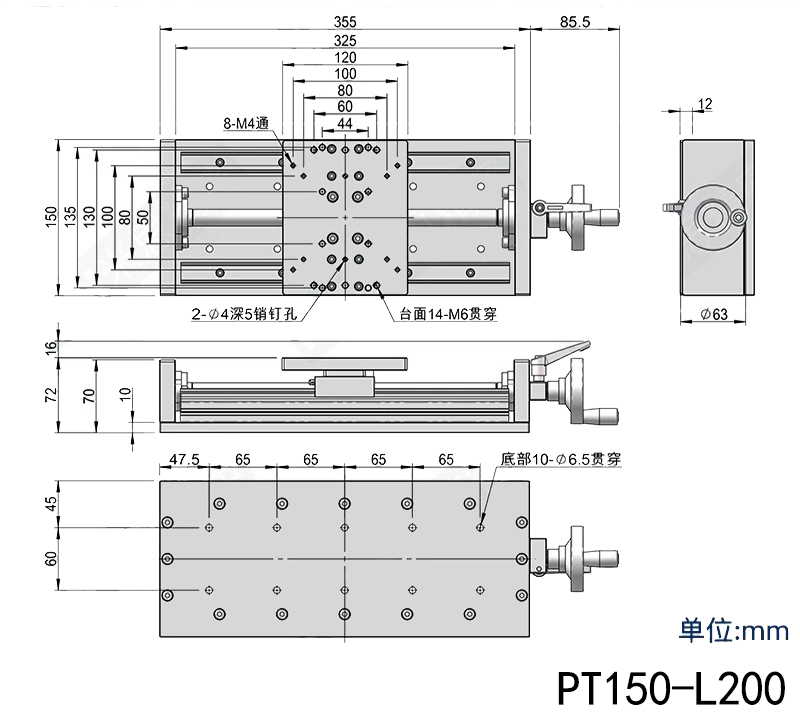

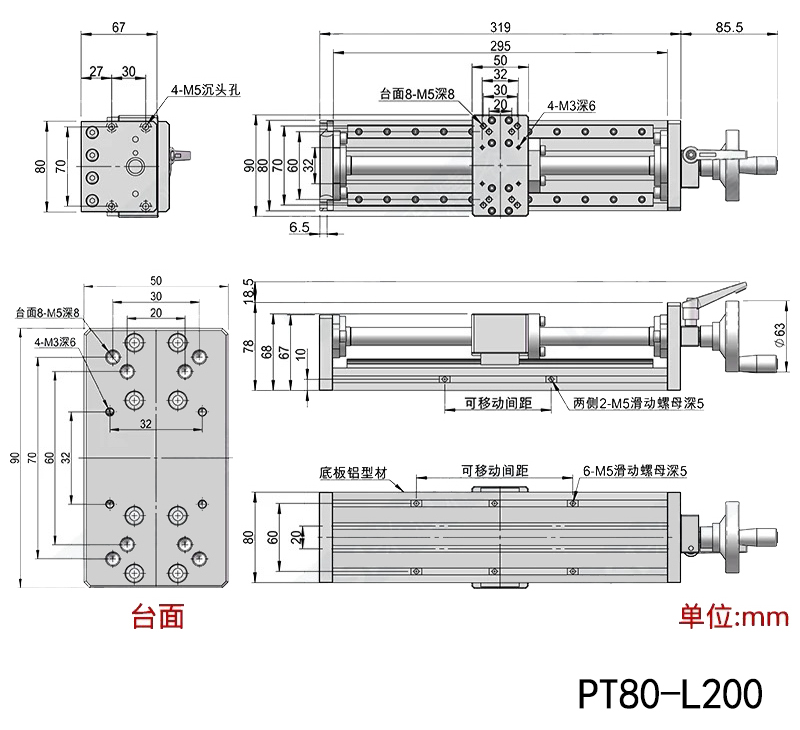

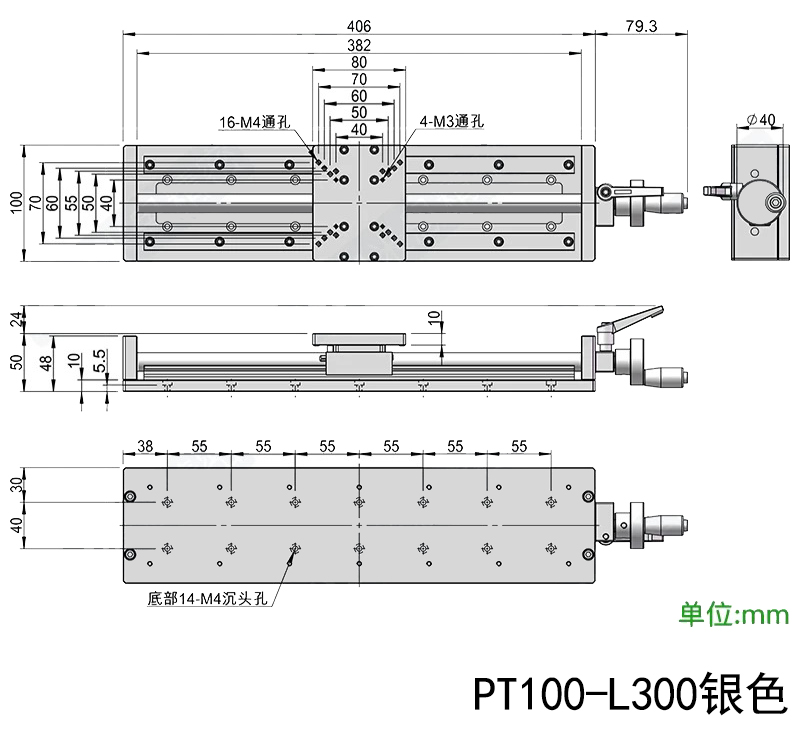

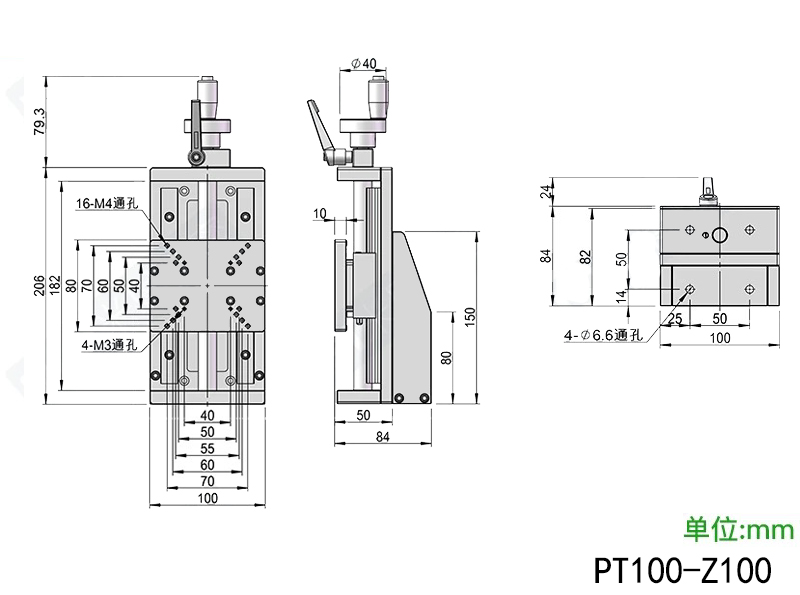

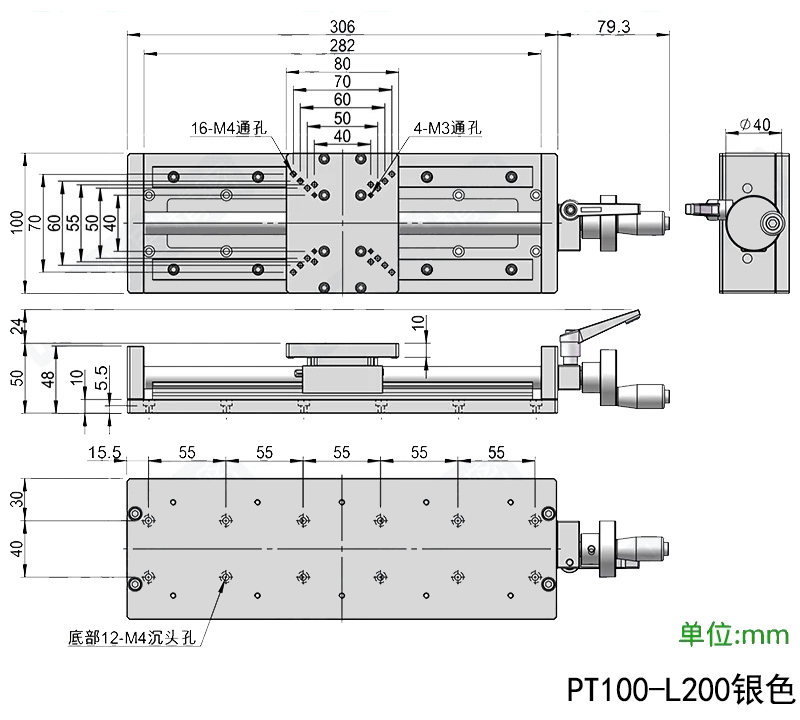

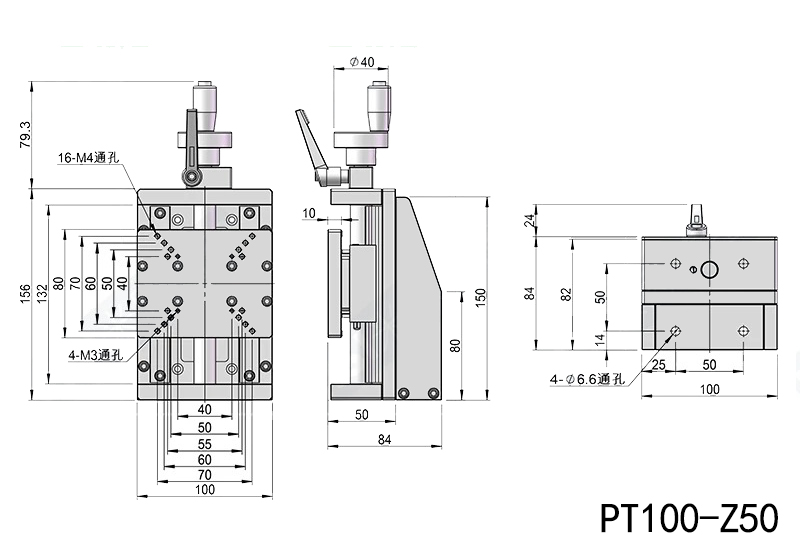

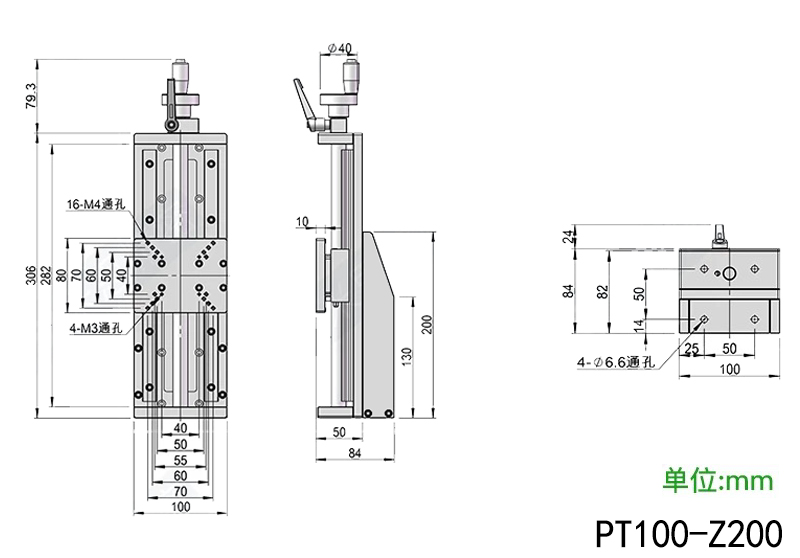

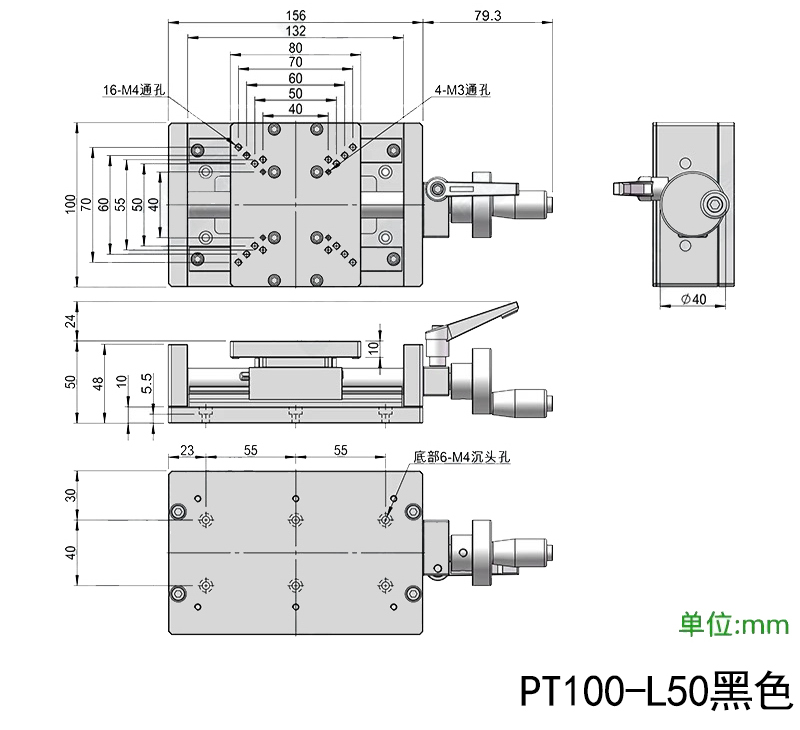

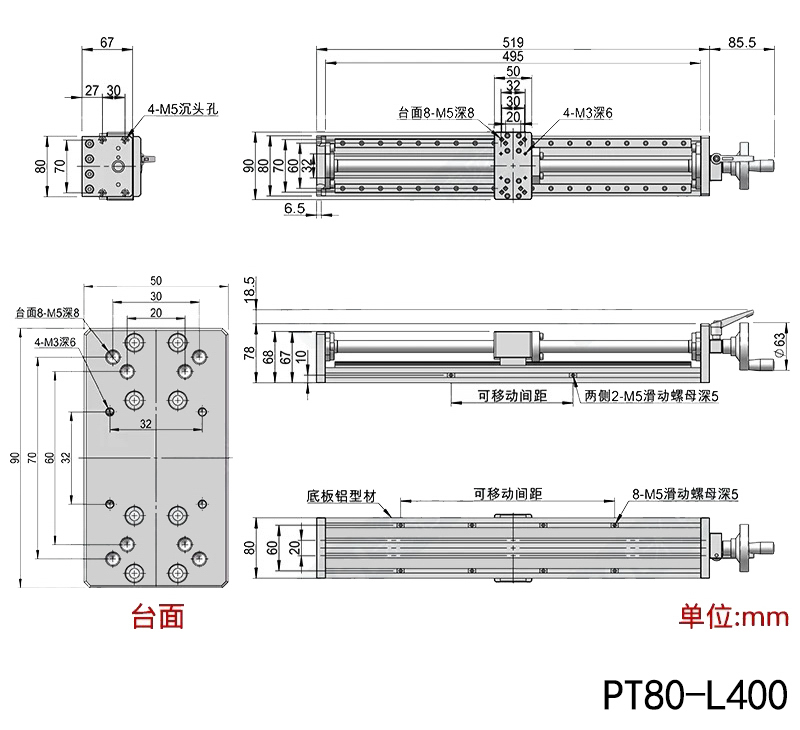

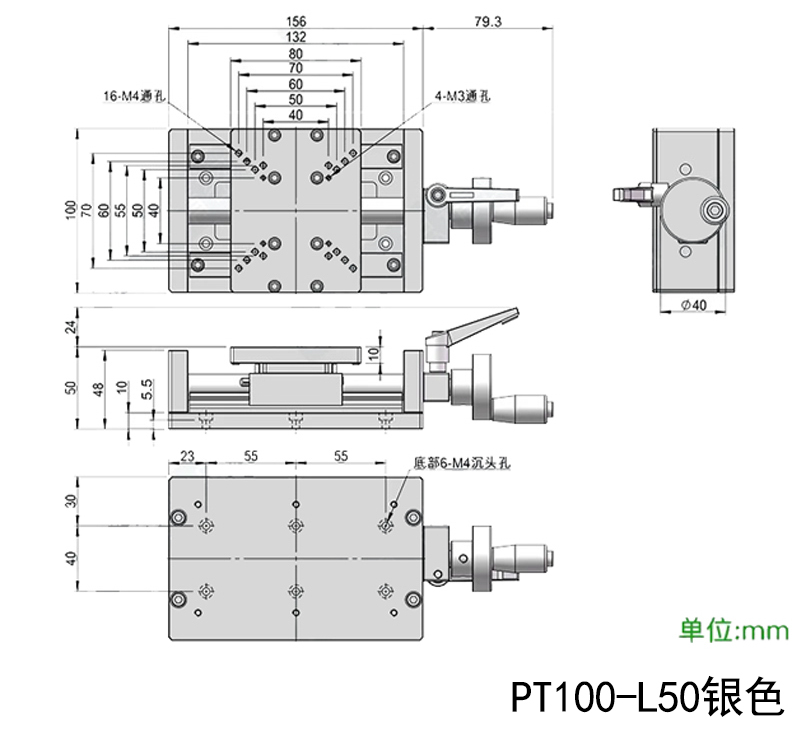

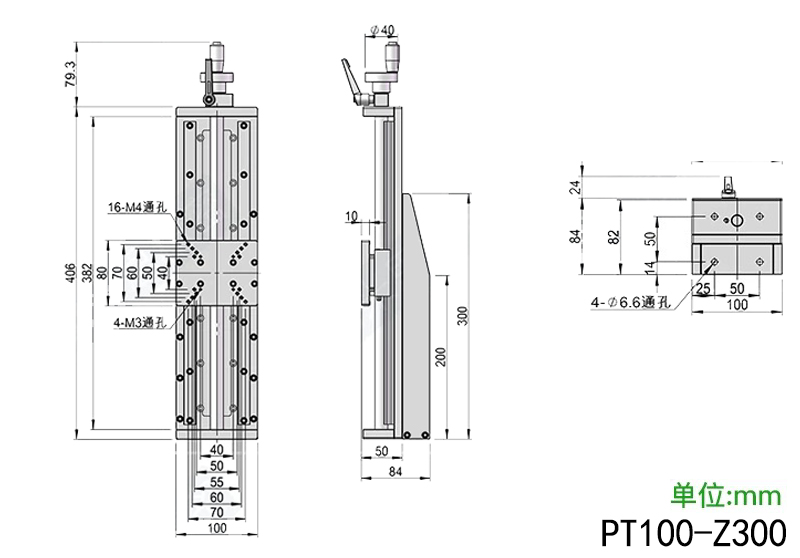

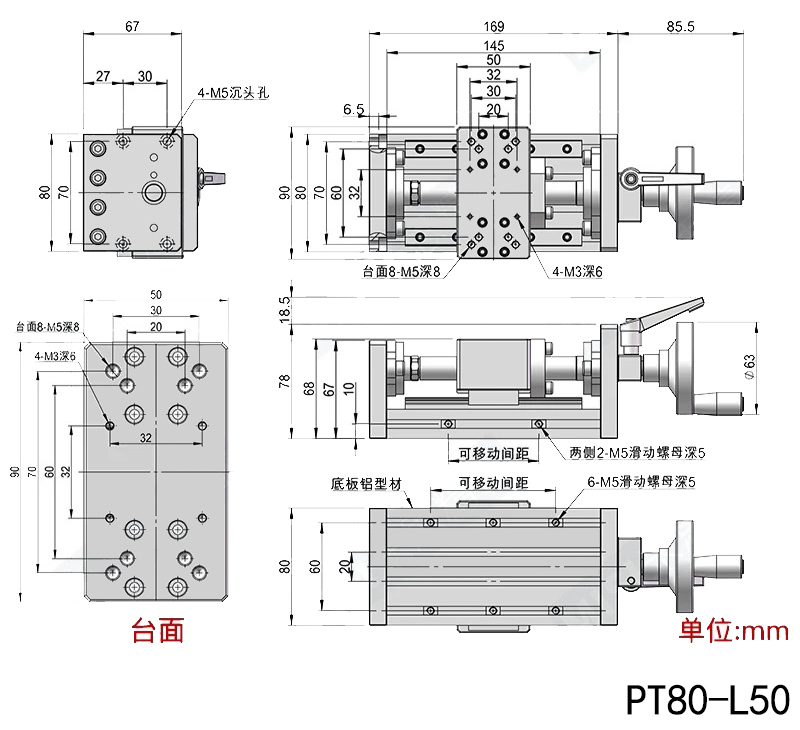

Product size：

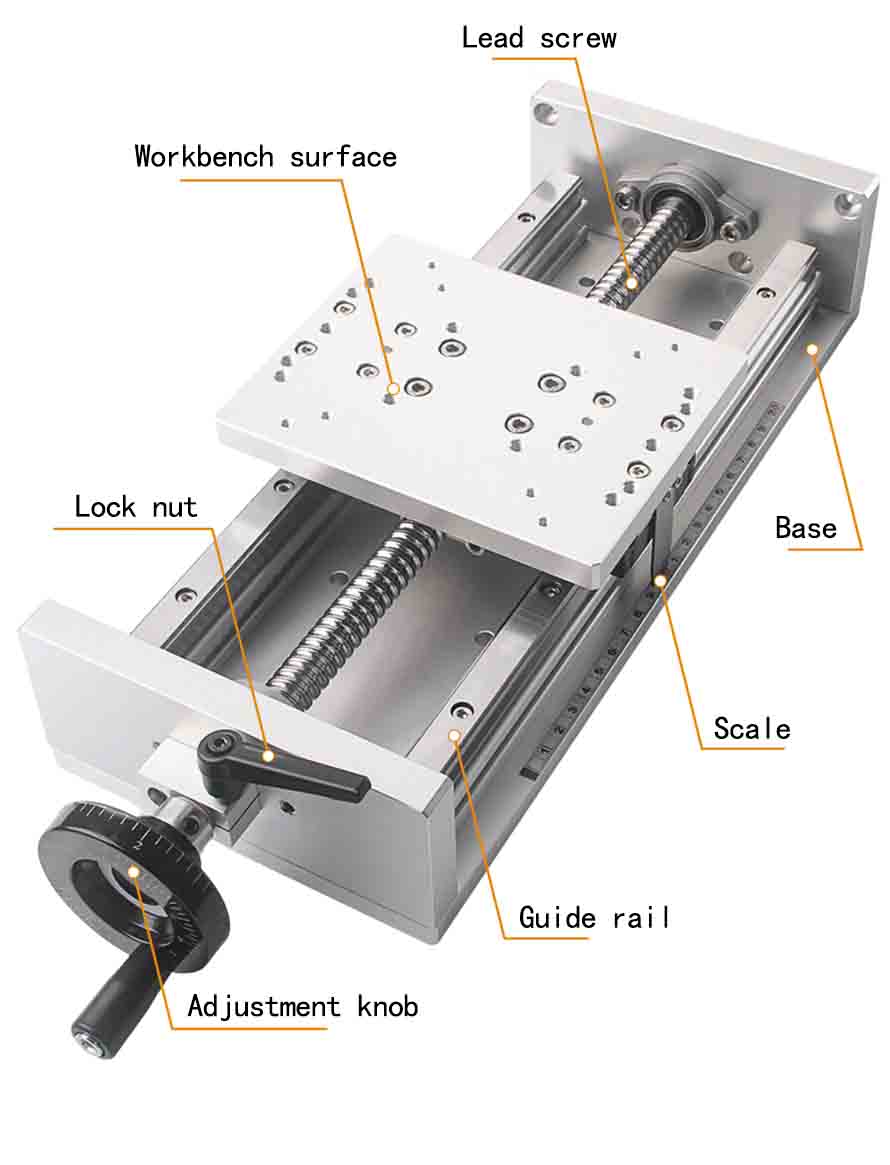

Product structure：
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We're glad you're working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales staff, so as to avoid delaying your schedule due to the inconsistency between the parameters and your use requirements of the products you buy. We thank you again for your support.
