Specification:
Service:
Shipping:
FAQ:
Product Specifications:
| Model number | PP170-150 |
| Itinerary | 150mm |
| Size | 87×80mm |
| Thickness | 40.5mm |
| Load (Center) | 20kg |
| Design Resolution | 0.012μm |
| Exercise Volume | ≥1μm |
| One-way Repetition Accuracy | 1μm |
| Angle Interference (Pitch/Yaw) | ±75 to ±200 μrad (per 100mm) |
| Speed (No Load) | ≤10mm/s |
| Thread Pitch of Screw | 1mm |
| Load | 200N |
| Push-pull force | 50,100N |
| Weight | 1.8kg |
| Model number | PX110-100 |
| Table top diameter | φ100mm |
| Drive method | Worm gear drive |
| Adjustment range | 360° |
| Grinding | 2° |
| Reading | 12’ |
| Adjustment amount | 36" (Reference) |
| Support | 15kg |
| Table top end jump | 30μ |
| Offset | 15μ |
| Table top parallelism | 30μ |
| Self-respect | 1.2kg |
| Materials | Hard aluminum |
| Surface treatment | Anodizing to black color |

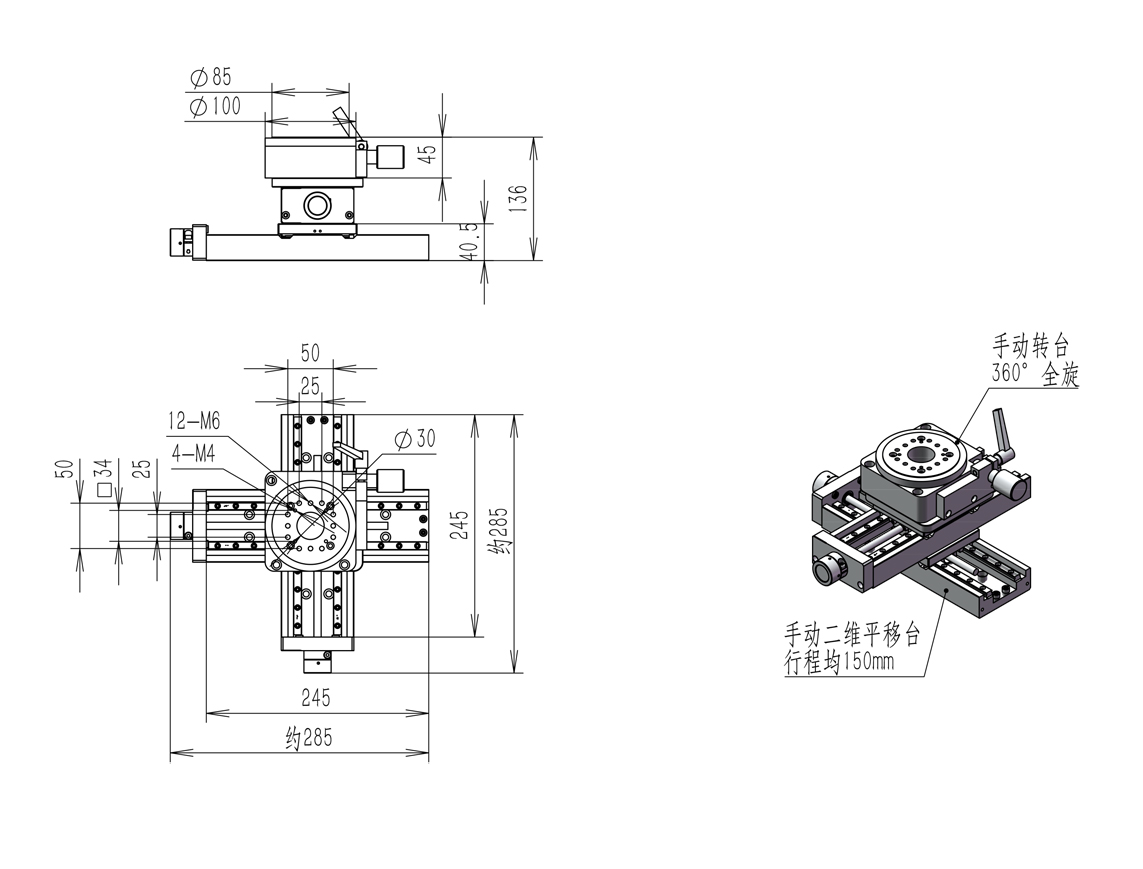

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
