Manufacture Manual XZ two-dimensional combined adjustment table, stroke 200mm, load capacity 100 kilograms - Manual Three-axis Combined Stage Manufacturer, for Sale, Exporter China,factory,manufacturer

Specification:

Product Specifications:

Model number	PT300-200
Surface size	200×300mm
Itinerary	200mm
Pitch	10mm
Repeatability positioning accuracy	±0.03mm
Diameter of the dividing head	20mm
Bottom length	433mm
Center horizontal load	100kg
Self-respect	16.5kg

Model number	PT-SD413
Surface size	320×200MM
Drive mode	Advanced precision screw drive
Lifting stroke	200mm
Adjustment amount	10μm(Reference)
Supporting	50kg
Self-respect	6.7kg
Materials	6061 hard aluminum
Surface treatment	Anodizing to black color

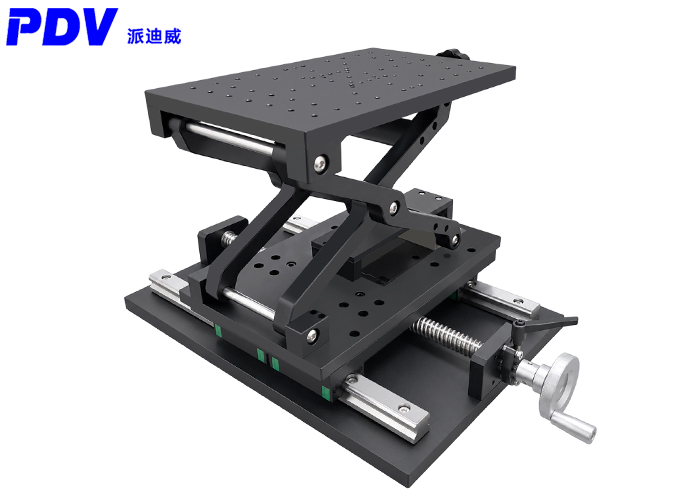

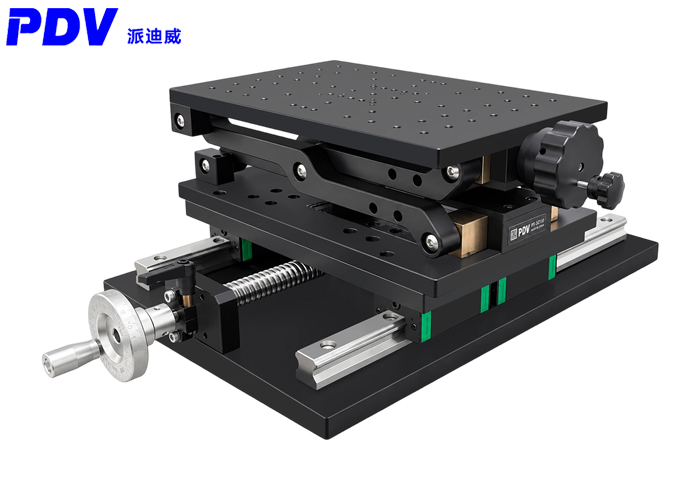

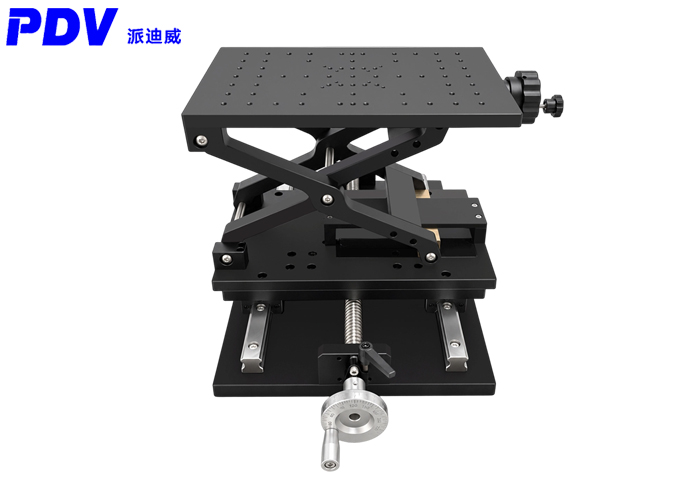

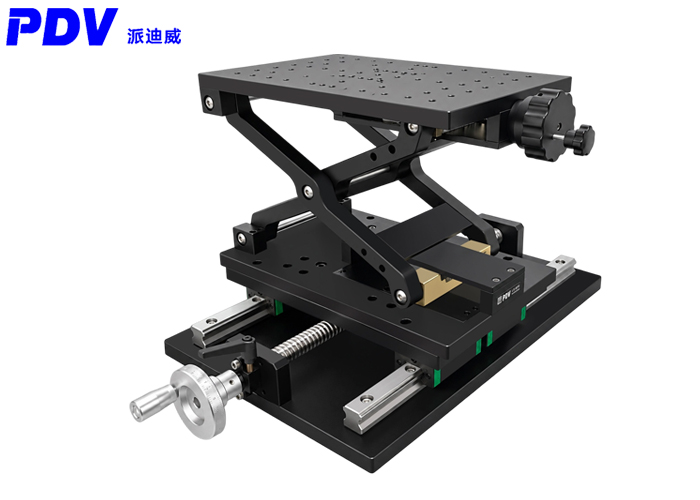

Product details:

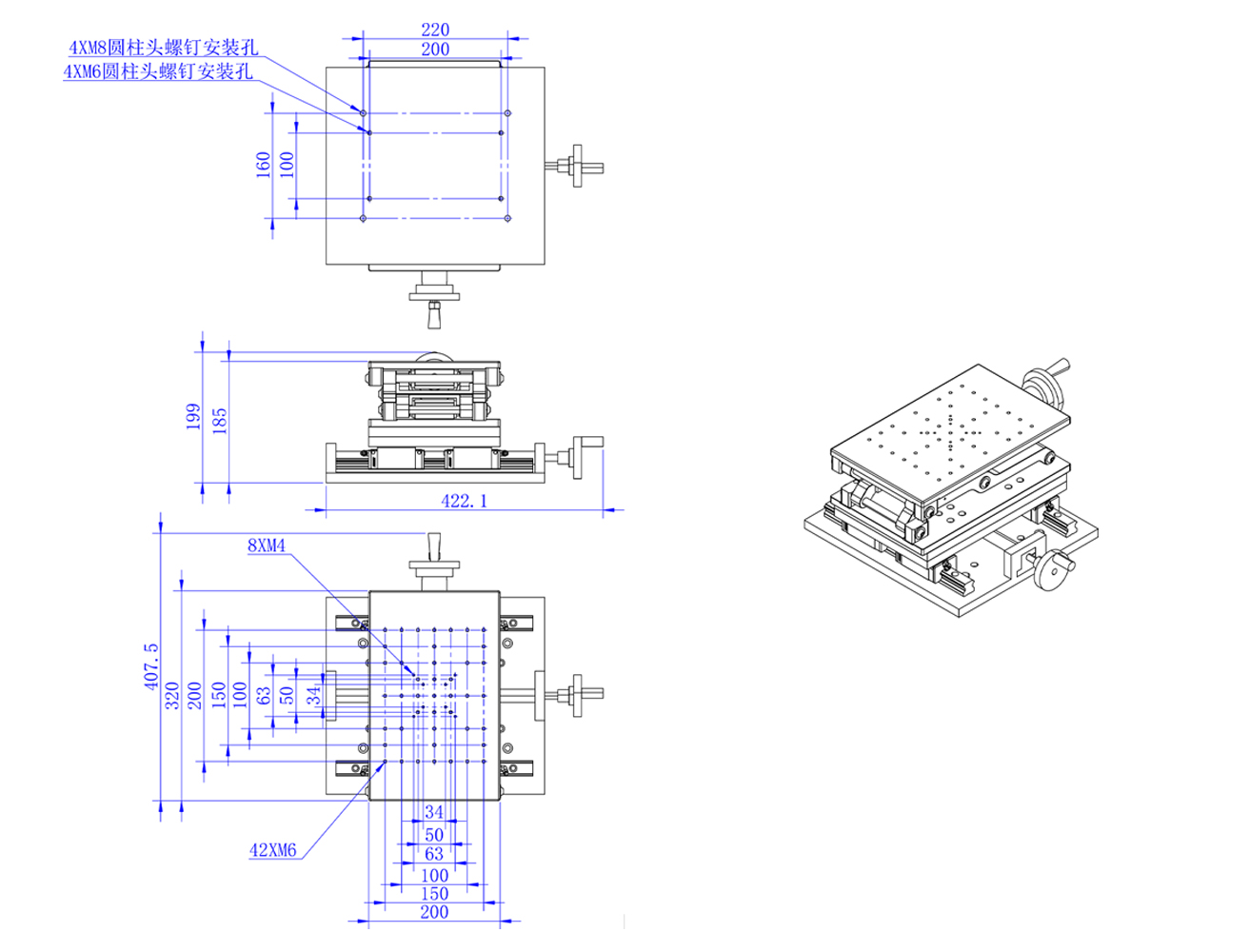

Product size:

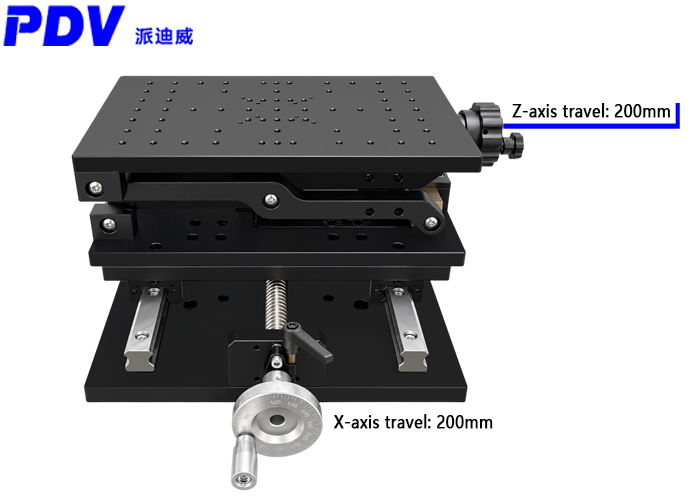

Manual XZ two-dimensional combined adjustment table, stroke 200mm, load capacity 100 kilograms

Service:

Manual XZ two-dimensional combined adjustment table, stroke 200mm, load capacity 100 kilograms

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
