Product Specifications:

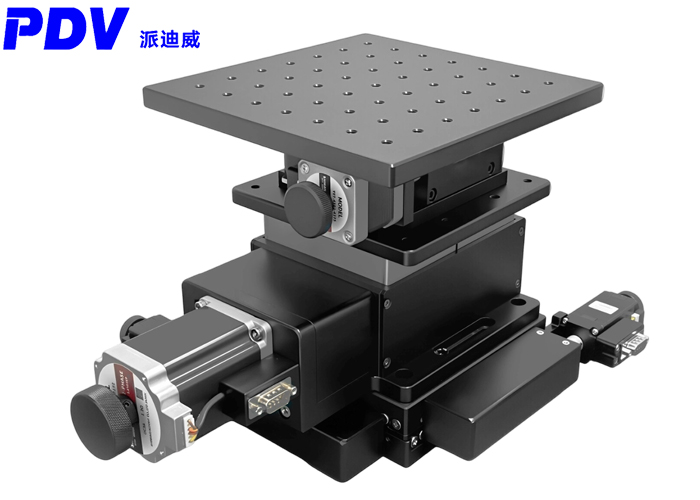

| PT-GD5210 | ||
| XY translation stage | ||

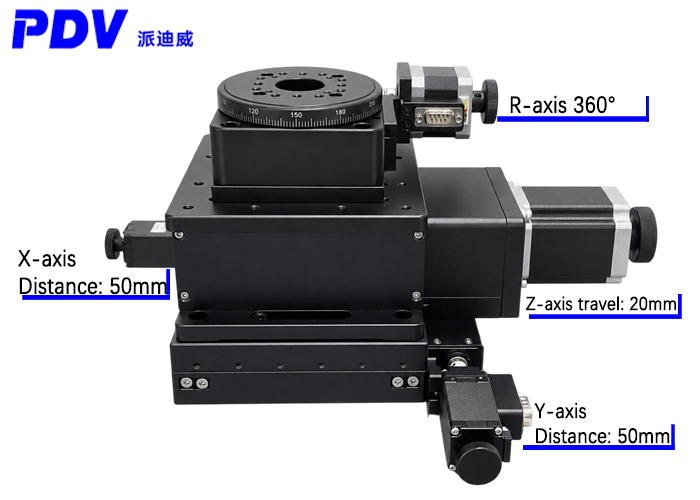

| Structural Description | X and Y axis travel | 50mm |
| Work surface size | 155x155mm | |
| Screw specification | High-grade screw pair | |
| Guide rail | Precision-level crossed roller guide rail | |
| Stepper motor (step angle) | Japanese Shinano 28 (1.8°) motor | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |
| Surface load (kg) | 10 | |
| weight(kg) | 3.2 | |
| Precision description | Resolution | 5μm(No segmentation) 0.625μm(8segmentation) |
| Speed | 6mm/sec | |
| Repeatability positioning accuracy | 8μm | |
| Positioning accuracy (optional with grating) | 10μm | |
| Straightness | 5μm | |
| Motion parallelism | 15μm | |
| Pitching | 50” | |
| Yawing | 25” | |
| Return gap | 2μm | |
| Step loss | 2μm | |
| Optional: Installation of grating scale (G) | ||
| Replaceable servo motor (D) | ||
| Lifting platform | ||
| Table surface size | 150x150 | |
| Rail form | Cross roller guide rail | |
| Drive mechanism | Precision ball screw (lead 4mm) | |
| Itinerary | 20mm | |
| Stepper motor (1.8°) | SST57D2121 | |
| Centering | 30Kg | |
| Adjustment amount | 7.5μ（No segmentation） 0.375（20 segmentation） | |
| Speed | 5mm/sec | |
| Repeatability of positioning accuracy | 10μ | |
| Vacation | 10μ | |
| Medical gait | 2u | |
| Weight | 4.7kg | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |

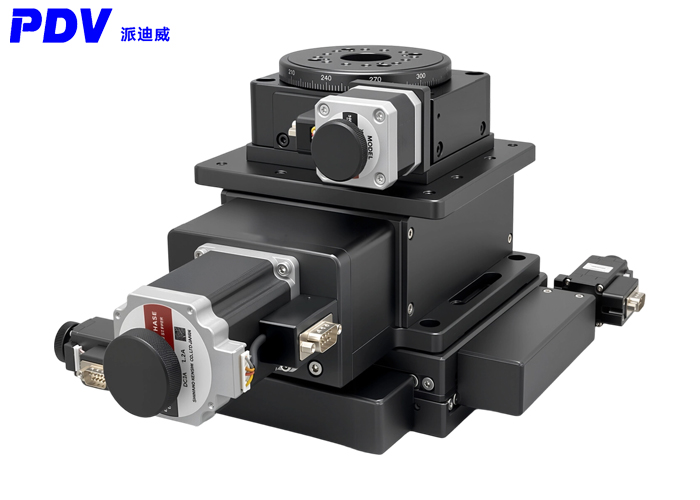

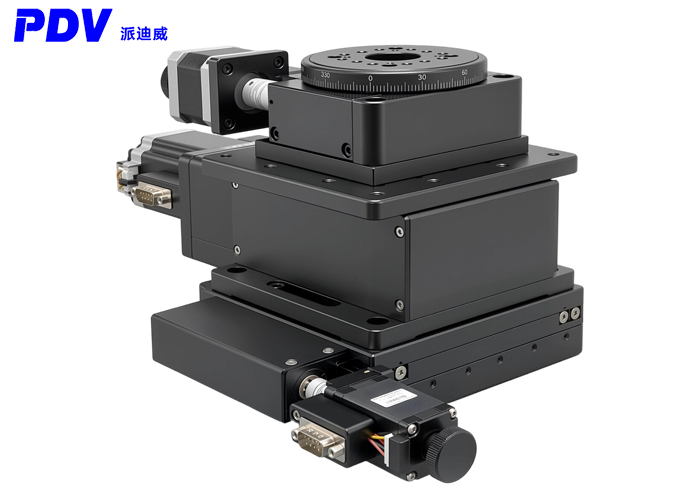

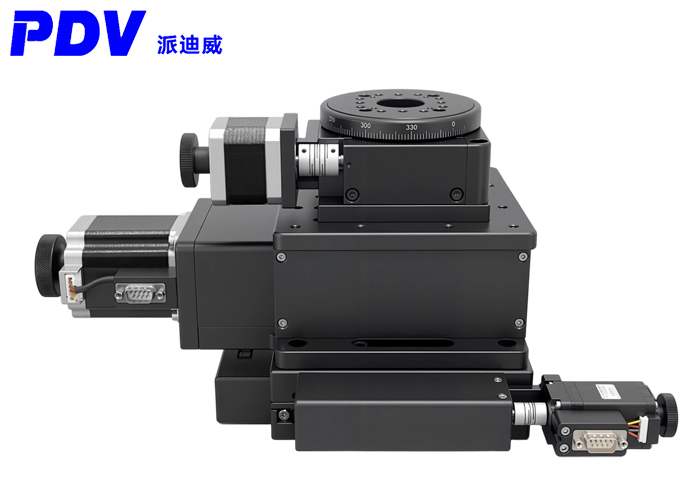

| Rotating table | ||
| Structural Description | Angle range | 360° |
| Table surface size | φ100mm | |
| Transmission ratio | 90:1 180:1 | |
| Drive mechanism | Worm gear and worm mechanism | |
| Rail form | Bearings | |
| Stepper motor (1.8°) | 42BYG | |
| Main material | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | |
| Centering | 45kg | |
| Weight | 1.75kg | |
| Precision description | Resolution | 0.01°(No segmentation) 0.0005°=1.8”(20segmentation) |
| Speed | 25°/sec | |
| Repeatability of positioning accuracy | 0.005°=18” | |
| Positioning accuracy (optional with grating) | 0.01°=36” | |
| End jump accuracy | 15μ | |
| Vacation | 0.005°=18″ | |
| Bias | 5μ | |
| Step out of line | 0.005°=18” | |
| Parallelism | 80μ | |
