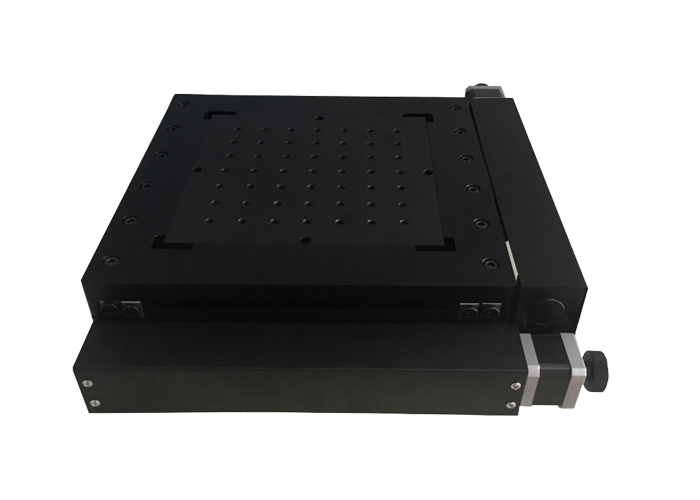

Product Name: PT-XY100 XY Motorized Microscope Stage

Share
Specification:


Model NumberPT-XY100
StructureTravel Range(mm)100mm
Platform(mm)300mm x 300mm
Screw Guide4
Travel GuidePrecise Crossed Roller Bearing
Stepper Motor42(1.8°)
MaterialAluminum Alloy
Surface PreparationBlack-Anodized
Load Capacity(Kg)50
Weight(Kg)8.3
  Accuracy   Resolution(μm)20(Non MS),  2.5(8 MS)
Max Velocity40mm/sec
Repeatability(μm)2
Absolute Accuracy(μm) 3
Straightness(μm)5
Moving Parallelism(μm) 15
Pitching50"
Yawing25"
Backlash(μm)2
Lost Motion(μm)2
AccessoryInstalling Grating Ruler (Optional)
Reloading Servo Motor (Optional)



PT-XY100 XY Motorized Microscope Stage


Product details:
Advantage:

New construction ,new technology;the key index has up to the international level of the similar products by strictly inspection .This series products are used to laser precision processing,three dimensional scanning measurement system and so on .

Best-selling products

PDV offers high precision electric platform, high precision manual platform, optical plate, microscope bracket, long working distance objective, microscope lighting source, optical bench products for laboratory light path building.

we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.


Service:
PT-XY100 XY Motorized Microscope Stage
  • PT-XY100 XY Motorized Microscope Stage
  • PT-XY100 XY Motorized Microscope Stage
  • PT-XY100 XY Motorized Microscope Stage
  • PT-XY100 XY Motorized Microscope Stage
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
PT-XY100 XY Motorized Microscope Stage
PT-XY100 XY Motorized Microscope Stage
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
