First, product parameters:
| Model | PT-XY200 | PT-XY300 | |
| Structural description | X,Y axis travel | 200 mm | 300 mm |
| Countertop size | 400×400mm | 500×500mm | |
| Screw specification | High-precision ball screw (lead 5mm) | High-precision ball screw (lead 5mm) | |
| Guide rail | Crossed roller guide rail | Crossed roller guide rail | |
| Stepper motor (1.8° | STP-42D3016 | STP-42D3016 | |
| Main materials | Aluminum alloy | Aluminum alloy | |
| Surface treatment | Anodizing turns black | Anodizing turns black | |
| Countertop load-bearing | 50 kg (no speed requirement) | 50 kg (no speed requirement) | |
| Weight | 15kg | 15kg | |
| Precision description | Resolution | 20μ (unsubdivided) 1μ (20 subdivisions) | 20μ (unsubdivided) 1μ (20 subdivisions) |
| Maximum speed | 20mm /sec (no-load) | 20mm /sec (no-load) | |
| Repeat positioning accuracy | ±3μ | ±5μ | |
| Absolute positioning accuracy | ±5μ | ±8μ | |
| Straightness | ±15μ | ±20μ | |
| Motion parallelism | ±25μ | ±30μ | |
| Pitch | 50″ | 60″ | |
| Sway sideways | 25″ | 30″ | |
| Return clearance | 2μ | 3μ | |
| Lost step | 2μ | 3μ | |
| A grating ruler (G) can be added. | |||
| Replaceable servo motor (D) | |||
Second, product features:
※ Standard stepper motor and RS232 interface, the company's self-developed motion controller can realize automatic control;
※ Small and thin structure, suitable for use in light load, low speed, and scientific experiments; High quality fine grinding screw drive, small lead, the same fine fraction can achieve high resolution;
※ Ingenious design of empty return nut structure can reduce the clearance of grinding lead screw pair to a minimum;
※ Precision square guide rail, comfortable movement, with the function of lateral adjustment of guide preload and clearance, can be used in multiple dimensions;
※ The ground plate and reasonable guide rail fixing method greatly reduce the pitch and deflection of the station, so that the straightness and parallelism of the movement are greatly improved.

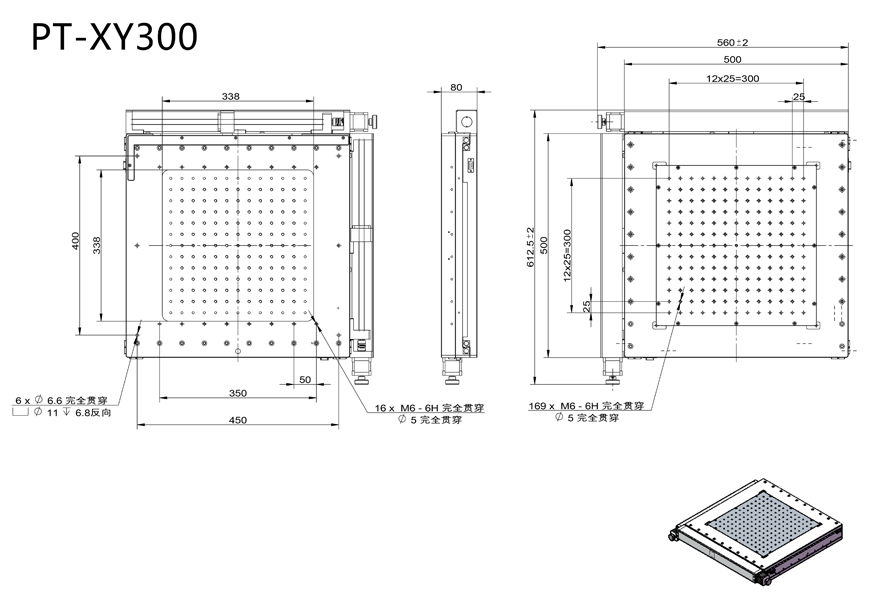

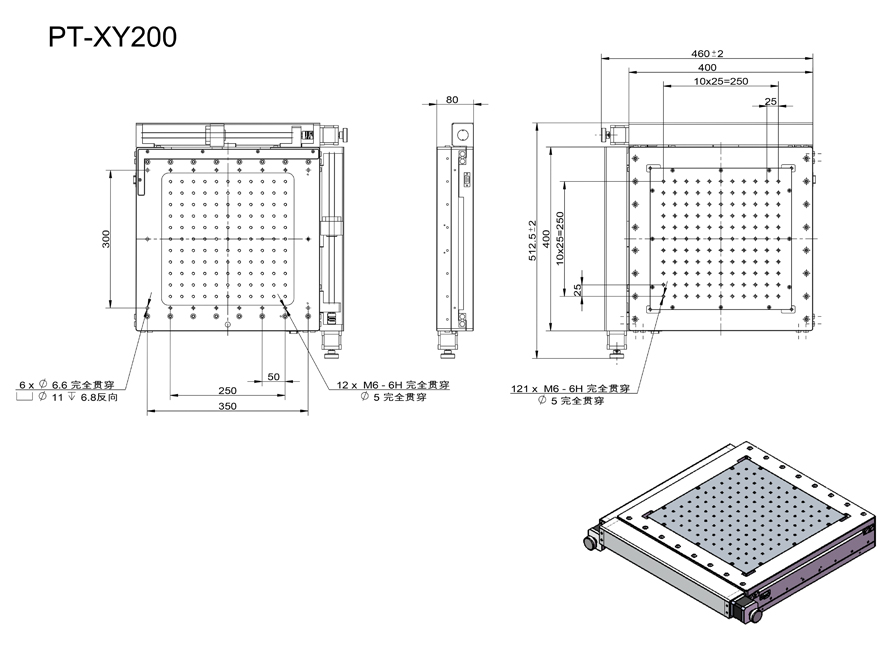

Third, product dimensions:
Four, motor parameters and wiring definition:
| Motor type | 42 step motor |
| Phase number | 2 |
| Step Angle | 1.8° |
| Current (A) | 1.5 |
| Static torque (kg.cm) | 3.2 |
| appearance | Both ends of the shaft, front shaft length 24mm, back end shaft length 10mm |
| The translation table has zero and finite bits | |
| DB9 | definition |
| 1 | Power supply positive (+5V- +24V) |
| 2 | Far limit (negative limit) (NPN type) |
| 3 | Near end limit (positive limit) (NPN type) |
| 4 | GND |
| 5 | Origin signal output (NPN type) |
| 6 | Positive end of moving A-phase winding (A+) |
| 7 | Positive end of moving A-phase winding (A-) |
| 8 | Positive end of moving B-phase winding (B+) |
| 9 | Positive end of moving B-phase winding (B-) |
