Product Specifications:
| Model number | IX73 uses an electric XY platform |
| Travel (mm) | X100Y50 |
| Table size (mm) | 160*110 |
| Drive mechanism | Ball screw |
| Stepper motor | 28 Stepper Motor |
| Centering and grounding | 10KG |
| Resolution | 1μm |
| Speed | 5mm/sec |
| Repeatability of positioning accuracy | ±2μm |
| Guide rail | Raster scale closed-loop control |
| Materials | Aluminum alloy |
| Surface treatment | Anodizing to achieve blackening effect |
| Self-respect | 5.25KG |

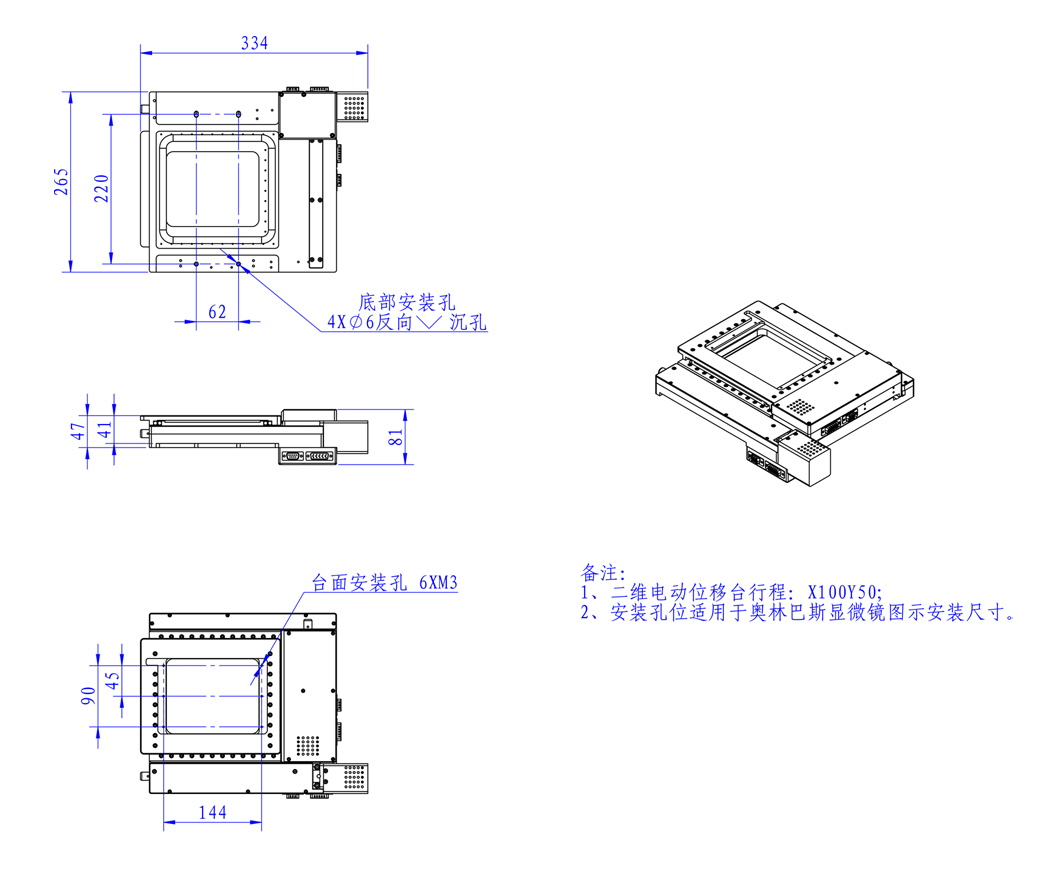

Product size:
