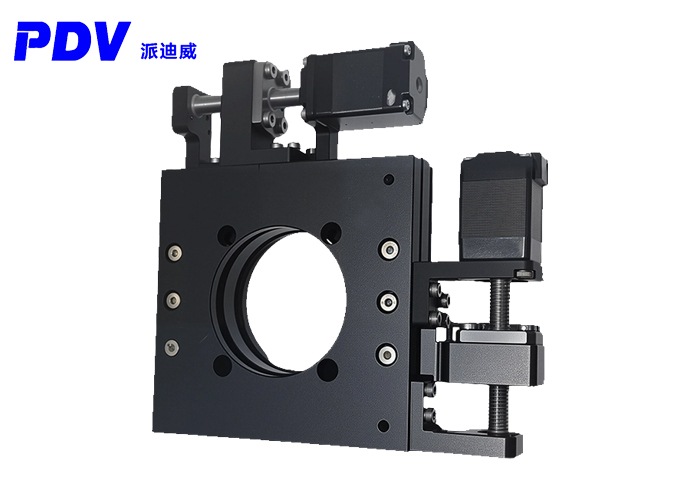

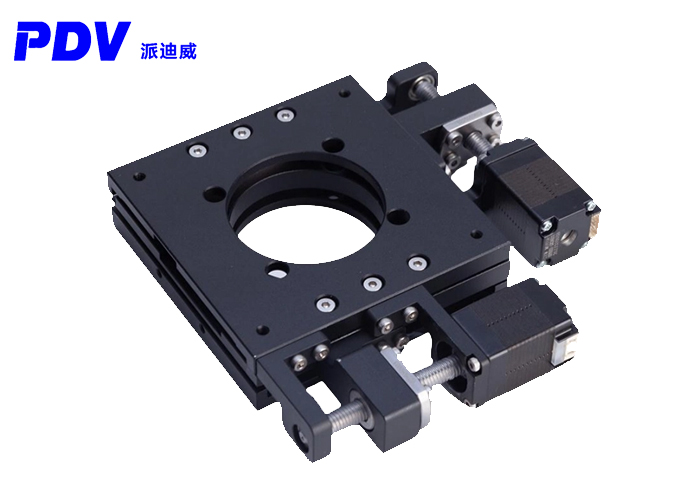

Product Specifications:
| Model number | PT-XY20 | |
| Mechanical specifications | Itinerary | X-axis：±10mmY-axis：±10mm |
| Table surface size | 84mm×85mm | |
| Center opening size | 45mm | |
| Transmission mechanism / Pitch | Precision ball screw / 1mm | |
| Guide rail (Guiding mechanism) | Cross roller guide rail | |
| Main material and surface treatment | Aluminum alloy, black | |
| Self-weight | 0.4Kg | |
| Precision specification | Resolution (Full step/ Half step) | 5/2.5μm |
| Resolution at 20 subdivisions | 0.25μm | |
| Maximum speed* | 10mm/s | |
| Repeatability positioning accuracy | ≤±2μm | |
| Return gap | ≤3μm | |
| Static parallelism | ≤0.1mm | |
| Motion straightness | ≤20μm | |
| Motion parallelism | ≤30μm | |
| Orthogonal error | ≤30μm | |
| Electrical specifications | Motor | 0.6A |
| Motor torque retention | 0.018N.m | |
| Slide table connection cable length | 0.4m | |
| Limit sensor (built-in), per axis | 1 unit(NPN) | |
| Origin sensor (built-in), per axis | 1 unit(NPN) | |
| Load | Horizontal load | 2Kg |
| *Note: The maximum speed is calculated based on the theoretical speed of 600 revolutions per minute for the stepper motor and the actual test results, under no-load conditions. | ||
| Model | PT-XY40 | |
| Mechanical specifications | Travel (mm) | X-axis: 40 Y-axis: 40 |
| Table size (mm) | 115X125 | |
| Center opening size (mm) | 45X55 | |
| Light transmission size at extreme travel (mm) | 35X47 | |
| Transmission mechanism | Precision ball screw，Φ8X2 | |
| Guide rail (guiding mechanism) | Cross roller guide rail | |
| Main material and surface treatment | Aluminum alloy, black | |
| Coupling (outer diameter - hole diameter 1 - hole diameter 2) (mm) | 16-5-5 | |
| Self-weight (Kg) | 2.2 | |
| Precision specification | Resolution (Full Step/Semi-Step, um) | 10/5 |
| Resolution at 20 subdivisions (um) | 0. 5 | |
| Maximum speed (mm/s)* | 20 | |
| Repeatability positioning accuracy (um) | ≤±10 | |
| Return gap (um) | ≤3 | |
| Static parallelism (mm) | ≤0.1 | |
| Motion straightness (um) | ≤20 | |
| Motion parallelism (um) | ≤50 | |
| Orthogonal error (um) | ≤30 | |
| Electrical specifications | Working current (A) | 1 |
| Motor holding torque (N.m) | 0.06 | |
| Slide stage connector cable length (m) | 0.5 | |
| Origin sensor (built-in), per axis | 1 unitQE11SN25ANO (NPN) | |
| Sensor power supply voltage (V) | DC5~24V | |
| Control output | Open-circuit collector output of NPN transistor: DC 5 - 24V, 8mA or less; Residual voltage below 0.3V (when the load current is 2mA) | |
| Output logic | During detection (with shading): The output transistor is turned on. | |
| Load | Horizontal load (Kg) | 4 |
| *Note: The maximum speed is calculated based on the theoretical speed of 600 revolutions per minute for the stepper motor under no-load conditions, and is also verified by actual test results. | ||

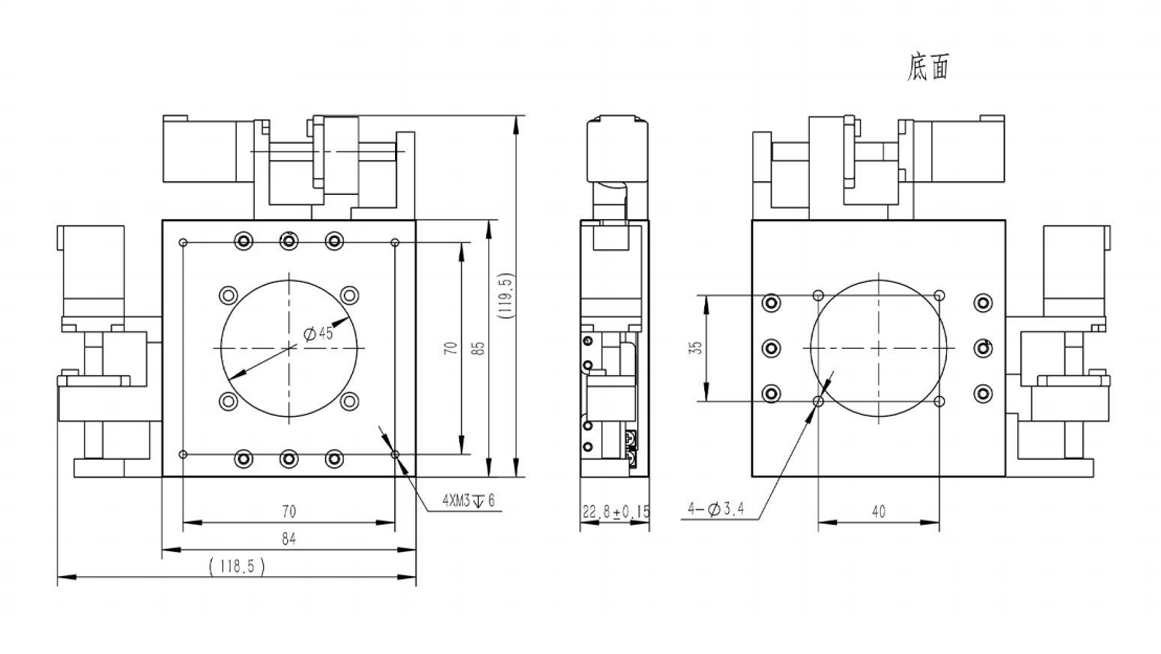

Product size:
