Product Specifications:
| Model number | PT-15XY60 | PT-12XY60 |
| Travel length (mm) | X-axis: 60 Y-axis: 60 | X-axis: 60 Y-axis: 60 |
| Table surface size (mm) | 150×150 | 120×120 |
| Center opening size (mm) Transmission mechanism | 80×80 | 60×60 |
| Transmission mechanism | Grinding the lead screw，Φ8×2 | Grinding the lead screw，Φ6×1 |
| Guide rail (guiding mechanism) | Cross roller guide rail | Cross roller guide rail |
| Main materials and surface treatment | Aluminum alloy, black oxide, sandblasted finish | Aluminum alloy, black oxide, sandblasted finish |
| Self-weight (kg) | 2.4 | 1 |
| Resolution (Full Step/Semi-Step, μm) | 10/5 | 10/5 |
| Resolution at 20 subdivisions (μm) | 0.5 | 0.5 |
| Maximum speed (mm/s) * | 20 | 10 |
| Repeatability positioning accuracy (μm) | ≤±5 | ≤±5 |
| Reversal clearance (μm) | ≤6 | ≤6 |
| Static parallelism (mm) | ≤0.1 | —— |
| Linear motion accuracy (μm/100mm) | ≤20 | ≤20 |
| Parallel motion accuracy (μm/100mm) | ≤30 | ≤10 |
| Orthogonal error (μm) | —— | ≤30 |
| Working current (A) | 1 | 0.6 |
| Motor holding torque (mN.m) | 60 | 18 |
| Horizontal load (Kg) | 2 | 0.5 |

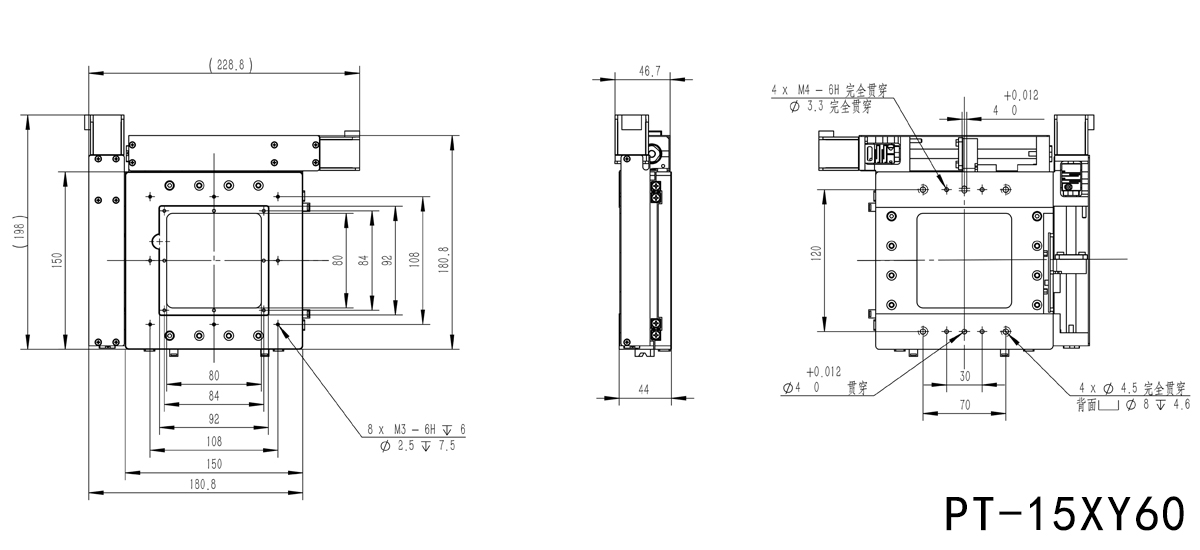

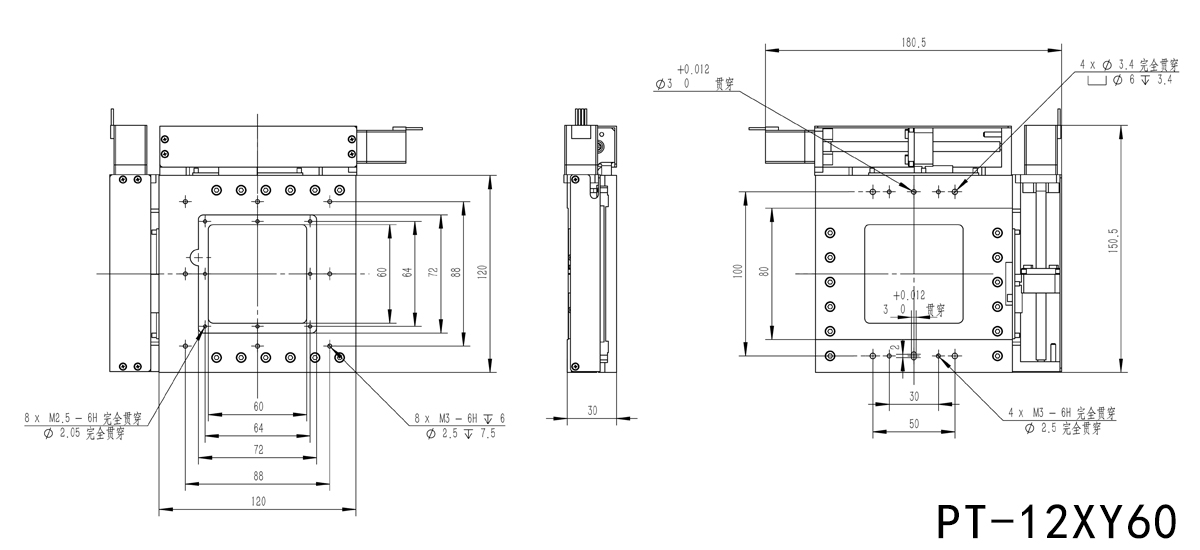

Product size:
