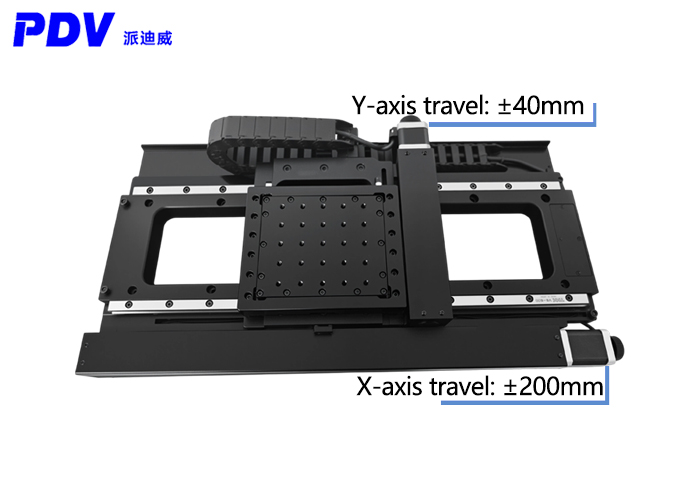

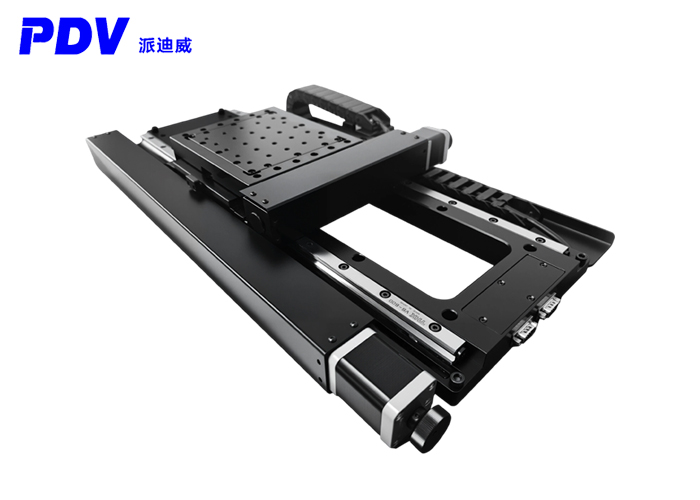

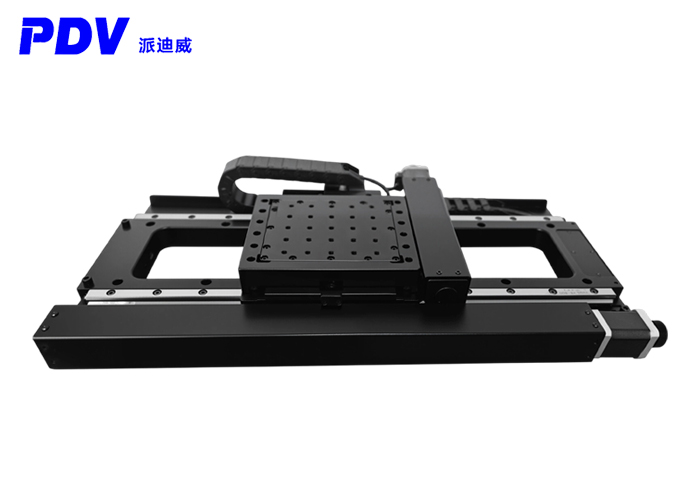

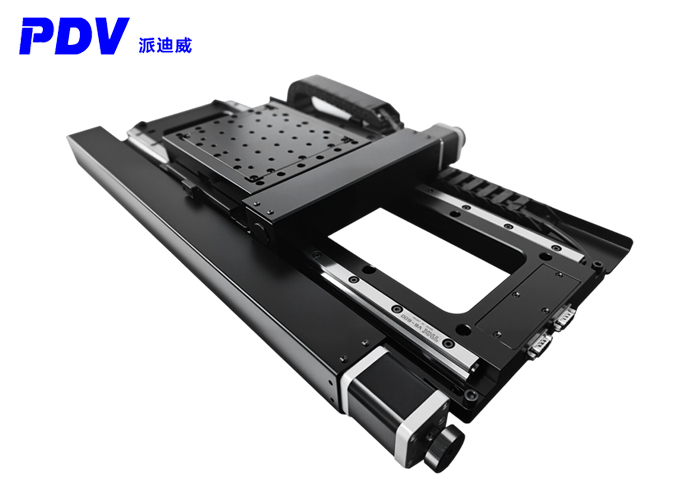

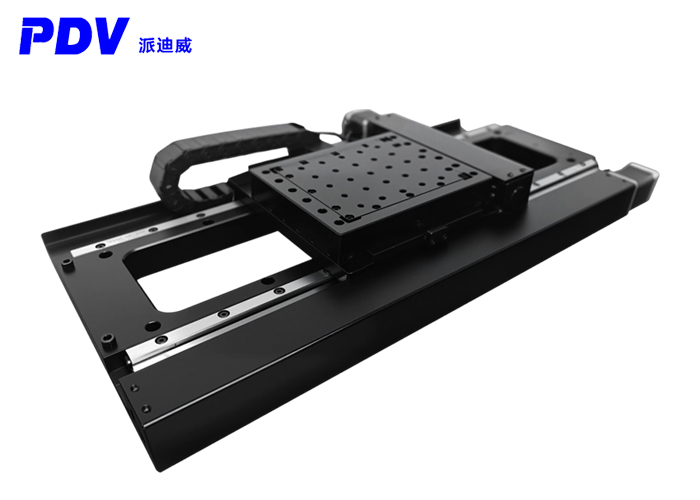

Product Specifications:
| Product model | PT-XY2004 | ||
| Structural Description | X and Y axis parameters | X-axis parameter | Y-axis parameter |
| Itinerary | ±200mm | ±40mm | |
| Work surface size | 150×125mm | ||
| Screw specification | Self-manufactured screw rod pair | High-precision ball screw (lead 5 mm) | |
| Guide rail | Advanced cross-roller guide rail | Cross roller guide rail | |
| Stepper motor (step angle) | Domestic ordinary 42-volt motor | STP-42D3016 | |
| Main material | Aluminum alloy | ||
| Surface treatment | Anodizing to black color | ||
| Carrying capacity (kg) | For quantities up to 1kg | ||
| Weight (kg) | 3.2kg | 15kg | |
| Precision description | Processing rate | 5μm(No subcategories),0.625μm (8subcategories） | 20μ(No subcategories),1μ (20subcategories） |
| Speed | per second100mm | ||
| Accuracy | ±0.01mmWithin | ||
| Straightness | 5μm | ±15μ | |
| Motion parallelism | 15μm | ±25μ | |
| Pitch | 50" | 50" | |
| Bump | 25" | 25" | |
| Reversal clearance | 2μm | 2μm | |
| Step loss | 2μm | 2μm | |
| The width of the drag chain is 55mm. There are no reserved installation holes at the bottom (it can be directly installed on the displacement platform). | |||

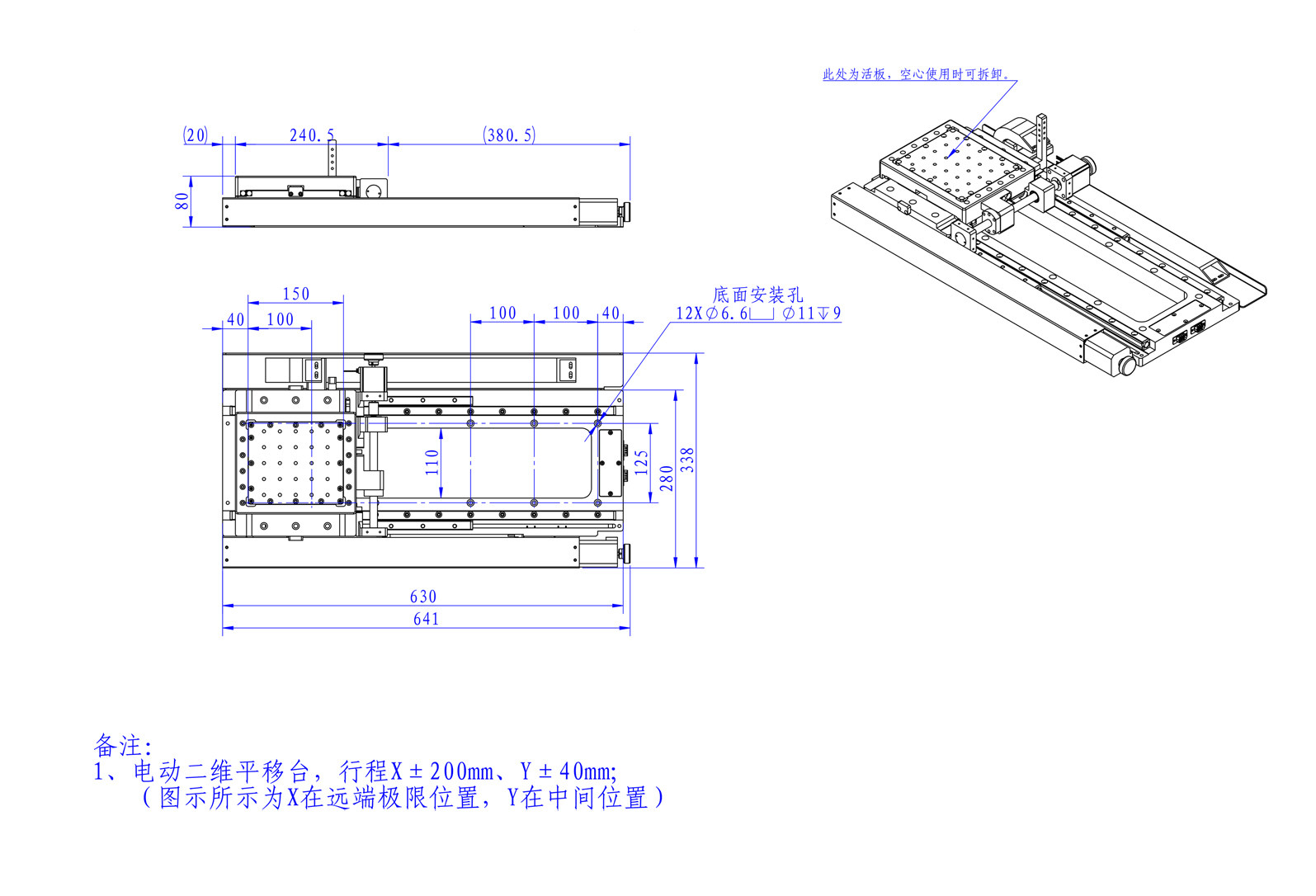

Product size:
