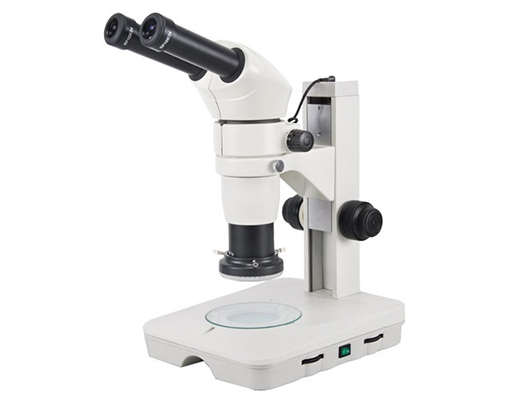

A binocular stereoscopic microscope is a type of microscope that provides stereoscopic vision through binocular observation. The large field continuous zoom stereoscopic microscope sold by PDV has a wide range of applications. It can produce an upright three-dimensional spatial image when observing objects, with strong stereoscopic sense, clear and wide imaging, and has a long working distance. It can achieve continuous magnification viewing of the same object, and can choose reflected and transmitted lighting according to different observed samples.
Performance advantages of binocular stereomicroscope:
1. The optical components are coated with special film layers, achieving high-quality optical images;
2. Forming a flat image surface and a positive image with good contrast in a large field of view, especially in the peripheral field of view where the image quality is brighter and clearer;
3. Using a continuous zoom objective of 0.7X-4.5X (6.3:1), with a standard magnification of 7X-45X. (Optional auxiliary objective, with a magnification of 14X-180X);
4. The effective standard working distance reaches 100mm, with an optional auxiliary objective lens, the working distance will be extended to 26 mm-287mm, creating sufficient space for use;
5. The observation head is tilted at 45 ° and the binocular vision is adjustable, ensuring that users with different vision can obtain clear and satisfactory images;
6. Ergonomically designed structure with excellent eye height, ensuring long-lasting use without fatigue;
7. The zoom handwheel is horizontally (axially) set on both sides, making operation convenient and comfortable, and the zoom repetition accuracy is high;
8. Equipped with multiple attachments to expand application areas.
The binocular stereoscopic microscope has reliable performance, simple operation, convenient use, and beautiful appearance. It can not only be used for teaching demonstrations, biological dissection, and observation analysis, but also for the assembly and inspection of electronic and precision mechanical industry parts, as well as seed inspection in agriculture due to its high resolution and wide field of view clarity.
