Auxiliary products for optical path height measurement, so that it can be quickly and firmly installed or disassembled on the optical platform, the base of this product is equipped with M6 fixing screw holes, the position can be fixed on the optical platform after selection.

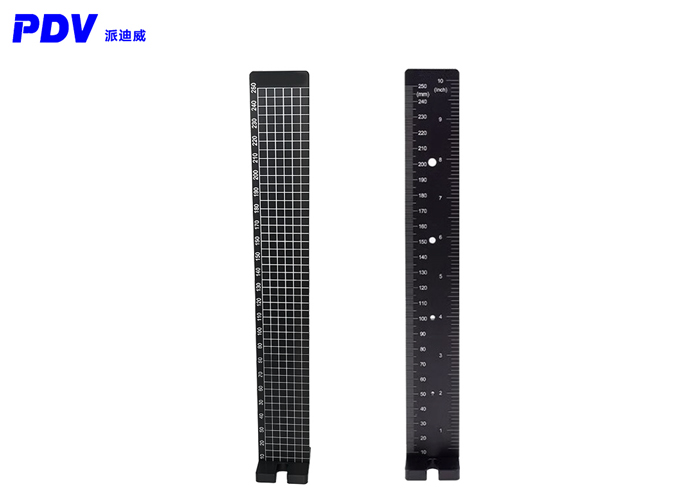

PT-GD60311 is an auxiliary product for optical path height measurement, with 5X5mm grid marking on both sides.
The bottom is equipped with magnetic steel sheet, so that it can be quickly and firmly installed or disassembled on the optical platform, the base of this product is equipped with M6 fixing screw holes, after the location is selected, it can be fixed on the optical platform; The base can be removed. After the base is removed, an M4 6.5mm deep screw hole is exposed.
Grid line height gauge parameters:
Model | PT-GD60311 |
Overall dimension | 260mm high, 35mm wide |
Floor thickness | 7mm |
Notching | 5X5mmgridlines |
Be self-possessed | 0.14kg |
Model | PT-GD60312 |
Overall dimension | 260mm high, 35mm wide |
Floor thickness | 7mm |
Staff | Metric Min line 1mm/ inch Min line 0.1" |
Be self-possessed | 0.14kg |
Grid line height gauge size:
PT-GD60301 is a support frame that can transfer the height ruler to 90° laterally. Two height gauges can be used together to 90°, and there is an M6 thread hole at the bottom. You can change the direction of the locking screws according to the need, or you can support a height ruler laterally with the support rod.
Height gauge transfer bracket:
Model | PT-GD60301 |
specification | Switch the two height gauges 90° |
Bottom thread | M6 threaded hole |
Height gauge adapter bracket size:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
