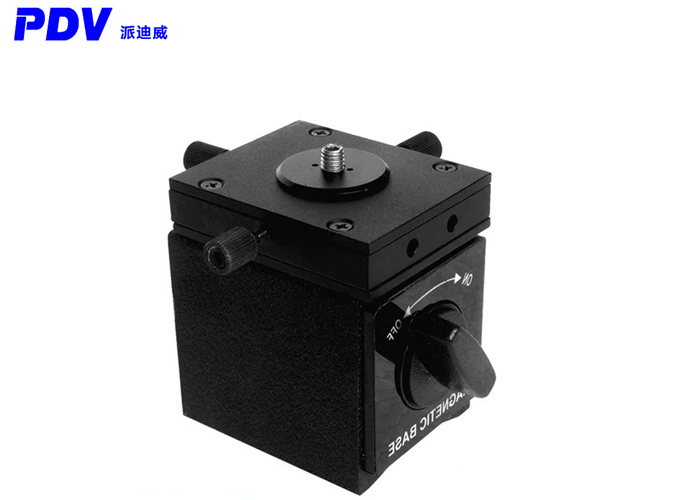

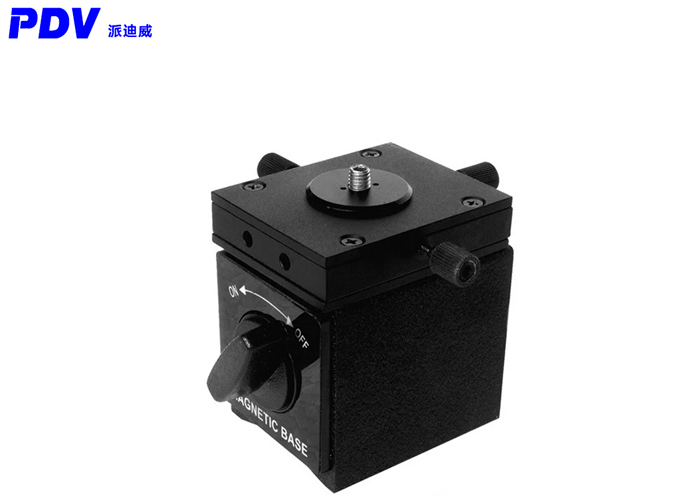

Product features
There are permanent magnets inside the magnetic base. The ingenious structural design can instantly turn the magnetic force on and off or gradually increase the magnetic force from zero to the maximum
Optical platforms or other ferromagnetic platforms can be fixed with a magnetic base, which is not restricted by the position of the fixing holes
The magnetic force is instantly on and off, and it is convenient to remove
There is a two-dimensional translation fine-tuning at the top and it can be locked.
It can be combined with a rotating rod frame or a lifting rod frame to achieve three-dimensional adjustment.
Product parameters: Unit: mm
| Model | PT-CZ11 |
| Two-dimensional adjustment range | Tx、Ty:±2 |
| Central load | 3kg |
| Adsorption force | 60kg |
| Self-respect | 1.1kg |

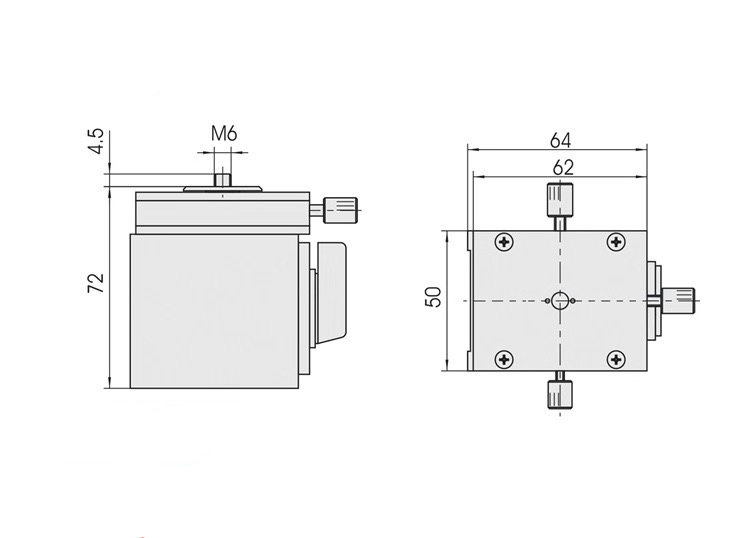

Product size：
