Model Number | PT-SD87 |
Product Name | Z-axis Translation Installation Seat |
Installing Lens | Ø1 inch or 25mm optical element |
Axial Direction | Z-Axis |
Bore Diameter | Ø25.7mm |
Hole Depth | 9mm |
Material | #7075 Aluminum Alloy |
Net Weight | 95g |
Z-axis Translation Installation Seat PT-SD87
Product Features
1. Can install optical components with a maximum thickness of 0.28 inches (7.1mm) Ø inches.
2. Precision micrometer driver with ruler translation at 1 μ M is the graduation, with a maximum adjustable stroke of 1.2mm (0.047 inches);
3. The SM1 thread (1.035 "-40) of the installation hole is compatible with the SM1 thread lens sleeve, and a snap ring adapter is used to install the objective lens;
4. The translation installation seat provides repeatable Z-axis travel within a 30mm cage system.
Product size chart
With scale brake knob at 1 μ M is the index, and the 6mm through-hole is compatible with M6 cage rods.

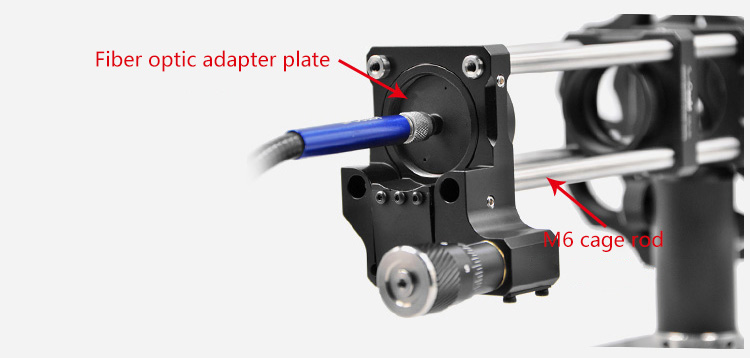

The installation of optical fibers is completed using a fiber optic adapter disc, and PT-SD87 can be used for translation compensation of focusing errors in applications, or for applications that require precise adjustment along the optical axis. It can be applied to spatial filtering systems.
