Product Specifications:
| Product model | PT-SD1450 | PT-SD14100 | PT-SD14150 | PT-SD14200 | PT-SD14300 | PT-SD14400 | PT-SD14500 |
| Distance (mm) | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
| Table surface size | 120×120mm | 120×120mm | 120×120mm | 120×120mm | 120×120mm | 120×120mm | 120×120mm |
| Screw specification | Precision ball screw (lead 4mm) | Ball screw (lead 5mm) | |||||
| Guide rail | Precision linear slide rail | ||||||
| Main materials | Aluminum alloy | ||||||
| The surface of the material | Anodizing to achieve blackening effect | ||||||
| Center load of the surface | 30kg | 50kg | |||||
| Platform self-weight | 2.8kg | 3.4kg | 4.5kg | 5.2kg | 6.3kg | 7.2kg | 8.3kg |
| 8 sub-resolution divisions | 2.5μm | 3.125μm | |||||
| Speed | 20mm/sec | 40mm/sec | 50mm/sec | ||||
| Repeatability positioning accuracy | 5μm | ||||||
| Straightness | 5μm | 6μm | 8μm | ||||
| Motion parallelism | 10μm | 15μm | 20μm | ||||
| Pitch | 25" | 50" | 60" | ||||
| Bump | 20" | 25" | 30" | ||||
| Backlash | 2μm | ||||||

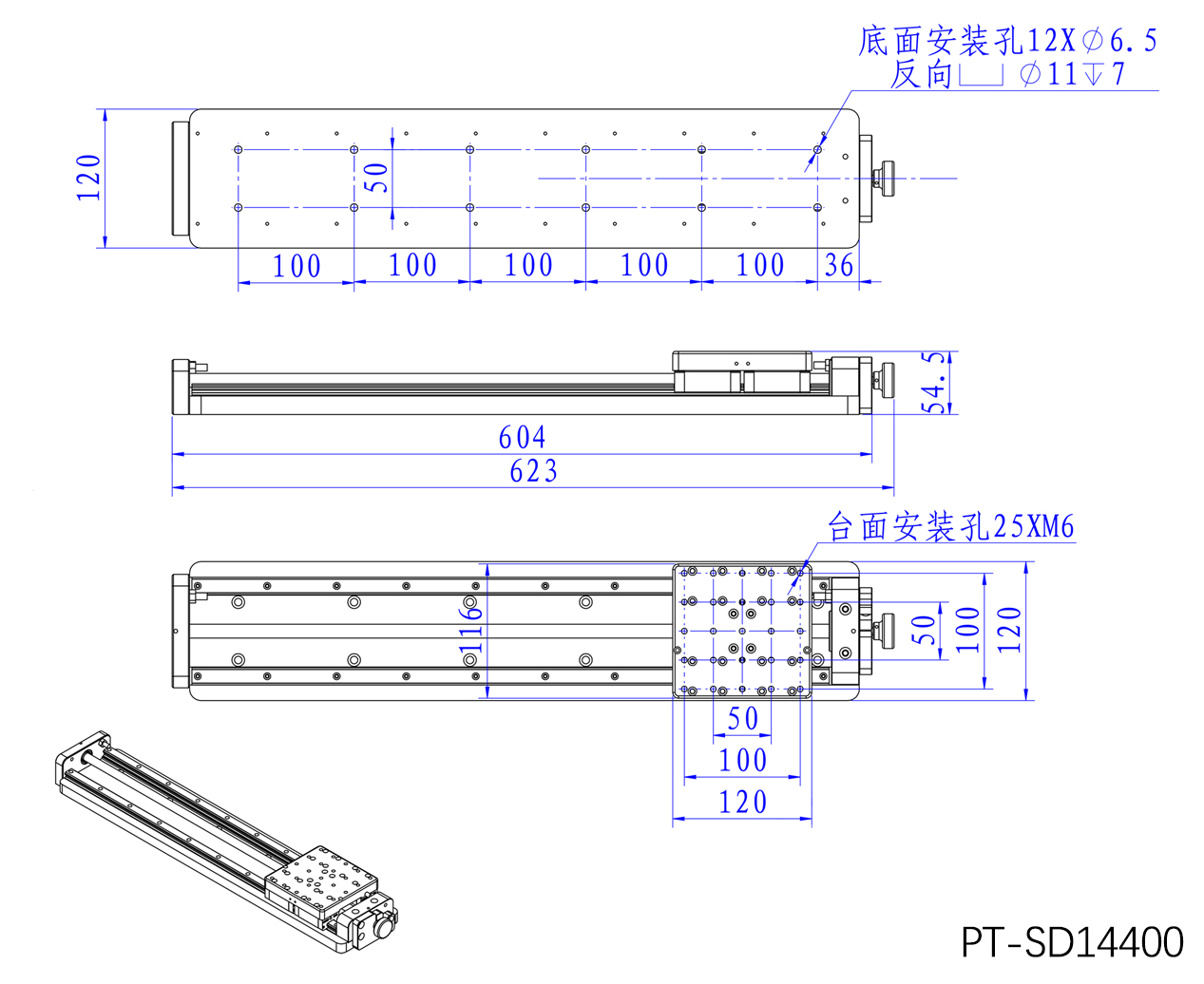

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
