Model | PT-ST25Graduated | PT-ST50Graduated | PT-ST100Graduated | PT-ST200 | PT-ST300 | PT-ST400 | PT-ST500 |
Plarform Size | 65x65mm | 65x65mm | 80x80mm | 80x80mm | 80x80mm | 80x80mm | 80x80mm |
Trip | 25mm | 50mm | 100mm | 200mm | 300 | 400 | 500 |
Screw pitch | 1.25mm | 1.25mm | 3mm | 3mm | 3mm | 3mm | 3mm |
Bearing | 15KG | 20KG | 20KG | 20KG | 20kg | 20kg | 20kg |
Dead weight | 0.8KG | 1kg | 1.8kg | 2.8kg | 3kg | 4kg | 5kg |
Material surface treatment | 6061 Aluminum alloy - black or anodized | ||||||
High Quality Manual translation table X-axis displacement Platform

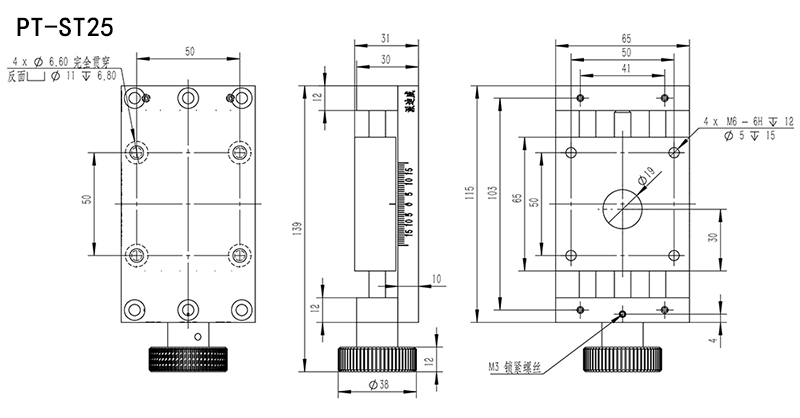

Product dimension drawing:
Our company has CNC, high-precision surface grinder and other equipment with ultra-high precision processing ability to ensure product quality.
We are good at listening to customers' needs and providing high quality products and services.
We are committed to becoming a pioneer in the field of displacement control. PDV not only provides standard displacement tables with full coverage of travel, but also is good at providing personalized customized products.
We have successfully delivered many sets of precision displacement platforms to domestic top scientific research institutions. We also have experience in providing high-quality displacement control platforms for special environments such as vacuum conditions.
In the years of market experience, we carefully evaluate every consultation, every product is delivered through close testing.
We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
