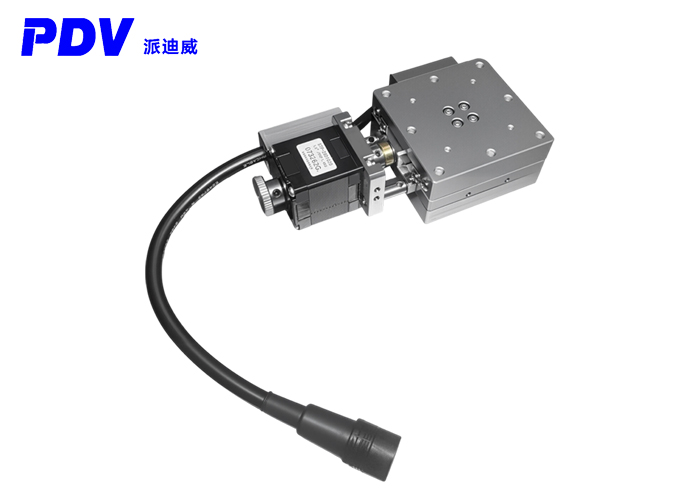

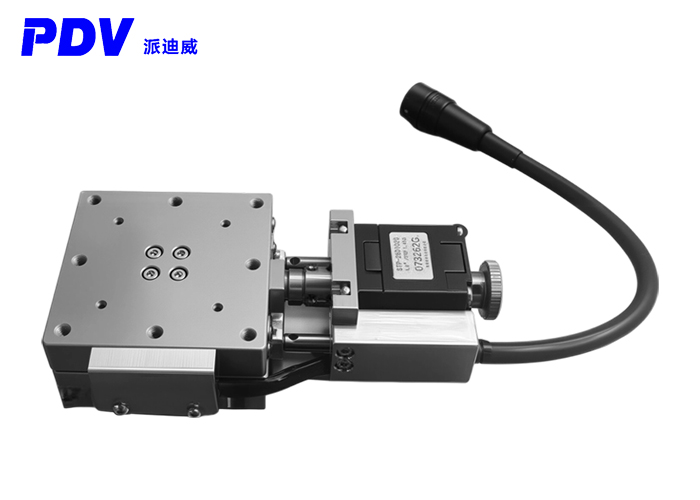

Product parameters;
| Product model | PT-KXL6010 | PT-KXL6015 | |
| Structure Description | Table surface size | 60*60mm | 60*60mm |
| Moving stroke | 10mm | 15mm | |
| Transmission method | Ball screw with diameter of φ6, guide rail of 1mm | ||
| Guide rail | Linear ball-guided system | ||
| Slide table material / surface treatment | Stainless steel with electroless nickel plating treatment | ||
| Weight | 0.7kg | 0.7kg | |
| Motor type | 2-phase stepper motor | ||
| Precision Description | Resolution: Full step / Half step | 5μm/2.5μm | |
| Maximum speed | 10mm/s | ||
| Single-point positioning accuracy | 10μm | ||
| Repeatability positioning accuracy | ±2μm | ||
| Horizontal load | 12kgf | ||
| Idling | 2.5μm | ||
| Parallelism | 20μm | ||
| Motion parallelism | 10μm | ||

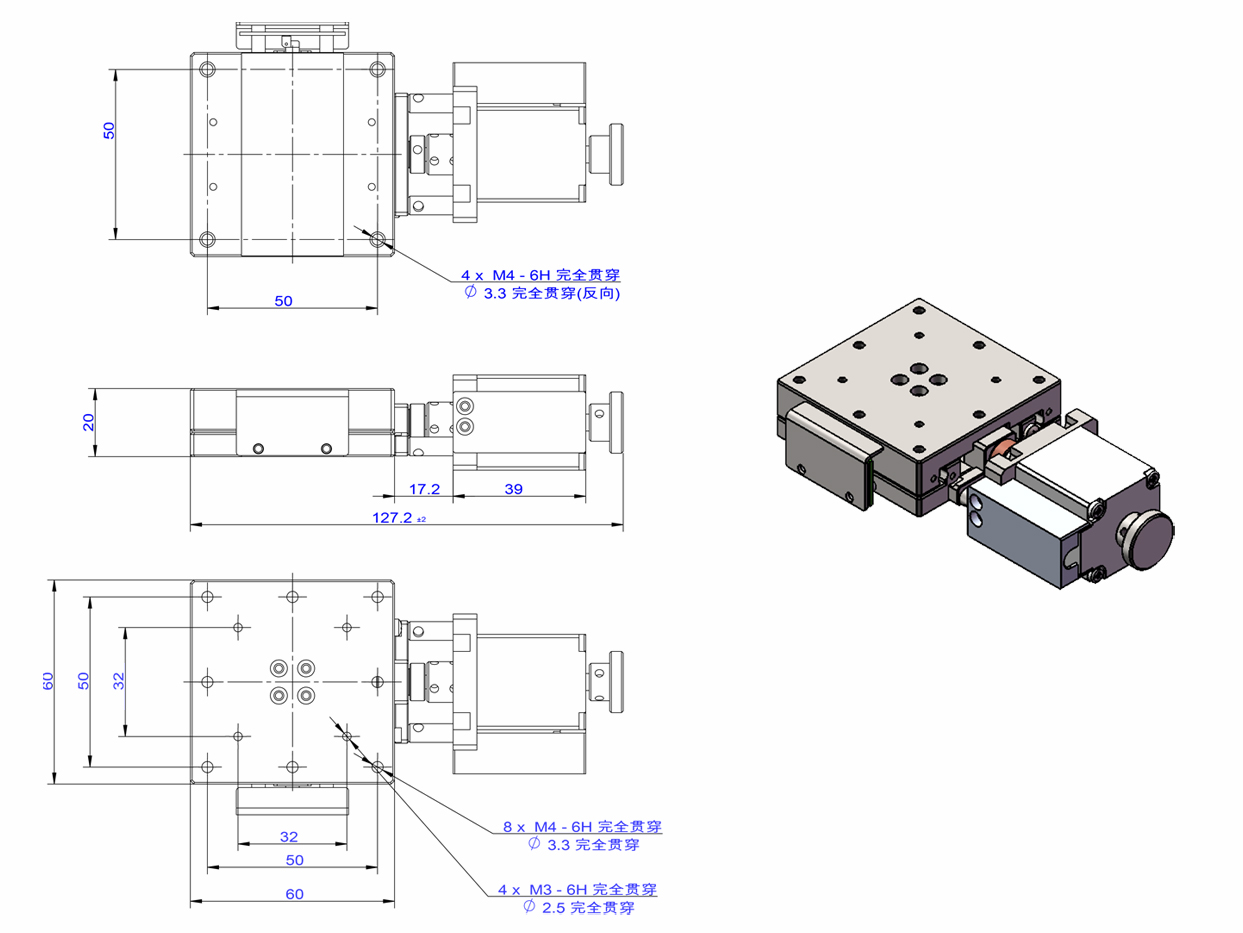

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
