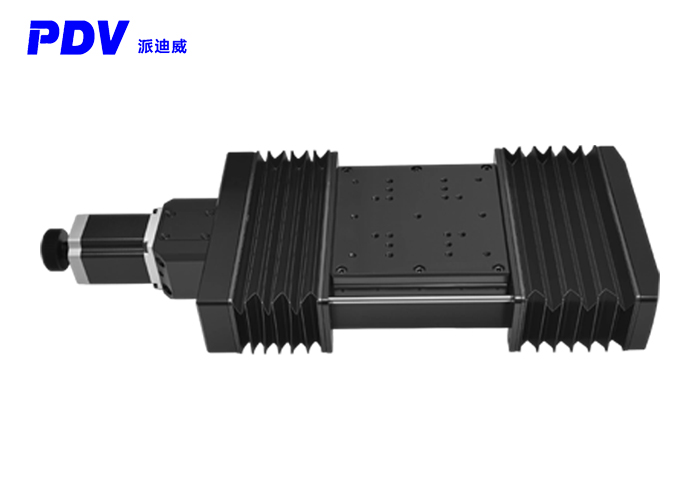

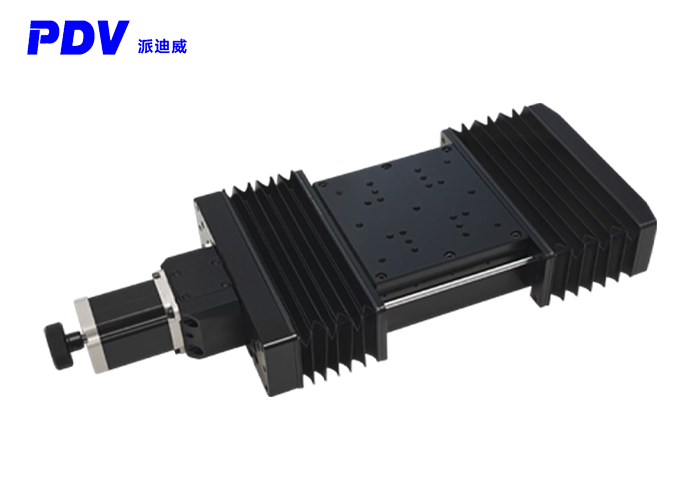

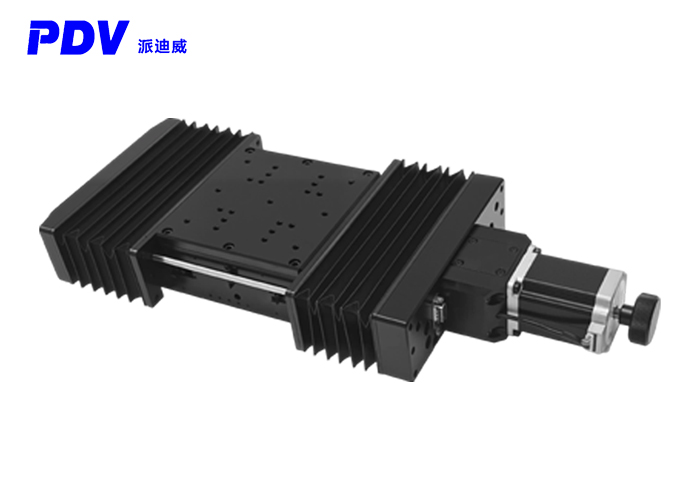

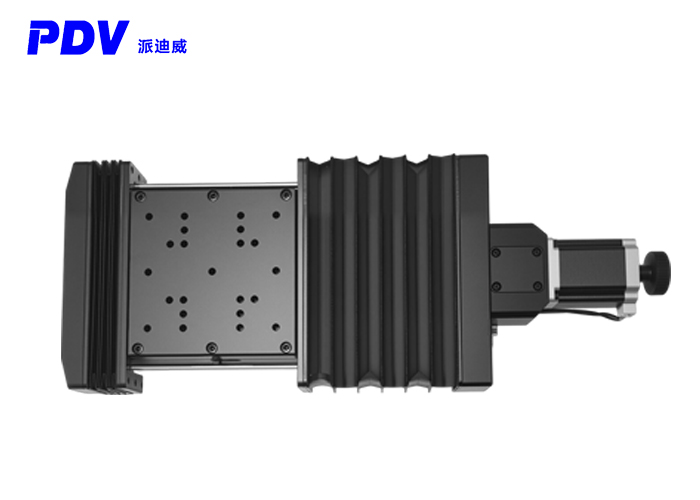

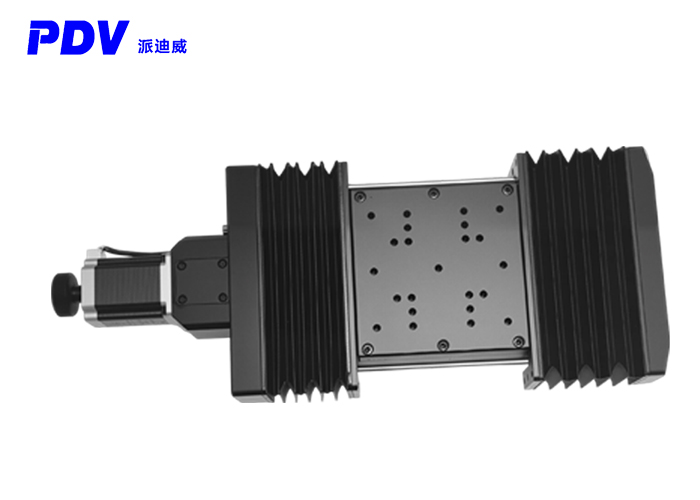

Product features: (The precision description column in the table represents electrical performance parameters)
1、It adopts ball screw transmission and linear slider guide rails, featuring high load capacity and good rigidity. It is suitable for industrial processing, laboratories or places that require long-term continuous operation under high load
2、The high-precision ball screw drive ensures excellent repeat positioning accuracy and absolute positioning accuracy, with small axial clearance and long service life. The translation stage itself is equipped with a dust cover
3、The travel of the translation stage can be customized according to customer requirements
4 、Optional servo motor can be installed and a grating ruler can be added for closed-loop control
Product parameters：
| Product model | PT-GD150-100(dust guard) | |
| Structural parameters | Itinerary | 100mm |
| Countertop size | 150×150mm | |
| Screw gauge | High-precision ball screw (lead 5mm) | |
| Guide rail | High-precision linear slider guide rails | |
| Stepper motor (1.8° | STP-57D3016 | |
| Main materials | Aluminum alloy/stainless steel | |
| Surface treatment | Anodizing turns black | |
| Countertop load | 20kg | |
| Weight | 3.4kg | |
| Precision parameter | Distribution rate | 20μ(No subdivision) 1μ(20subdivision) |
| Speed | 40mm/sec | |
| Repeat positioning accuracy | 1μ | |
| Positioning accuracy (optional grating) | 3μ | |
| Straightness | 3μ | |
| Motion parallelism | 10μ | |
| Pitch | 25” | |
| Sway sideways | 20” | |
| Return clearance | 2μ | |
| Step-dropping exercise | 1μ | |
| Attachment description | A power-off braking function can be added（Z） | |
| A grating ruler can be added（G） | ||
| The servo motor can be reinstalled(D) | ||
| A dust cover can be added（F） | ||

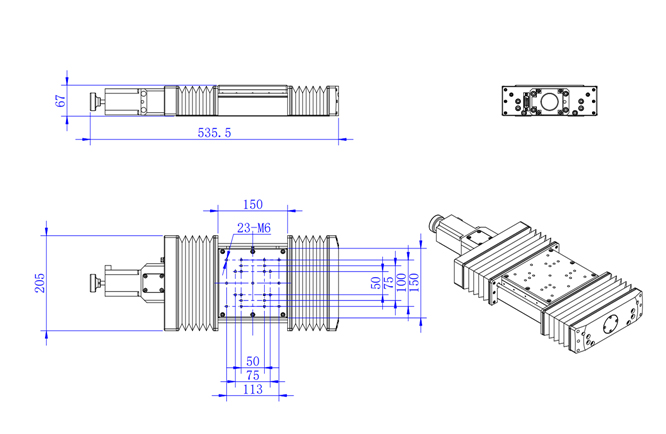

Product size：
We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
