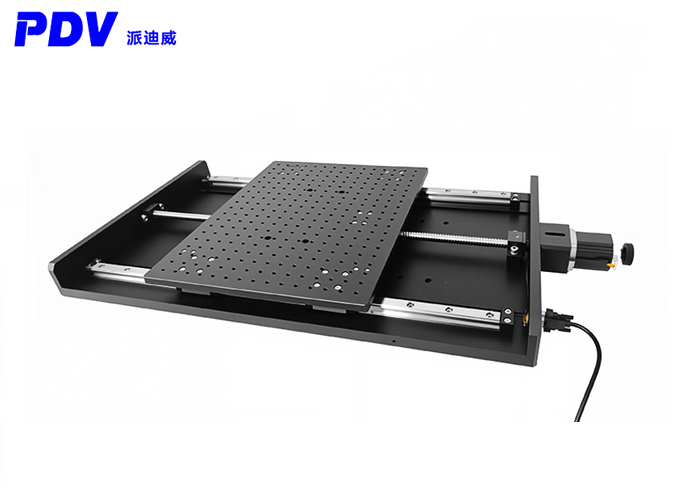

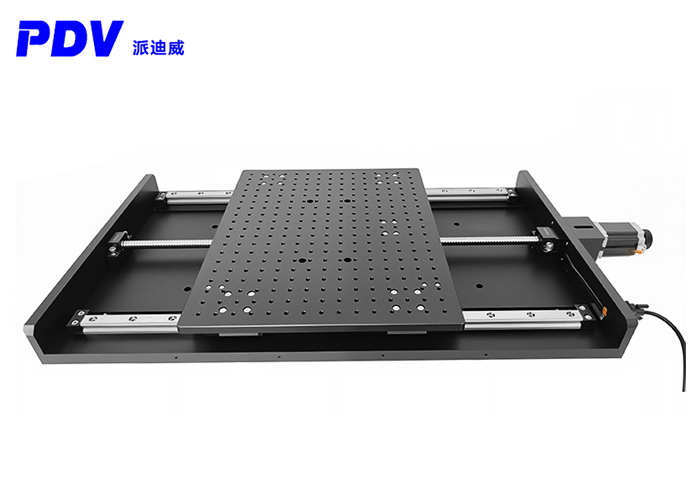

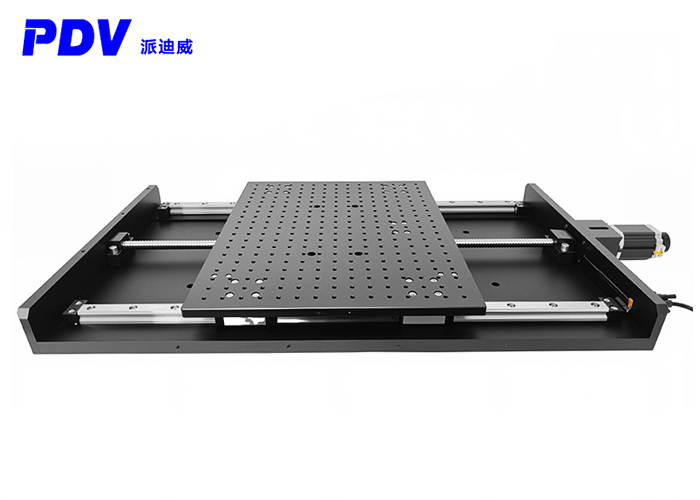

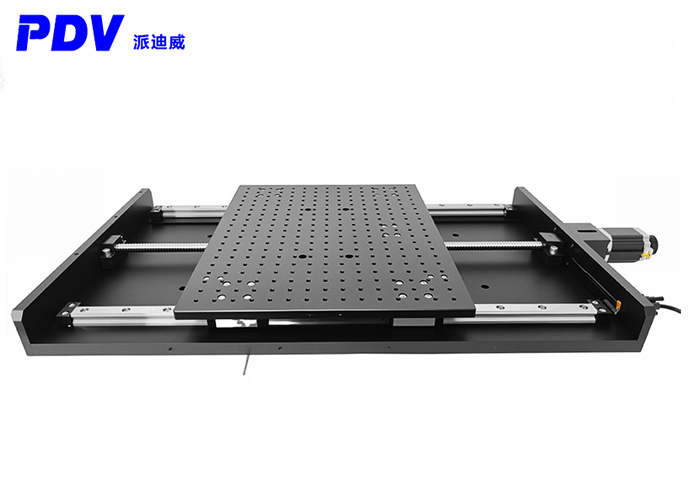

Product parameters
| Model | PT-GD500(400) | |
| Structural parameters | Itinerary | 400mm |
| Countertop size | 500×400mm | |
| Screw gauge | Ball screw (lead 5mm） | |
| Guide rail | Precision linear slider guide rail | |
| Stepper motor (step Angle | 57 (1.8 °) | |
| Main materials | Aluminum alloy | |
| Surface treatment | Anodizing turns black | |
| Center load of the countertop | 60kg | |
| Platform self-respect | 30kg | |
| Precision parameter | 8. Subdivide the handling rate | 3.125μm |
| Speed | 50mm/sec | |
| Repeat positioning accuracy | 10μm | |
| Positioning accuracy (Optional grating parameters) | 12μm | |
| Straightness | 8μm | |
| Motion parallelism | 20μm | |
| Pitch | 60'' | |
| Sway sideways | 30'' | |
| Return clearance | 2μm | |
| Step-dropping exercise | 5μm | |

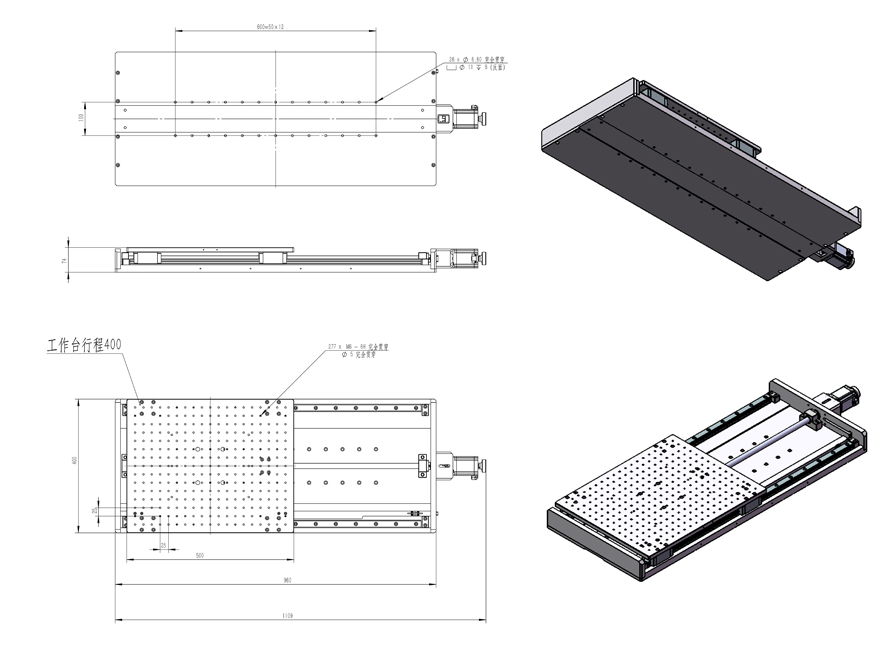

Product size:
