Product parameters:
| Model | PT-GD200(300) | |
| Structural parameters | Itinerary | 300mm |
| Countertop size | 200×200mm | |
| Screw gauge | Precision ball screw (lead 4mm) | |
| Guide rail | Precision linear slider guide rail | |
| Stepper motor (step Angle | 57 (1.8 °) | |
| Main materials | Aluminum alloy | |
| Surface treatment | Anodizing turns black | |
| Center load of the countertop | 45kg | |
| Platform self-respect | 12kg | |
| Precision parameter | 8. Subdivide the handling rate | 2.5μm |
| Speed | 40mm/sec | |
| Repeat positioning accuracy | 5μm | |
| Positioning accuracy (Optional grating parameters) | 8μm | |
| Straightness | 6μm | |
| Motion parallelism | 15μm | |
| Pitch | 50'' | |
| Sway sideways | 25'' | |
| Return clearance | 2μm | |
| Step-dropping exercise | 5μm | |

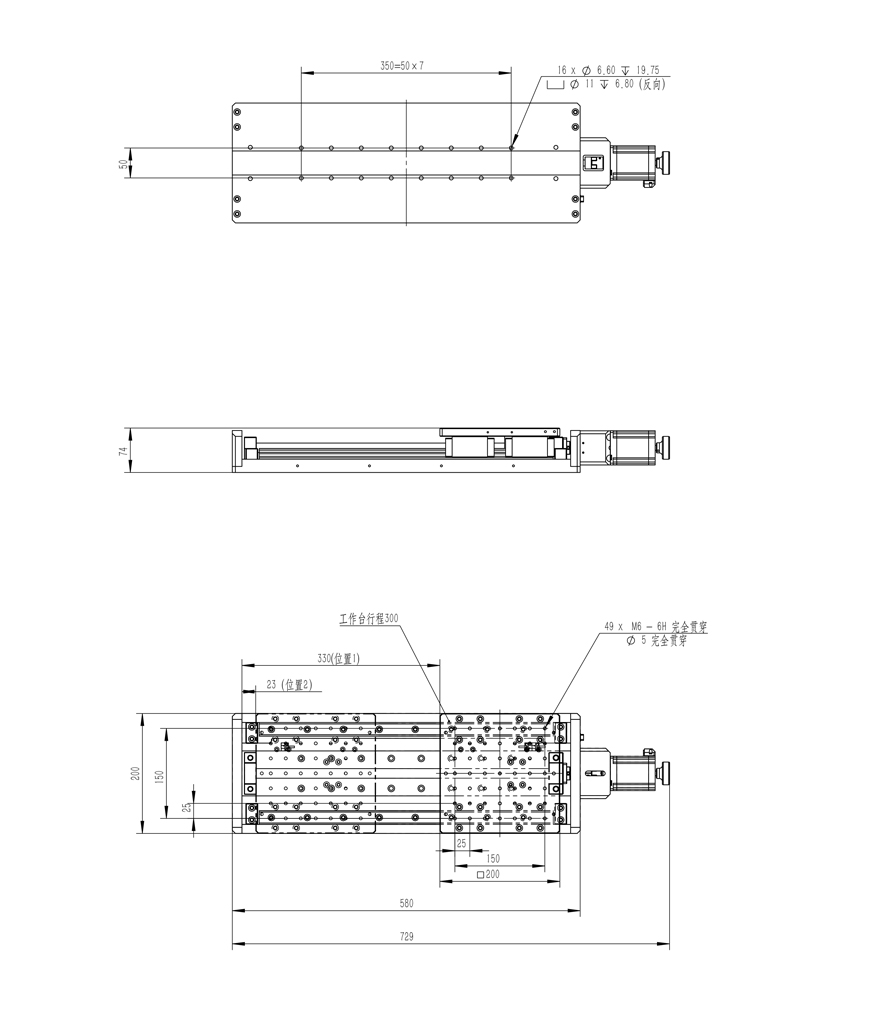

Product size:
