The precision description column in the table represents electrical performance parameters
Product parameters:
| Model | PT-GD100(20) | PT-GD100(50) | |
| Structural parameters | Itinerary | 20mm | 50mm |
| Table surface size | 100×112mm | 100×112mm | |
| Screw gauge | Precision ball screw (lead 2mm) | Precision ball screw (lead 2mm) | |
| Guide rail | Precision linear slide rail | Precision linear slide rail | |
| Stepper motor (step angle) | 35(1.8°) | 35(1.8°) | |
| Main material | Aluminum alloy | Aluminum alloy | |
| Surface treatment | Anodizing to achieve blackening effect | Anodizing to achieve blackening effect | |
| Center load of the countertop | 30kg | 30kg | |
| Platform self-weight | 2kg | 2kg | |
| Precision parameters | 8 sub-process division rate | 2.5μm | 2.5μm |
| Speed | 20mm/sec | 20mm/sec | |
| Repeatability positioning accuracy | 5μm | 5μm | |
| Positioning accuracy (with optional grating parameters) | 8μm | 8μm | |
| Straightness | 5μm | 5μm | |
| Motion parallelism | 10μm | 10μm | |
| Pitch | 25'' | 25'' | |
| Bump | 20'' | 20'' | |
| Reversal clearance | 2μm | 2μm | |
| Lost-step motion | 3μm | 3μm | |

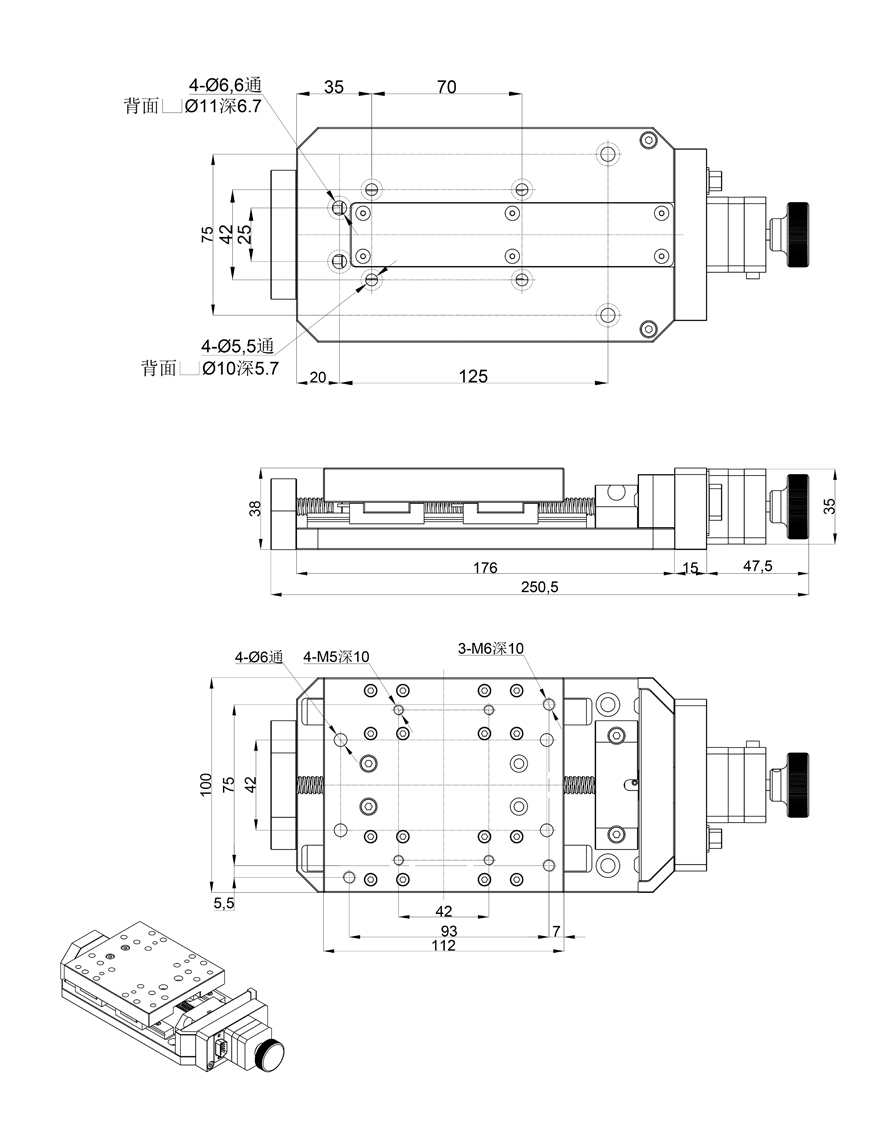

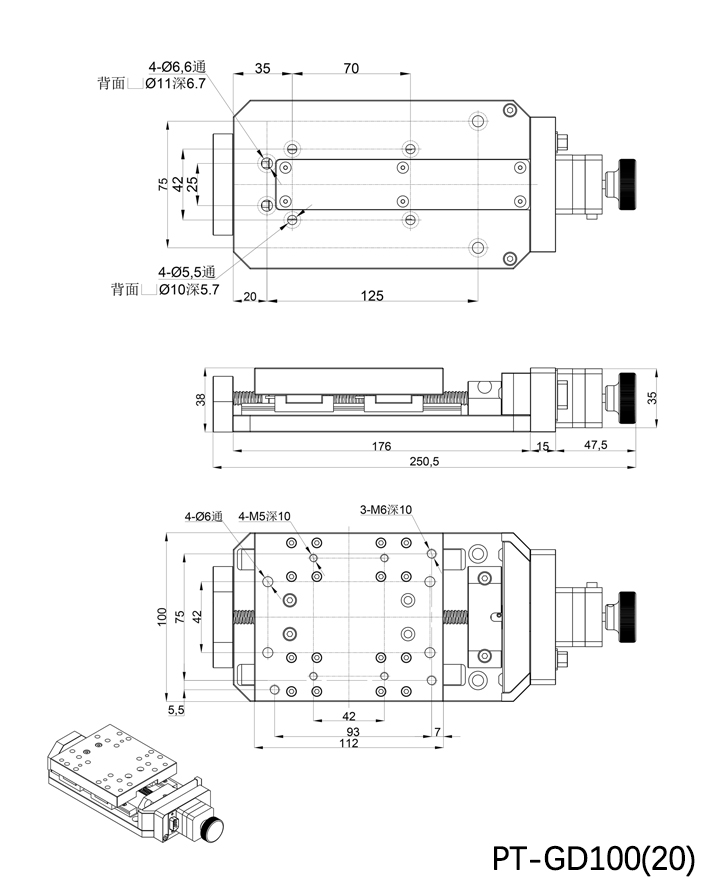

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
