Electrical Specifications
Product Parameters ：

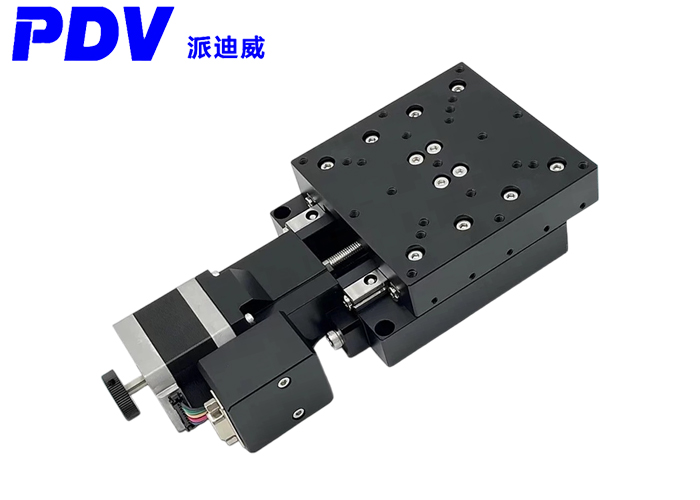

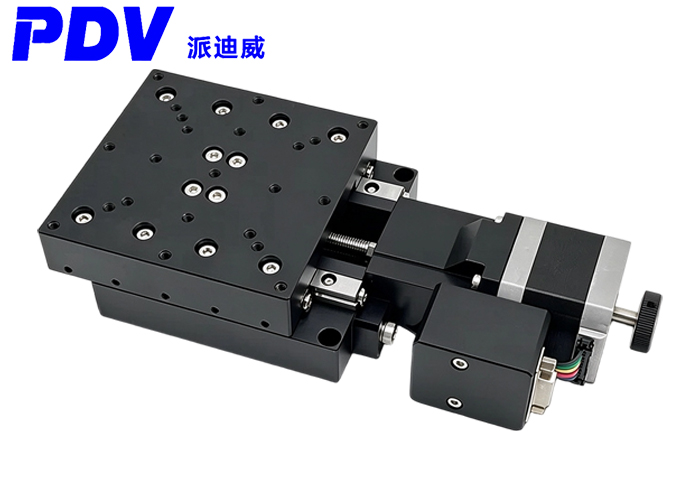

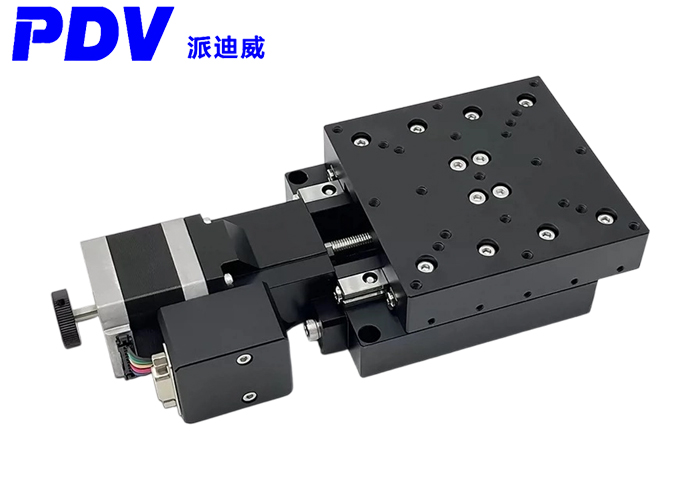

| Model | PP110-D20 |
| Table Size | 60×60mm |
| Travel Range | ±10mm |
| Material | Aluminum Alloy |
| Guideway | Crossed Roller Guide |
| Ball Screw | C5 Ground Screw, Diameter 6mm, Lead 1mm |
| Max Moving Speed | 15mm/sec |
| Positioning Accuracy | 0.012mm |
| Repeat Positioning Accuracy | ±0.0005mm |
| Straightness | 0.8μm |
| Movement Parallelism | 12μm |
| Matching Motor | 28 Stepper Motor |
| Step Angle | 1.8° |
| Limit Position Sensor | NPN Normally Closed |
| Home Sensor | NPN Normally Open |
| Working Voltage | 24V |
| Horizontal Load | 5kg |
| Net Weight | 0.51kg |

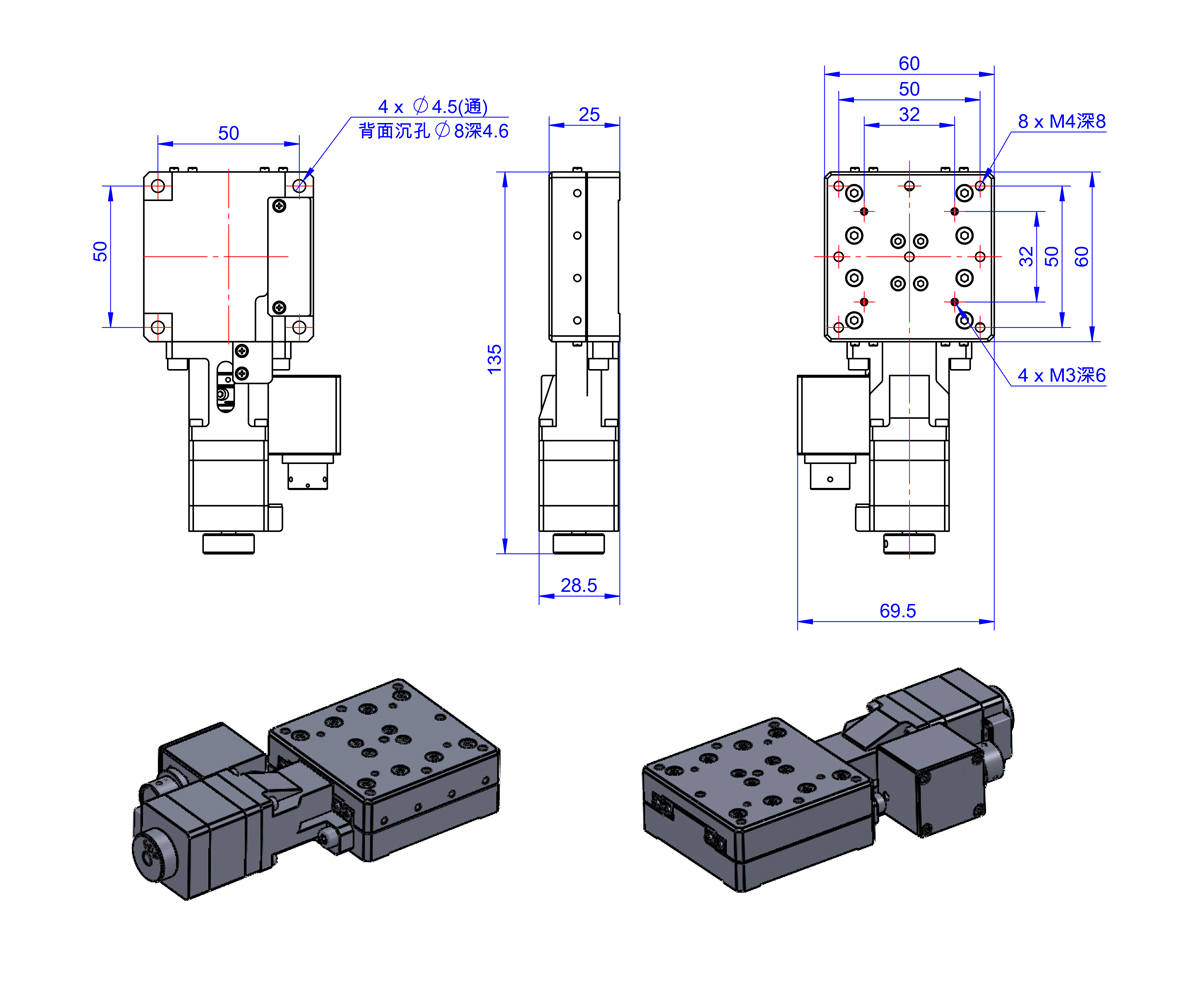

Product Dimension ：
