Product parameters：
| Model | ZS-2.5X | ZS-5X | ZS-10X | ZS-20X | ZS-50X |
| Optical system characteristics | Infinitely corrected | Infinitely corrected | Infinitely corrected | Infinitely corrected | Infinitely corrected |
| Observation method | Bright field | Bright field | Bright field | Bright field | Bright field |
| Correction level of chromatic aberration | Achromat | Achromat | Achromat | Achromat | Achromat |
| Magnification (X) | 2.5X | 5X | 10 | 20X | 50 |
| Focal length (mm) | 80 | 40 | 20 | 10 | 4 |
| Numerical aperture (NA) | 0.075 | 0.15 | 0.3 | 0.4 | 0.55 |
| Working distance (WD)[mm] | 10.3 | 9.2 | 7.4 | 4.6 | 3.4 |
| Field of view number | 10 | 5 | 2.5 | 1.25 | 0.5 |
| Resolution(um) | 3.92 | 1.83 | 0.92 | 0.69 | 0.5 |
| Focal depth±D.F.(μm) | 52.267 | 12.22 | 3.06 | 1.72 | 0.91 |
| Parfocalizing distance(mm) | 88.5 | 45 | 45 | 45 | 45 |
| Working medium | Air | / | / | / | / |
| Type of screw thread | WJ4/5"1/36" | WJ4/5"1/36" | W4/5"X1/37" | W4/5"X1/36" | W4/5"X1/36" |
| Weight (g) | 399 | 112 | 113 | 177 | 185 |
| Number | 0375-0002-000 | 0375-9005-000 | 0375-9010-000 | 0375-9020-000 | 0375-9050-000 |

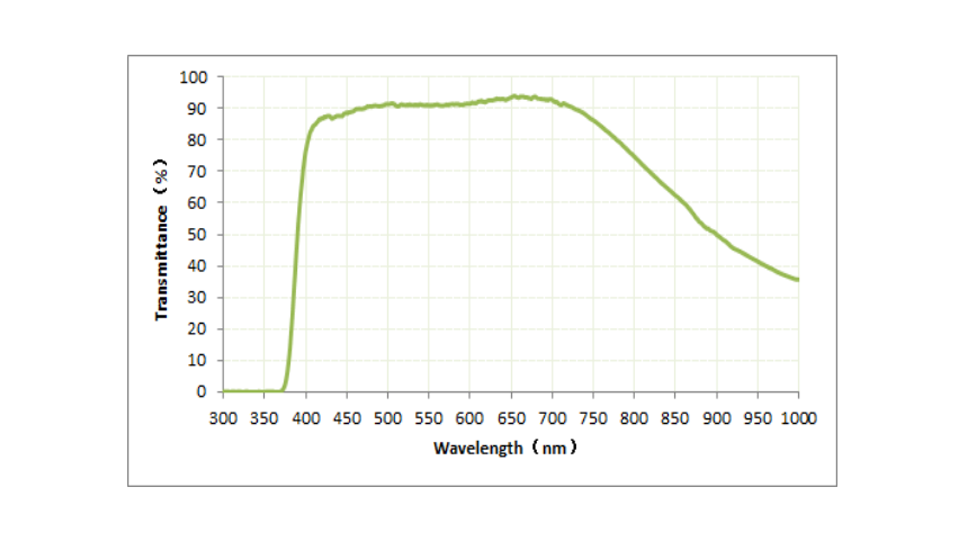

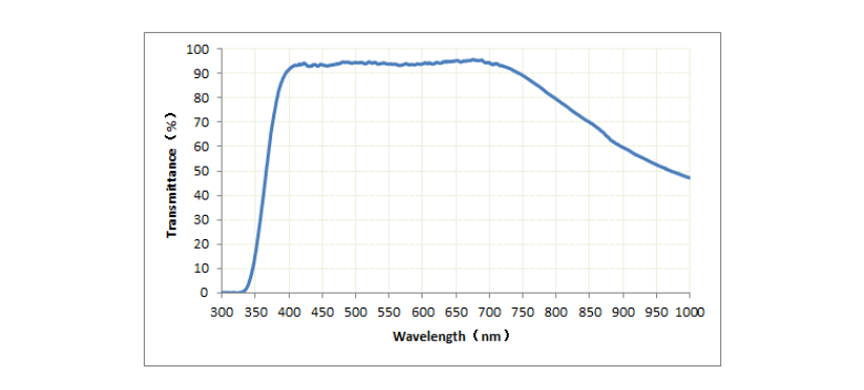

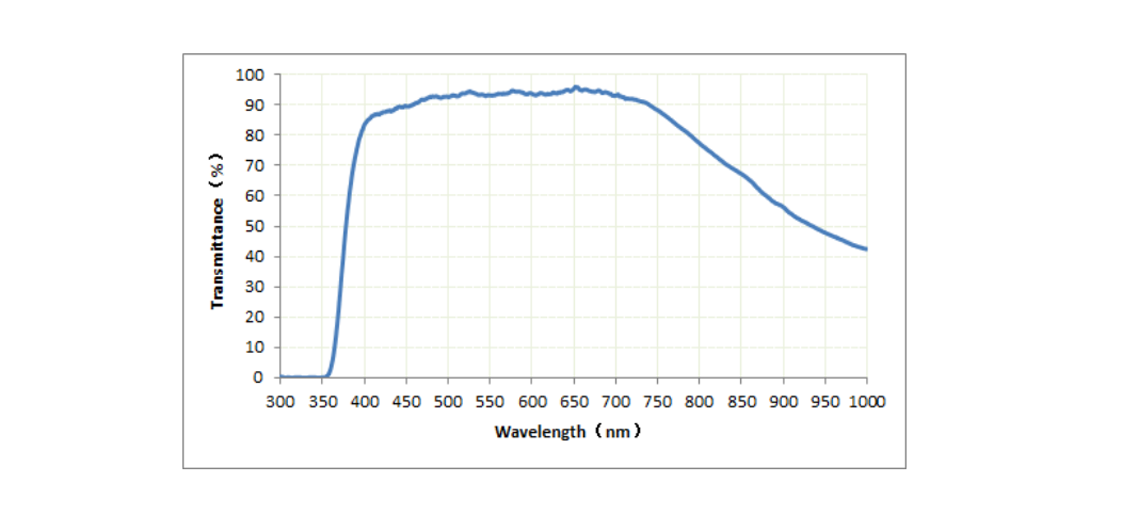

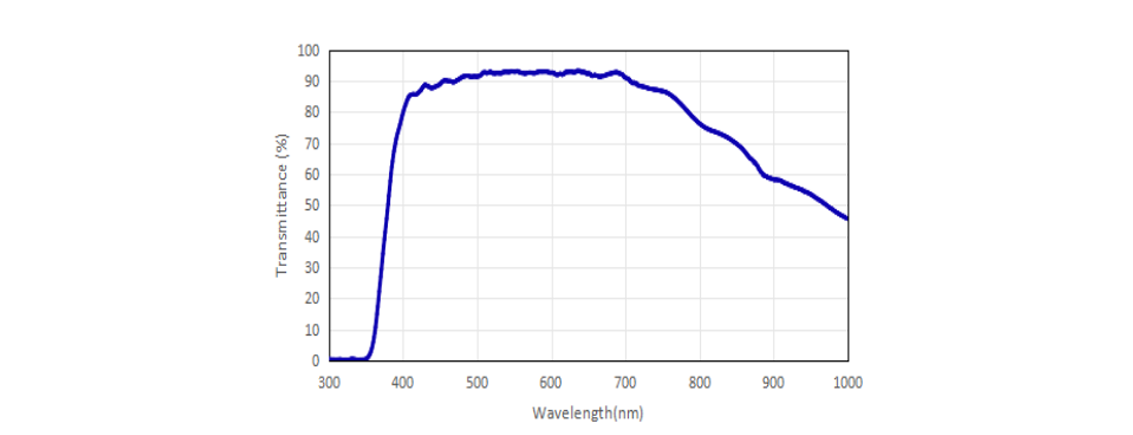

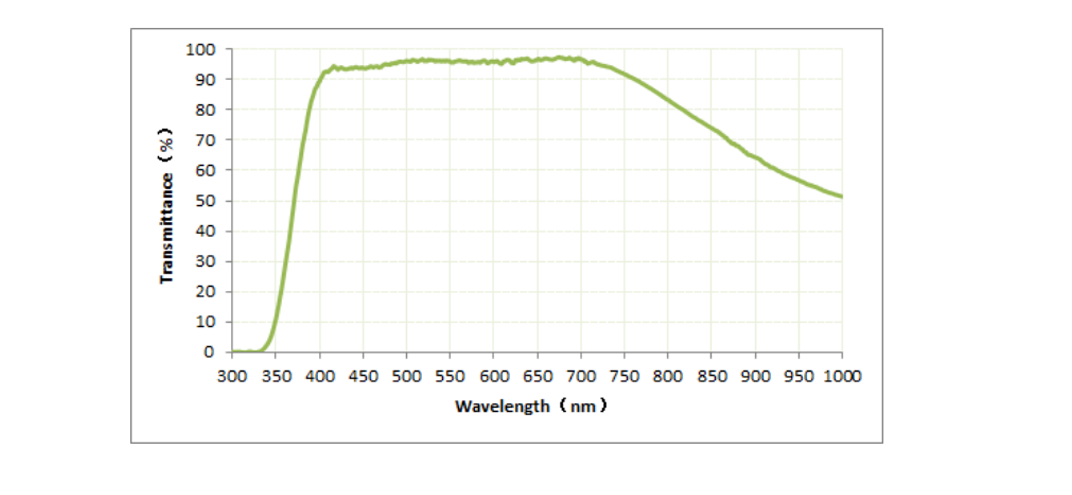

Product size curve：

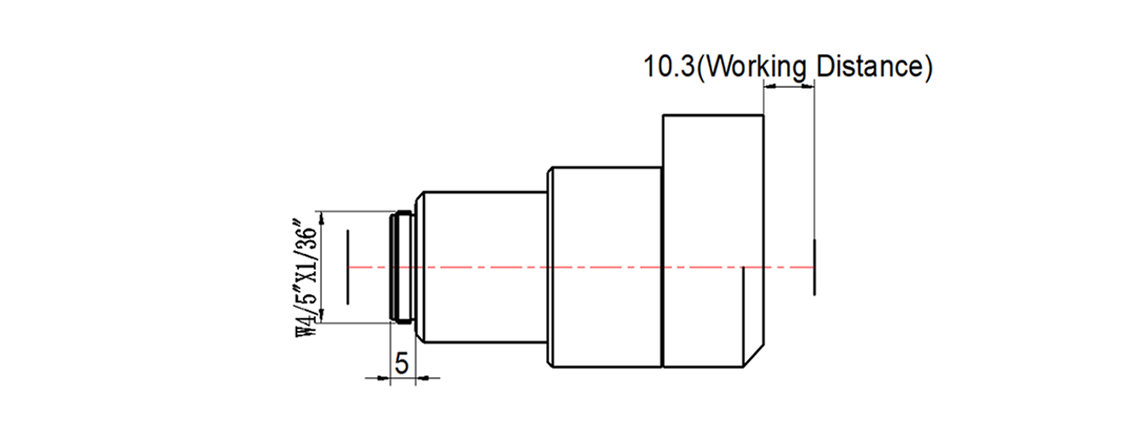

2.5X curve dimension diagram：

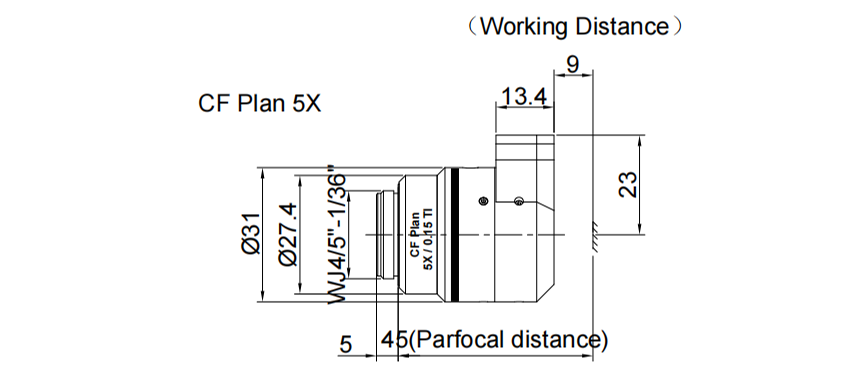

5X curve dimension diagram：

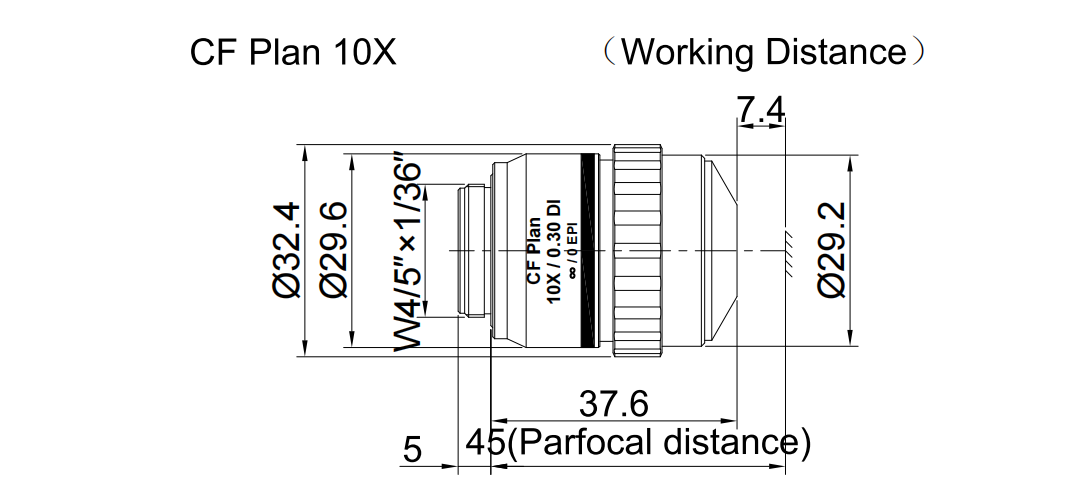

10X curve dimension diagram：

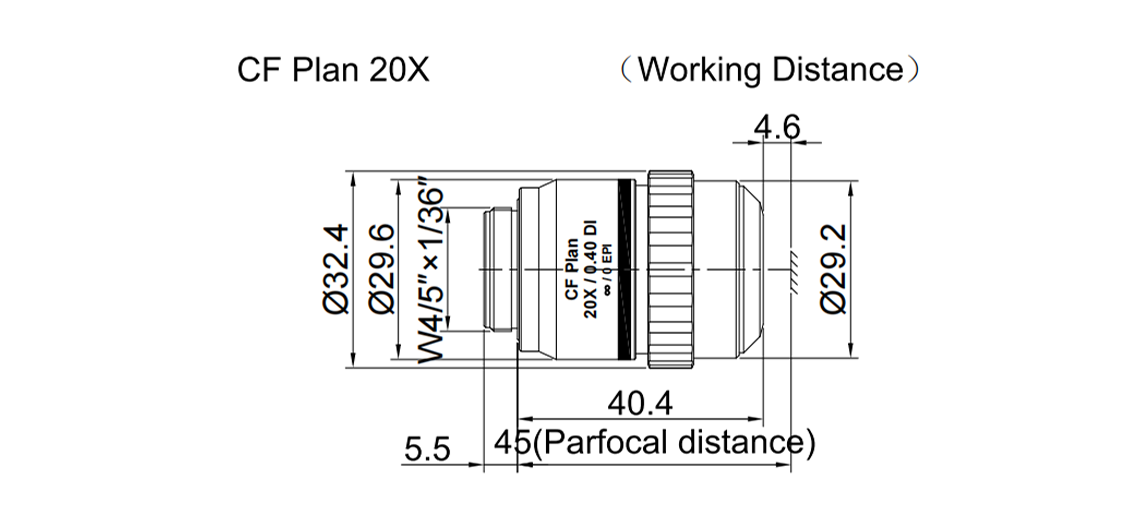

20X curve dimension diagram：

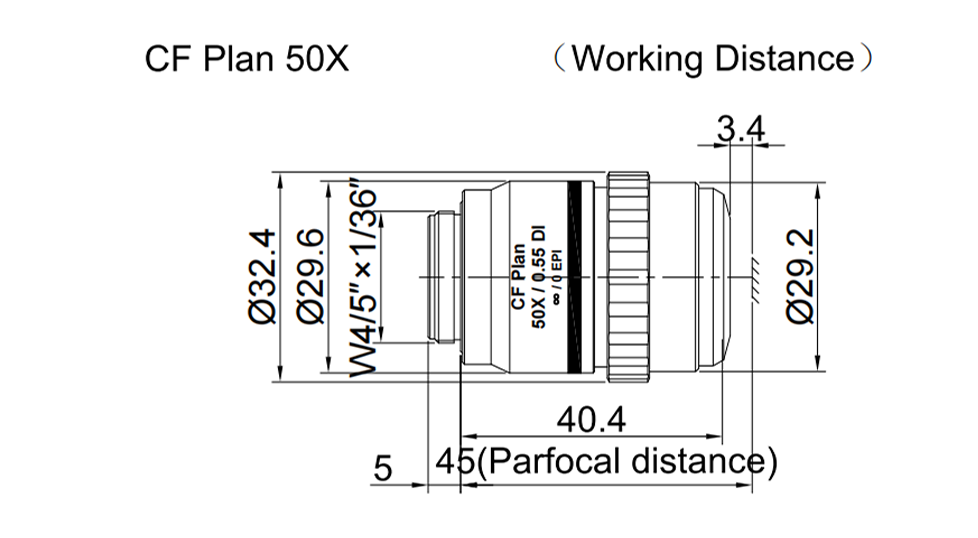

50X curve dimension diagram：
