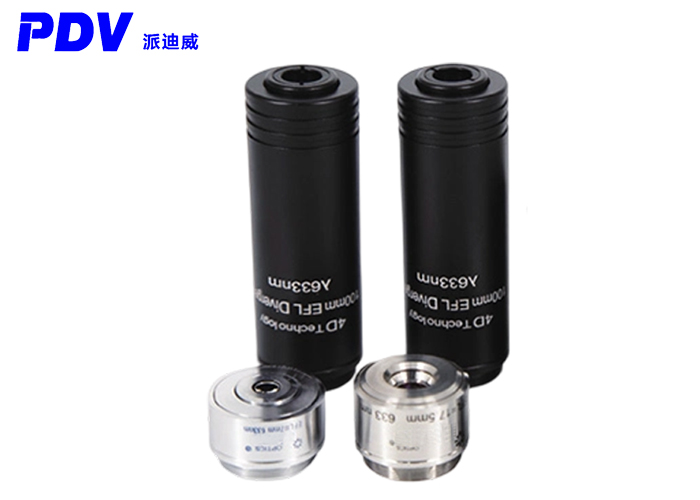

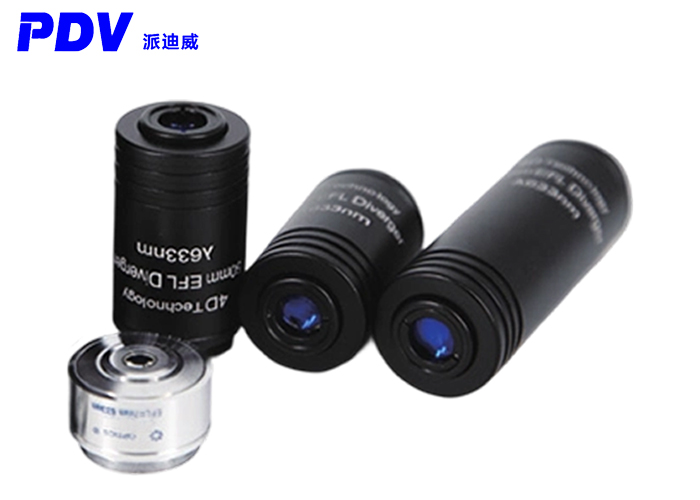

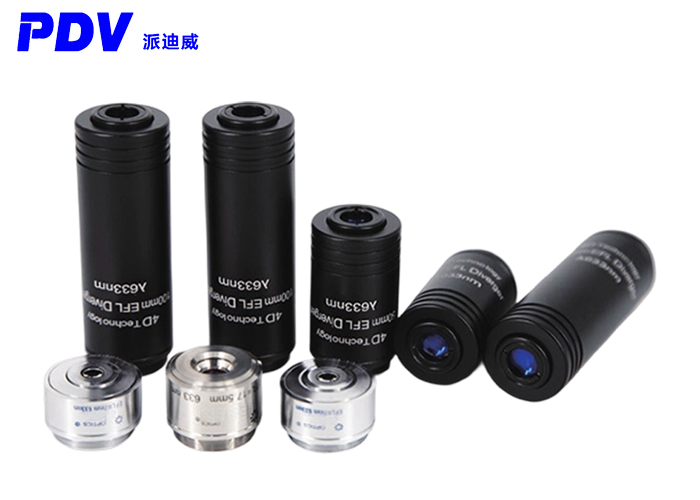

Suitable for measuring optical components and systems, it is easy to position and install. It is an ideal instrument for measuring large-aperture optical systems such as concave telescopes, lenses, and long-focal-length systems.
Suitable for harsh environments and high-difficulty inspections, the measurement speed is limited only by the exposure time and not by the CCD frame rate;
Insensitive to vibration, reducing the impact of airflow;
Large-sized optical components and system design meet the detection requirements of different specifications;
Matched with 4D Technology.
Product parameters:
| Model | Type | Focal length | Wavelength(λ) | Aperture of the light port | Focal adjustment range of the optical pupil | 95% effective accuracy(PV) |
| KS-10 | Spherical beam expanding lens | EFL=7mm | 632.8nm | 9mm | ±12.5mm | λ/10 |
| KS-13 | Spherical beam expanding lens | EFL=9mm | 632.8nm | 9mm | ±12.5mm | λ/10 |
| KS-20 | Spherical beam expanding lens | EFL=14mm | 632.8nm | 9mm | ±12.5mm | λ/10 |
| KS-25 | Spherical beam expanding lens | EFL=17.5mm | 632.8nm | 9mm | ±12.5mm | λ/10 |
| KS-30 | Spherical beam expanding lens | EFL=21mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-39 | Spherical beam expanding lens | EFL=27mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-50 | Spherical beam expanding lens | EFL=35mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-64 | Spherical beam expanding lens | EFL=45mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-77 | Spherical beam expanding lens | EFL=54mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-86 | Spherical beam expanding lens | EFL=60mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-90 | Spherical beam expanding lens | EFL=63mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-100 | Spherical beam expanding lens | EFL=70mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-103 | Spherical beam expanding lens | EFL=72mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-114 | Spherical beam expanding lens | EFL=80mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-116 | Spherical beam expanding lens | EFL=81mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-129 | Spherical beam expanding lens | EFL=90mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-143 | Spherical beam expanding lens | EFL=100mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
| KS-171 | Spherical beam expanding lens | EFL=120mm | 632.8nm | 9mm | ±12.5mm | λ/15 |
