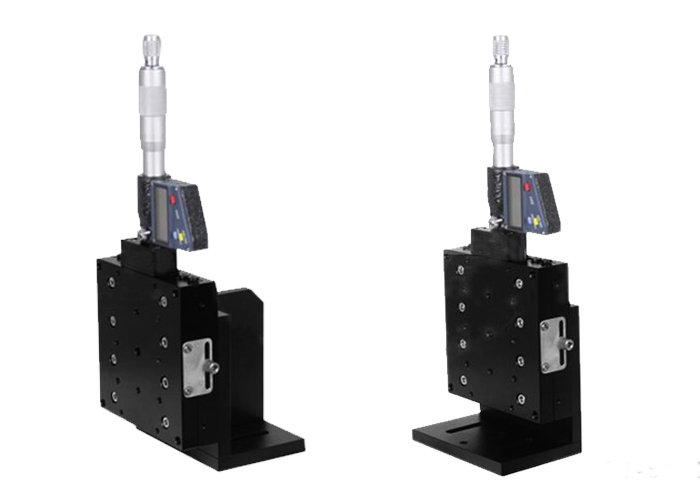

Product Name: PT-SD25W Manual translation table z-axis lifting table digital display adjustment lifting table

Share
Specification:

This kind of lifting table adopts digital display micro sub head adjustment, which can directly read out the current displacement on the display screen, so it is very convenient to use. There are two kinds of products: ZW and zwe. There are mounting holes at the bottom, which can be directly connected to other tables, optical platforms and flat plates. The product adopts cross roller guide rail structure, which has greater bearing capacity, better moving stability and stability

model

PT-SD25W

Corresponding to built-in model

PT-SD25E

Platform size (mm)

100×100

Stroke (mm)

25

Adjusting pitch (mm)

0.5

Resolution (mm)

0.001

reading (mm)

0.001

Reading accuracy (mm)

±4

Straightness of motion (um)

(swing left and right when lifting)

±1.5

Movement perpendicularity (um)

(swing left and right when lifting)

±10

Table flatness (um)

±20

Load (kg)

10

Slide guide

Cross roller   guide

Weight (kg)

2



PT-SD25W/25E Manual Translation Table Z-Axis Lab Jack Digital Display Adjustment Lifting Platform


Product details:

PT-SD25W Manual translation table z-axis lifting table digital display adjustment lifting table

PT-SD25W Manual translation table z-axis lifting table digital display adjustment lifting table
