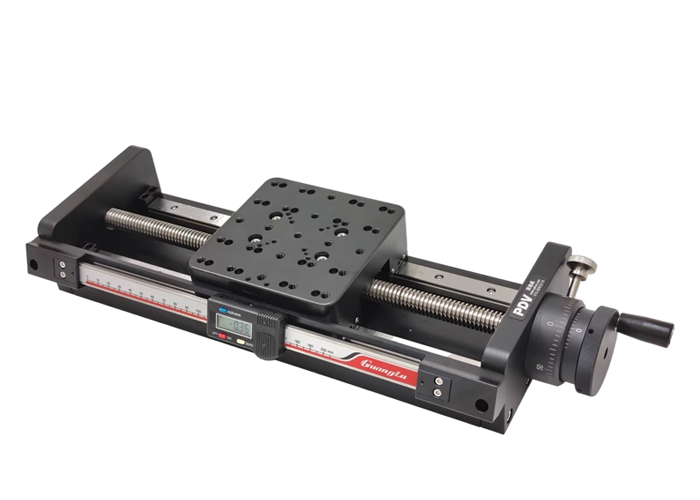

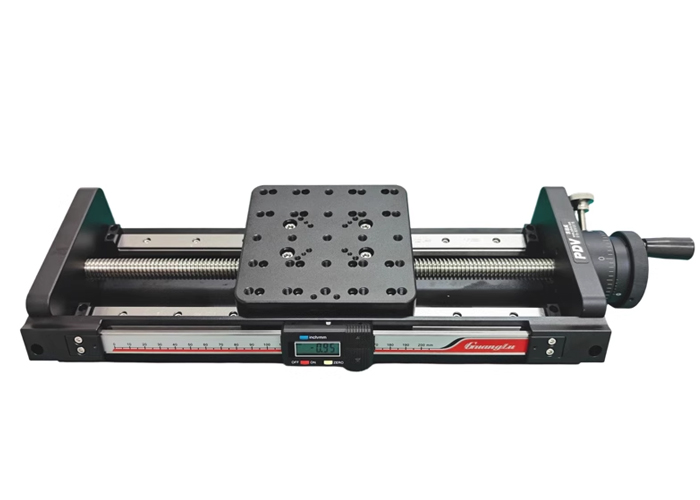

Product Name: Manual digital display translation table PT-SD140 series

Share
Specification:

Product Description:

U-shaped aluminum alloy bottom plate is finished and its surface is anodized, which has good wear resistance and beautiful appearance;

High positioning accuracy can be achieved by using precision grinding lead screw;

Adopting precision linear slider square guide rail and cooperating with our company's unique precision grinding technology can effectively ensure the straightness and straightness of the translation table;

When adjusting the platform, use the rotating handwheel with scale to realize precise fine adjustment;

Equipped with digital display scale, which can randomly read the stroke change;

PT-SD140 series manual digital display translation table is a medium-sized and medium-stroke precision translation table developed and produced. The main material is made of high-quality alloy aluminum manufactured by special technology, and the precision grinding screw is used, which is matched with the precision linear slider guide rail and high-precision digital display ruler to ensure that the product can be used in the application field of complex environment. The product has the advantages of high serialization, strong universality and convenient combination, and is suitable for low frequency and medium stroke adjustment, and can randomly read the stroke change, so it is a translation table product with high cost performance.


Product details:

Product Parameter:

PT-SD140(50)

Table size:

120 × 120 mm

Itinerary:

50 mm

screw pitch:

3 mm

Guide rail (guide mechanism):

Square slider guide rail

Main material:

aluminium alloy

Surface treatment:

Black anodizing treatment

Self-respect:

4.4 Kg

Straightness:

30 um

Bearing moment pitching:

7.8 N.m

Bearing moment rotation:

5.8 N.m

Torque stiffness pitch

0.25 "/N.cm

Torque stiffness rotation:

0.5 "/N.cm

Parallelism:

50 um

Carrying capacity:

10 kg

PT-SD140(100)

Table size:

120 × 120 mm

Itinerary:

100 mm

screw pitch:

3 mm

Guide rail (guide mechanism):

Square slider guide rail

Main material:

aluminium alloy

Surface treatment:

Black anodizing treatment

Self-respect:

4.7 Kg

Straightness:

35 um

Bearing moment pitching:

7.8 N.m

Bearing moment rotation:

5.8 N.m

Torque stiffness pitch

0.25 "/N.cm

Torque stiffness rotation:

0.5 "/N.cm

Parallelism:

55 um

Carrying capacity:

10 kg

PT-SD140(200)

Table size:

120 × 120 mm

Itinerary:

200mm

screw pitch:

3 mm

Guide rail (guide mechanism):

Square slider guide rail

Main material:

aluminium alloy

Surface treatment:

Black anodizing treatment

Self-respect:

5.6 Kg

Straightness:

40um

Bearing moment pitching:

7.8 N.m

Bearing moment rotation:

5.8 N.m

Torque stiffness pitch

0.25 "/N.cm

Torque stiffness rotation:

0.5 "/N.cm

Parallelism:

60 um

Carrying capacity:

10 kg

PT-SD140(300)

Table size:

120 × 120 mm

Itinerary:

300mm

screw pitch:

3 mm

Guide rail (guide mechanism):

Square slider guide rail

Main material:

aluminium alloy

Surface treatment:

Black anodizing treatment

Self-respect:

6.5 Kg

Straightness:

45um

Bearing moment pitching:

7.8 N.m

Bearing moment rotation:

5.8 N.m

Torque stiffness pitch

0.25 "/N.cm

Torque stiffness rotation:

0.5 "/N.cm

Parallelism:

65 um

Carrying capacity:

10 kg

Product size:

Manual digital display translation table PT-SD140 series
