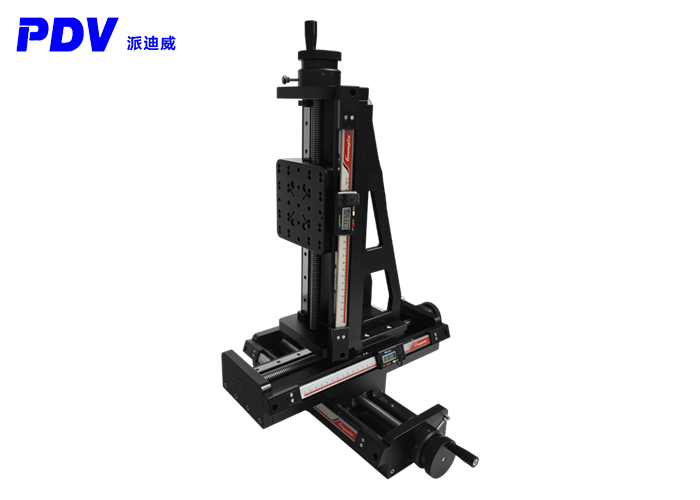

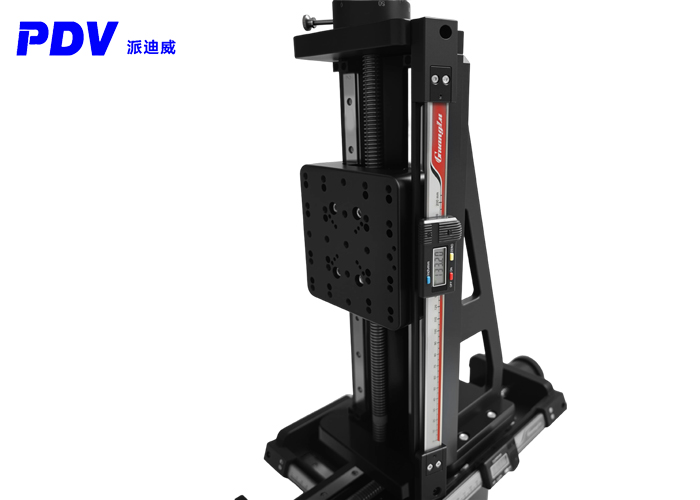

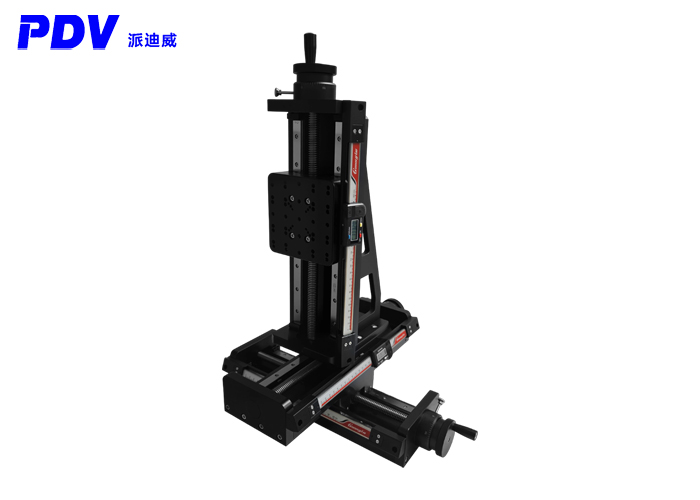

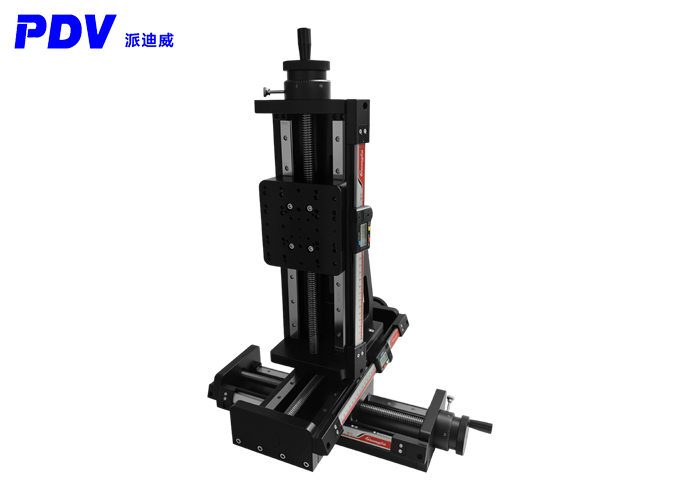

PT-SD140(100XYZ) manual digital display translation stage is a medium-sized and medium-stroke precision translation stage developed and produced. The main body material is made of high-quality alloy aluminum processed by special techniques, and it is equipped with a precision grinding lead screw, combined with precise linear slider guide rails and high-precision digital scale, ensuring that the product can be applied in complex environment application fields. The product has strong versatility and is convenient to assemble, suitable for low-frequency usage and medium-stroke adjustment, and can randomly read the travel change amount. It is a highly cost-effective translation stage product.
Product Specifications:
| Model number | PT-SD140(100XYZ) |
| Itinerary | 100mm |
| Table surface size | 120×120mm |
| Pitch | 3mm |
| Main material | Aluminum alloy |
| Self-weight | 4.7kg |
| Load-carrying moment Pitch | 7.8N.m |
| Torque stiffness Pitch | 0.25”/N.cm |
| Parallelism | 55μm |
| Guide rail (guiding mechanism) | Square sliding block guide rail |
| Surface treatment | Black anodized treatment |
| Straightness | 35 um |
| Torque moment rotation | 5.8 N.m |
| Torque stiffness rotation | 0.5 "/N.cm |
| Load-bearing capacity | 10 kg |
