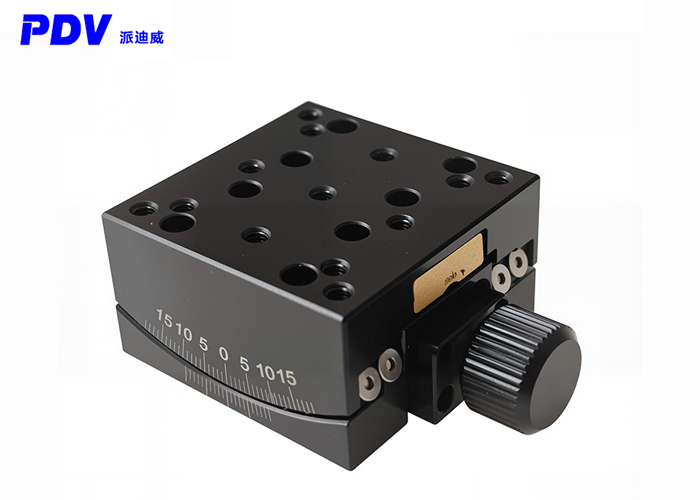

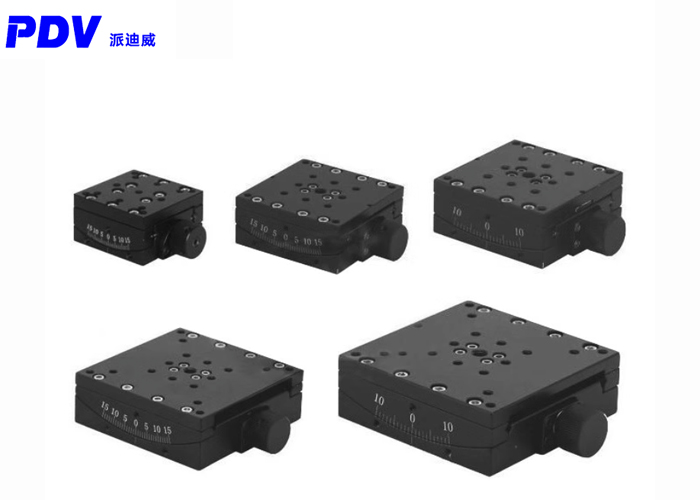

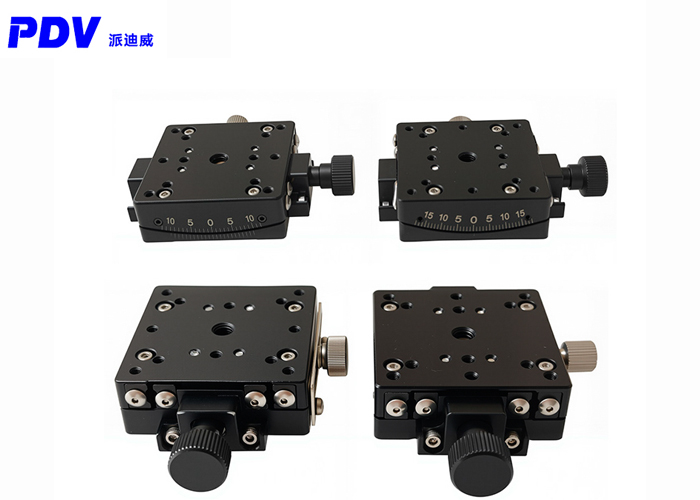

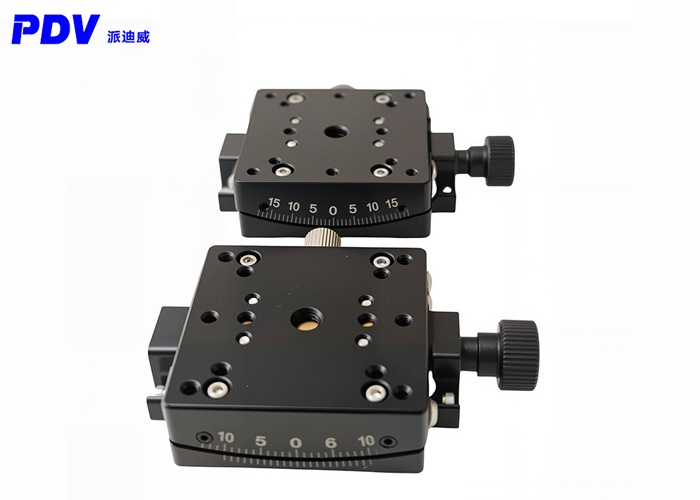

Ordinary light-load one-dimensional manual corner position stage
It is driven by a worm gear and worm structure. By rotating the handwheel, high-resolution precise Angle adjustment can be achieved. It is easy to operate and has a good load-bearing capacity, making it suitable for applications that require precise arc swing angles. The light-load corner position platform adopts a linear arc rail structure or a dovetail arc rail structure, which is suitable for use in applications with relatively light loads.
The standard manual Angle position stage is driven by a worm gear and worm structure. By rotating the handwheel, high-resolution precise Angle adjustment can be achieved. It is easy to operate and has a good load-bearing capacity, making it suitable for applications that require precise arc swing angles. The light-load corner position platform adopts a linear arc rail structure or a dovetail arc rail structure, which is suitable for use in applications with relatively light loads.
There are installation screw holes at the bottom of the product, which can be directly connected to other countertops for assembly and use.
Product parameters:
| Model | PT-SD350 | PT-SD368 | PT-SD386 | PT-SD377 | PT-SD396 | PT-SD3122 |
| Countertop size (mm） | 50×50 | 70×70 | ||||
| From the countertop to the center of the pendulum | 50 | 68 | 86 | 70 | 96 | 122 |
| Adjustment range (°） | ±15° | ±10° | ±10° | ±10° | ±10° | ±8° |
| Transmission ratio | - | - | - | 161:1 | - | - |
| Reading (°） | 1° | |||||
| Resolution (°） | 0.01° | 0.005° | ||||
| Load-bearing capacity (kg） | 10 | 15 | ||||
| Guide rail structure | Crossed ball arc rail | |||||
| Self-weight (kg） | 0.4 | 0.6 | ||||
| Model | PT-SD4027 | PT-SD6075 | PT-SD6095 | PT-SD60115 | PT-SD7558 | PT-SD7583 |
| Countertop size (mm） | 40×40 | 60×60 | 60×60 | 60×60 | 75×75 | 75×75 |
| Countertop to center of the pendulum (mm） | 27 | 60 | 80 | 100 | 58 | 83 |
| Adjustment range (°） | ±15° | ±15° | ±12° | ±10° | ±15° | ±10° |
| Reading (°） | 1° | 1° | 1° | 1° | 1° | 1° |
| Resolution (°） | 0.01° | 0.005° | 0.005° | 0.005° | 0.005° | 0.005° |
| Load-bearing capacity (kg） | 3 | 5 | 10 | |||
| Guide rail structure | Linear ball arc guide | Swallowtail arc rail | Linear ball arc guide | |||
| Self-weight (kg） | 0.11 | 0.25 | 0.26 | 0.26 | 0.39 | 0.4 |

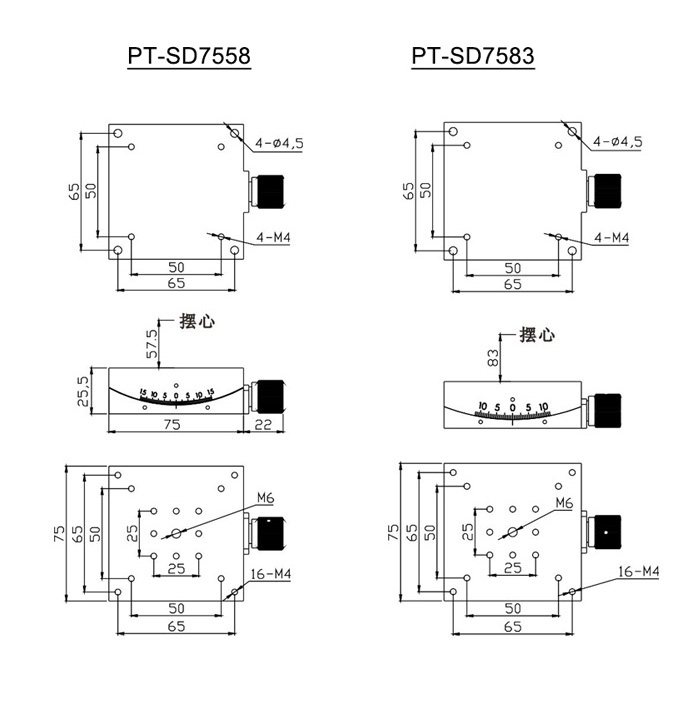

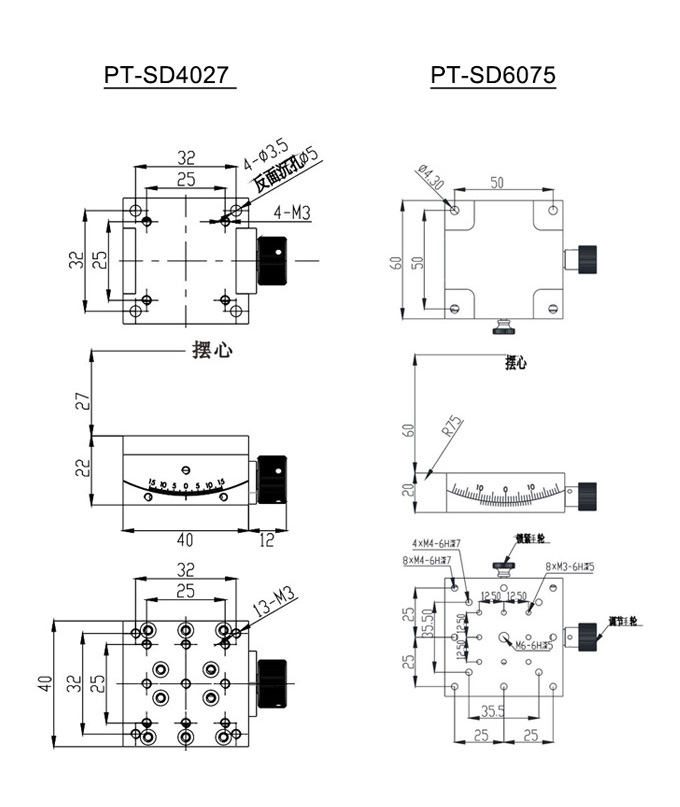

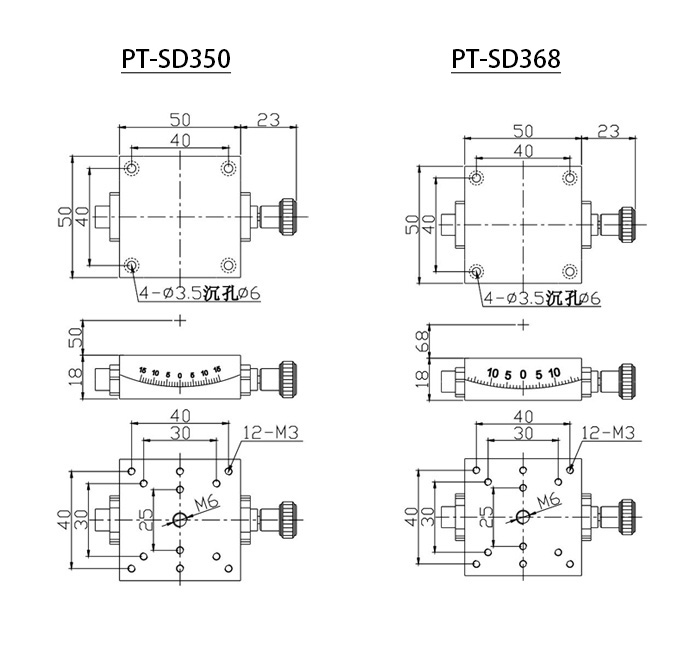

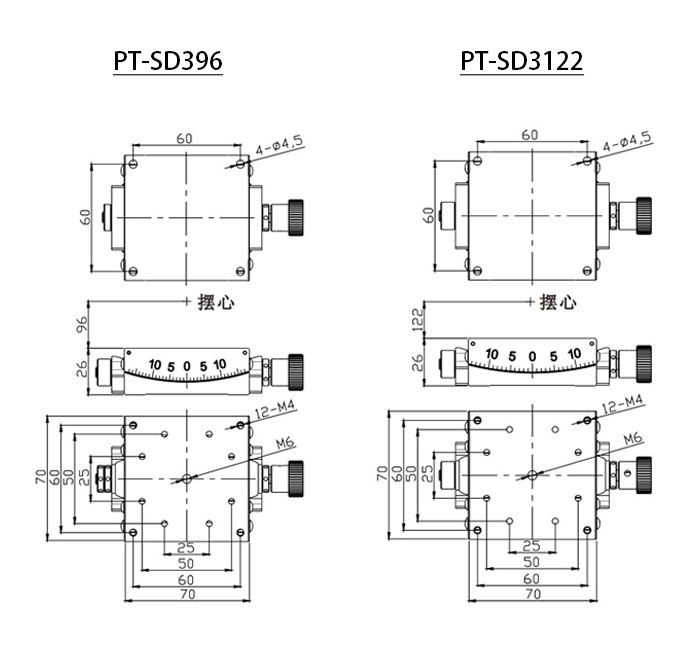

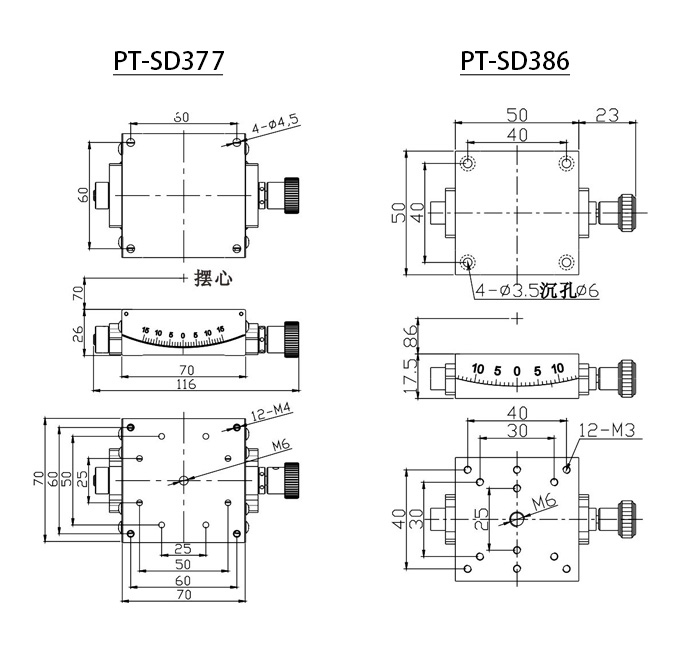

Product size：
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
