The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
The size of the manual corner position table fine-tuning slide is 25×25 and 40×40The size of the manual corner position table fine-tuning slide is 25×25 and 40×40The size of the manual corner position table fine-tuning slide is 25×25 and 40×40The size of the manual corner position table fine-tuning slide is 25×25 and 40×40The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40

Product Name: The size of the manual corner position table fine-tuning slide is 25×25 and 40×40

Inquire Now Next Product
Share
Specification:

Product parameters：

ModelPT-SD2510PT-SD2520PT-SD4415PT-SD4416PT-SD2520(XY)PT-SD4415(XY)PT-SD4416(XY)
Countertop size25×25mm25×25mm40×40mm40×40mm25×25mm40×40mm40×40mm
Central height35204040204040
Load19.6N(2kgf)19.6N(2kgf)24.5N(2.5kgf)24.5N(2.5kgf)19.6N(2kgf)24.5N(2.5kgf)24.5N(2.5kgf)
Maximum adjustable±10°±20°±15°±15°UP±20°±15°±15°
Under the±10°
Rotate once≈1.19°≈1.82°≈1.7°≈1.78°UP≈1.82°≈1.70°≈1.78°
Under the≈1.19°
Thickness15mm15mm20mm16mm30mm40mm31mm
Weight0.02kg0.02kg0.09kg0.09kg0.04kg0.19kg0.19kg
MaterialAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloyAluminum alloy





Product details:

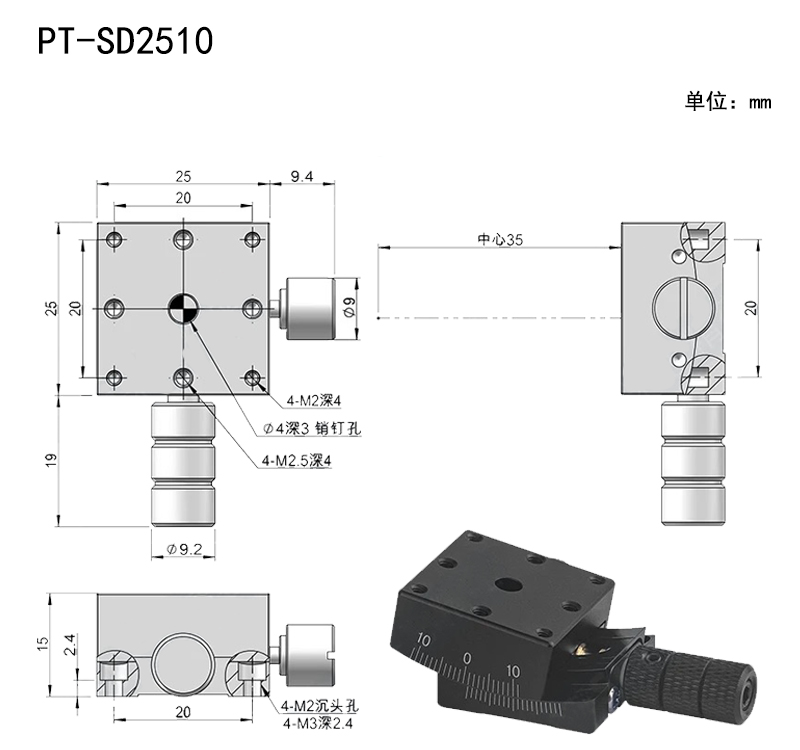

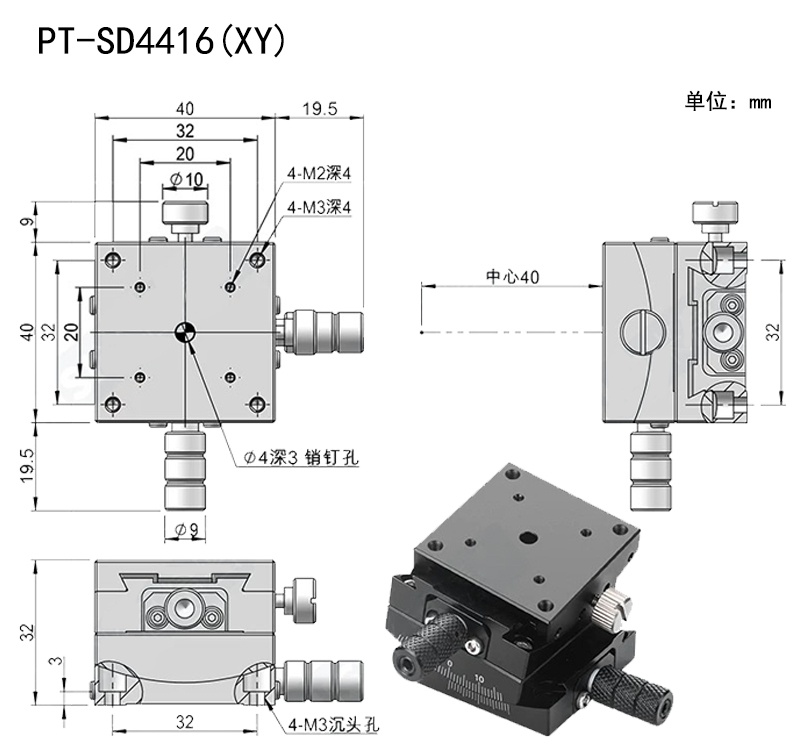

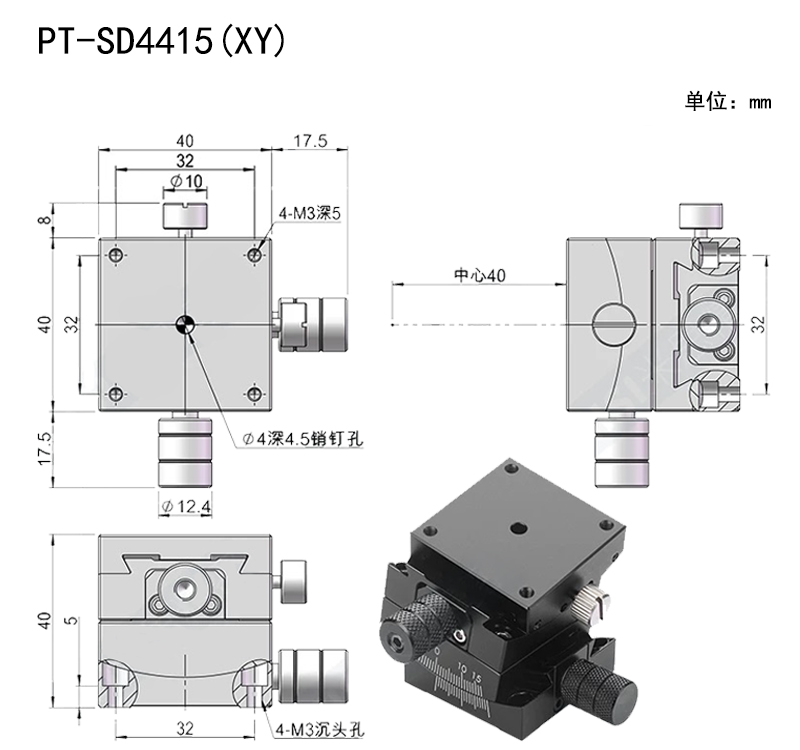

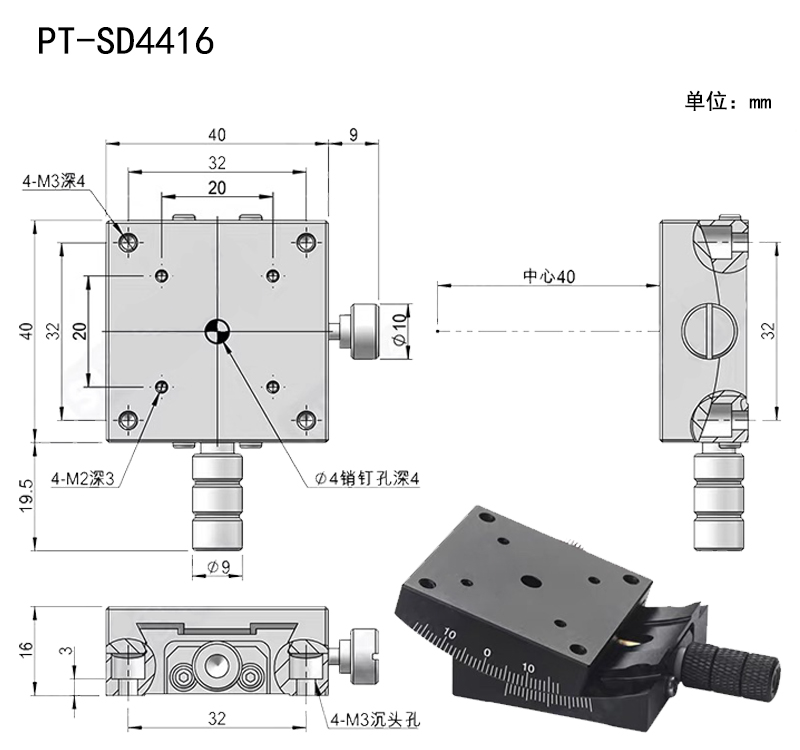

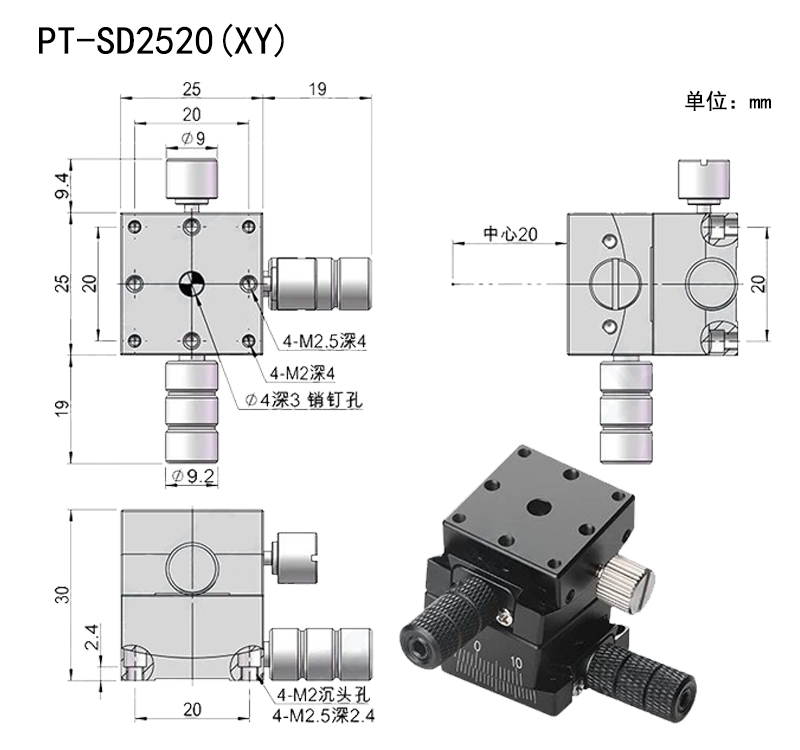

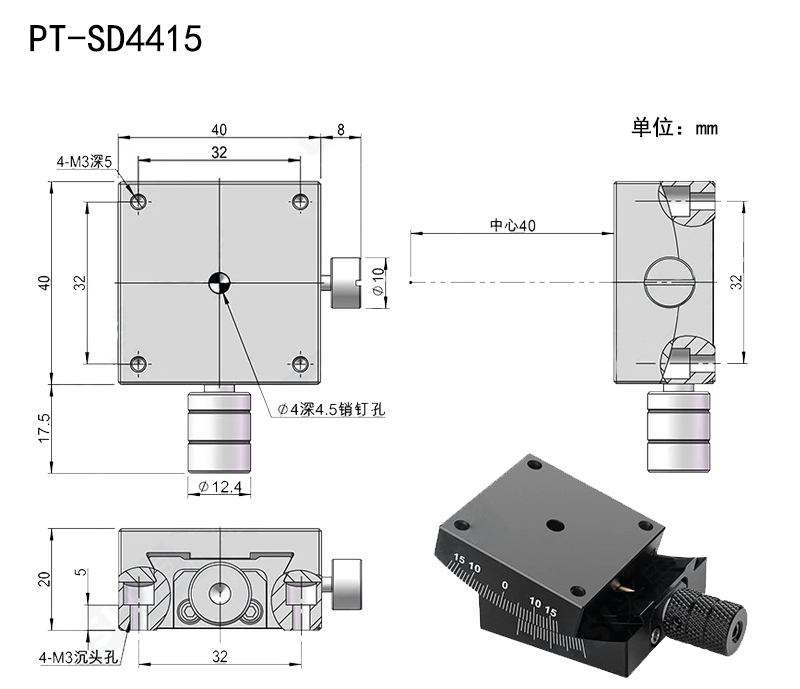

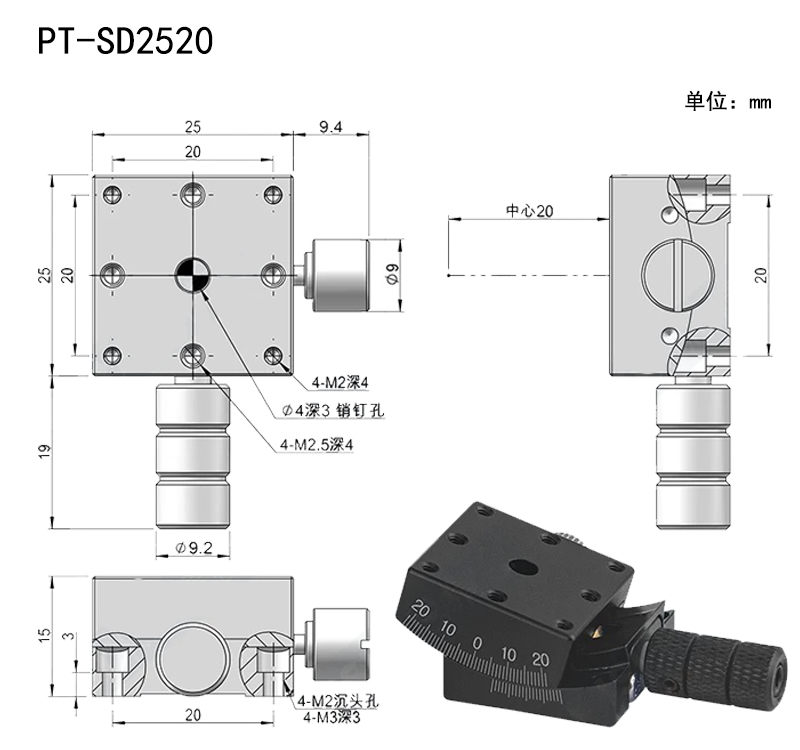

Product size：

The size of the manual corner position table fine-tuning arc-shaped pitch table is 25×25 and 40×40

The size of the manual corner position table fine-tuning arc-shaped pitch table is 25×25 and 40×40

The size of the manual corner position table fine-tuning arc-shaped pitch table is 25×25 and 40×40

The size of the manual corner position table fine-tuning arc-shaped pitch table is 25×25 and 40×40

The size of the manual corner position table fine-tuning arc-shaped pitch table is 25×25 and 40×40

The size of the manual corner position table fine-tuning arc-shaped pitch table is 25×25 and 40×40

The size of the manual corner position table fine-tuning arc-shaped pitch table is 25×25 and 40×40



Service:
The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
  • The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
The size of the manual corner position table fine-tuning slide is 25×25 and 40×40
FAQ:
1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1
2 Q: The displacement table has a remote and proximal limit switch.
3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.
4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.
stepper motor. Step motor drive card is purchased separately.
Note:

    We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
