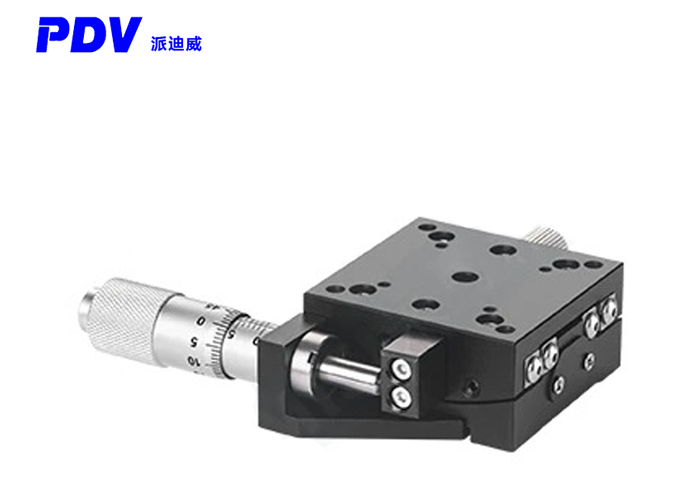

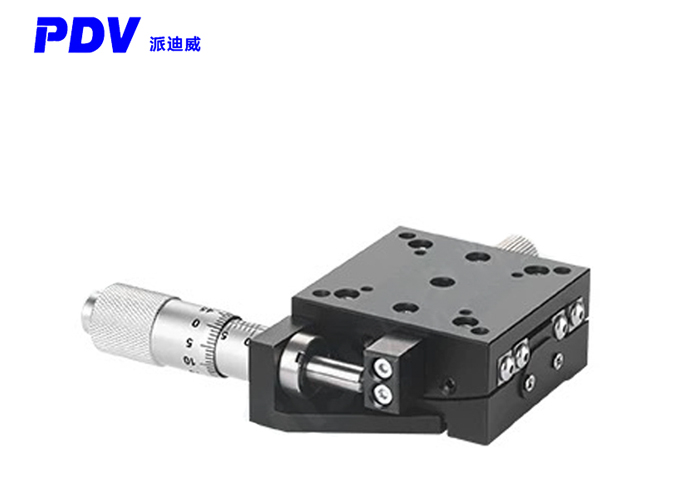

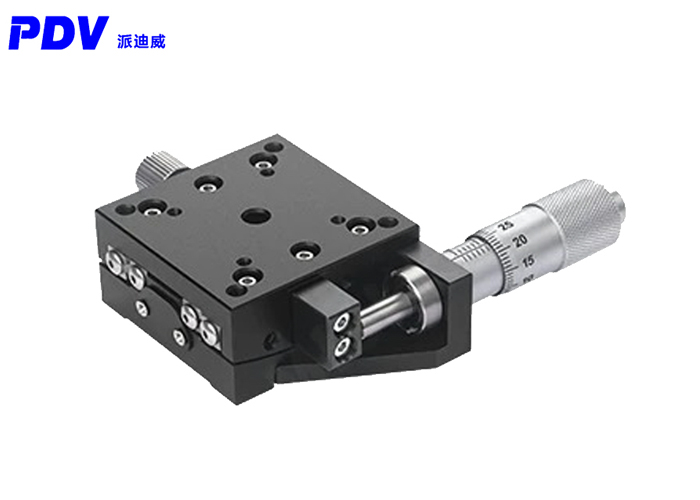

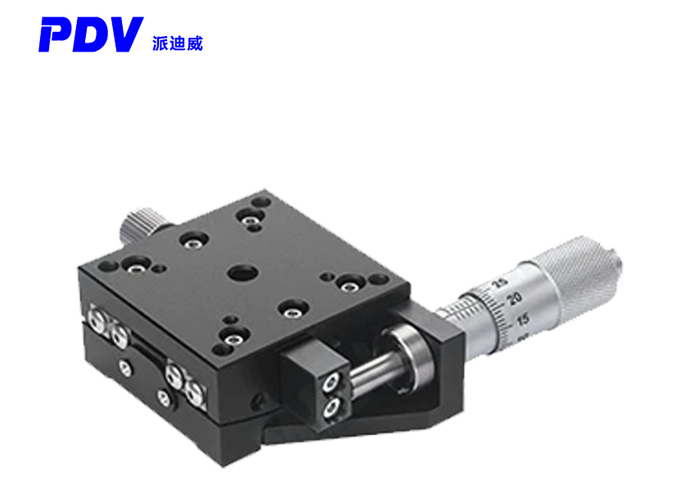

Received the corner table - Manual Goniometer Stage, Low Profile Goniometer Platfor, Manual Goniometer Stage Export

Specification:

Product parameters

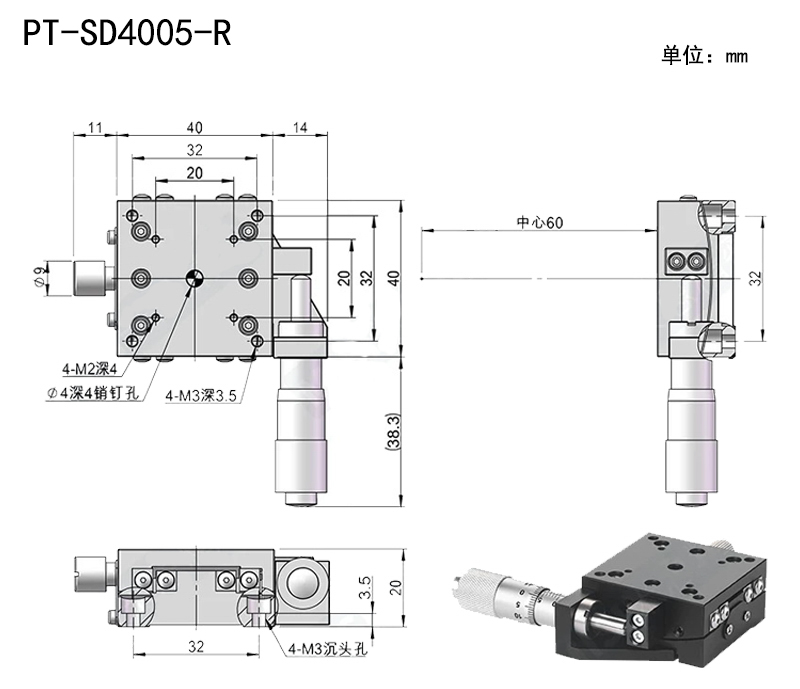

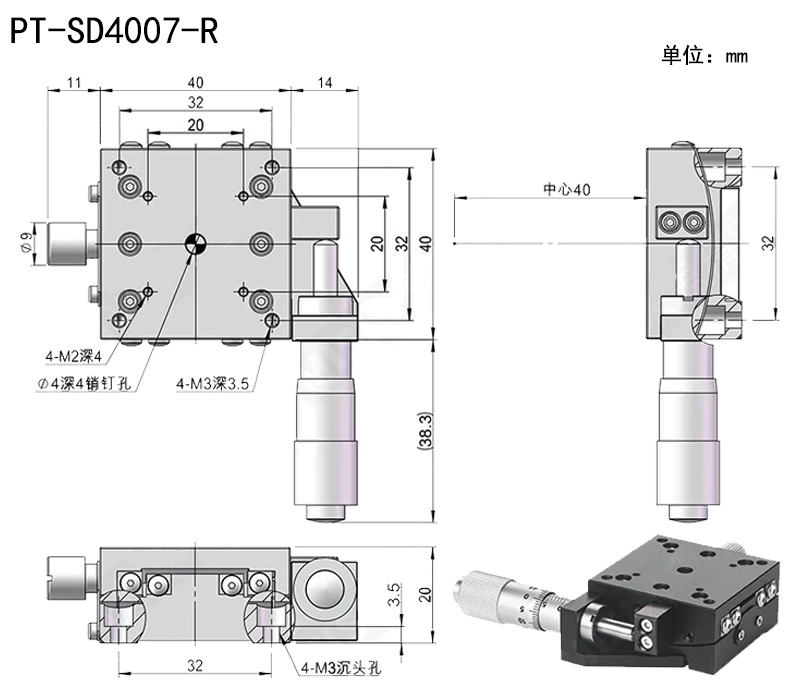

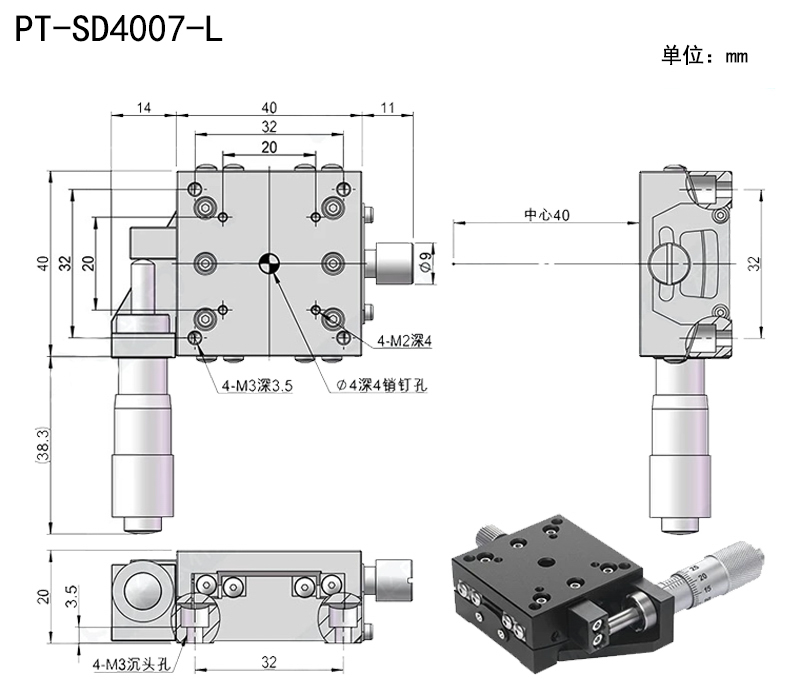

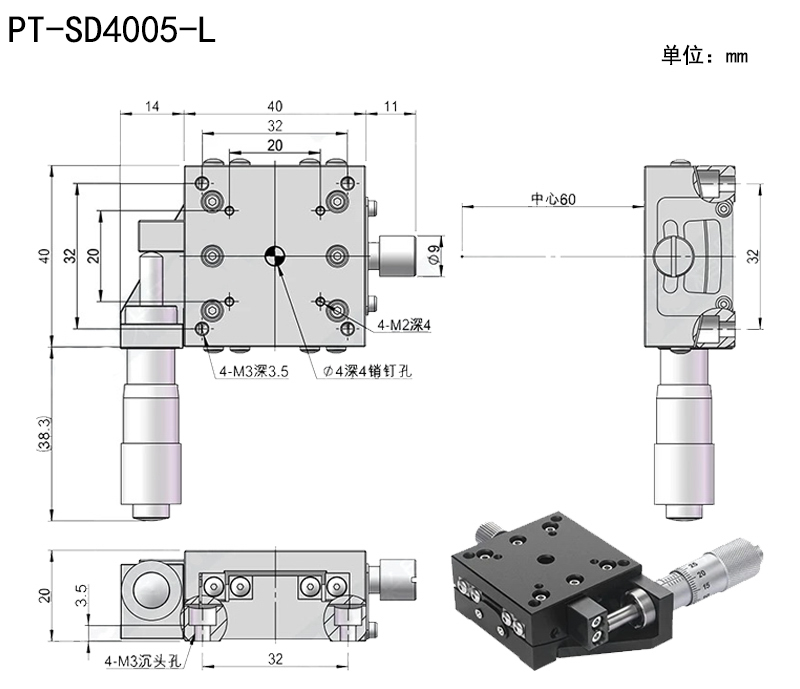

Model	PT-SD4007-L	PT-SD4007-R	PT-SD4005-L	PT-SD4005-R
Countertop size	40×40mm	40×40mm	40×40mm	40×40mm
Central height	40	40	60	60
Load	29.4N(3kgf)	29.4N(3kgf)	29.4N(3kgf)	29.4N(3kgf)
Maximum adjustable	±7°	±7°	±5°	±5°
Rotate once	≈0.59°	≈0.59°	≈0.42°	≈0.42°
Thickness	20mm	20mm	20mm	20mm
Weight	0.15kg	0.15kg	0.15kg	0.15kg
Material	Aluminum alloy	Aluminum alloy	Aluminum alloy	Aluminum alloy

Product details:

Product size：

The size of the manual corner position table fine-tuning slide is 40×40, with an Angle of ±5° and ±7°

Service:

The size of the manual corner position table fine-tuning slide is 40×40, with an Angle of ±5° and ±7°

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
