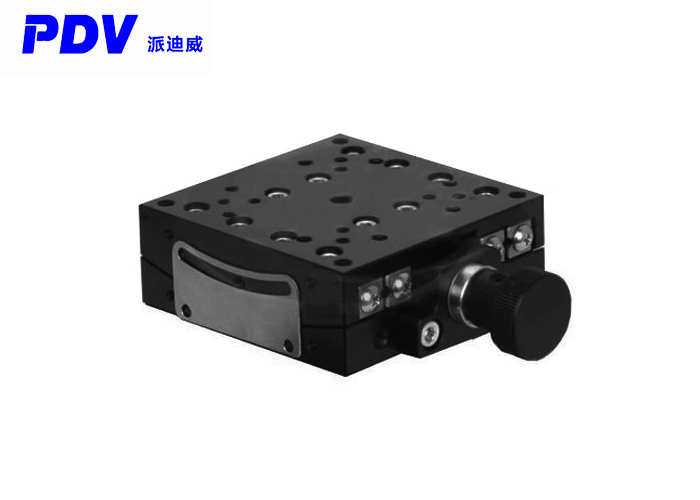

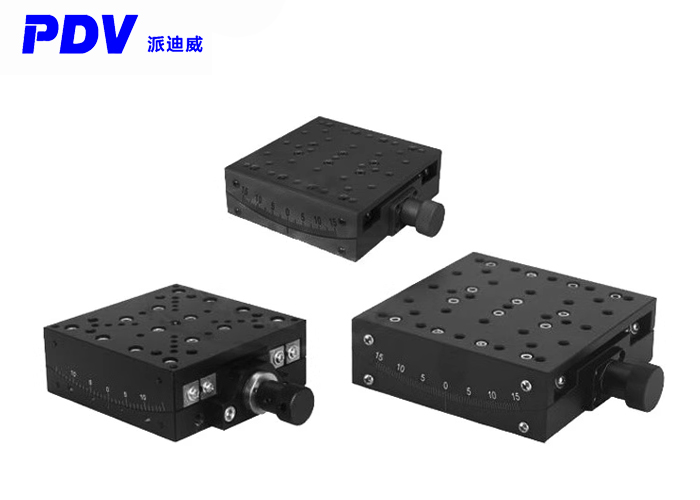

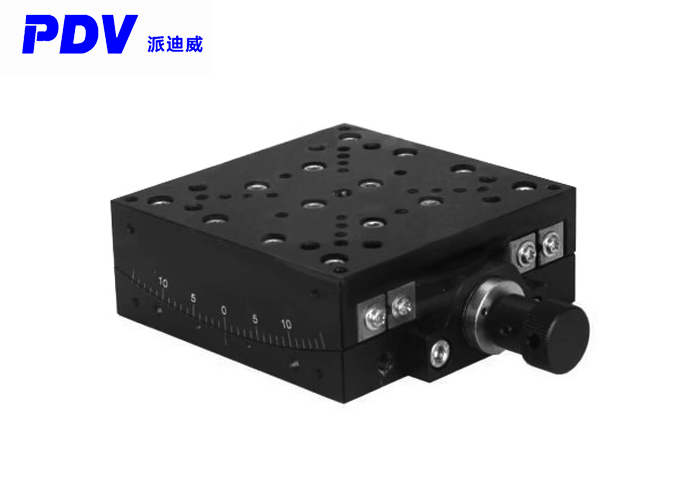

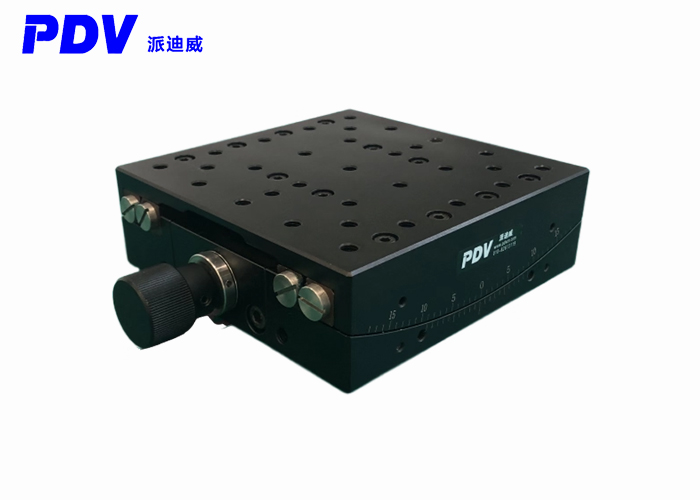

Heavy-duty one-dimensional manual corner position stage
It is driven by a worm gear and worm structure. By rotating the handwheel, high-resolution precise Angle adjustment can be achieved. It is easy to operate and has a good load-bearing capacity, making it suitable for those who need precise arc swing angles
It is used in such occasions. The heavy-duty corner position stage adopts arc-shaped cross guide rails, which offer better load-bearing capacity and stability.
The ordinary manual Angle position stage is driven by a worm gear and worm structure. By rotating the handwheel, high-resolution precise Angle adjustment can be achieved. It is easy to operate, has a good load-bearing capacity, and is suitable
It is suitable for use in situations where precise arc swing angles are required. The heavy-duty rotary table adopts a crossed arc guide rail structure, which has a greater load-bearing capacity and better swing stability.
There are installation screw holes at the bottom of the product, which can be directly connected to other countertops for assembly and use.
Product parameters
| Model | PT-SD395 | PT-SD3134 | PT-SD3144 |
| Countertop size (mm | 100×100 | 125×125 | |
| From the countertop to the center of the pendulum | 95 | 134 | 144 |
| Adjustment range (° | ±10° | ±10° | ±15° |
| Scale (° | —— | —— | 1° |
| Reading (° | 1° | ||
| Resolution (° | 0.005° | ||
| Load-bearing capacity (kg | 20kg | ||
| Guide rail structure | Crossed ball arc rail | ||
| Self-weight (kg | 1.5 | 2.1 | |
| Sway sideways | —— | —— | 200” |
| Material | —— | —— | Aluminum alloy |
| Surface treatment | —— | —— | Anodic oxidation |

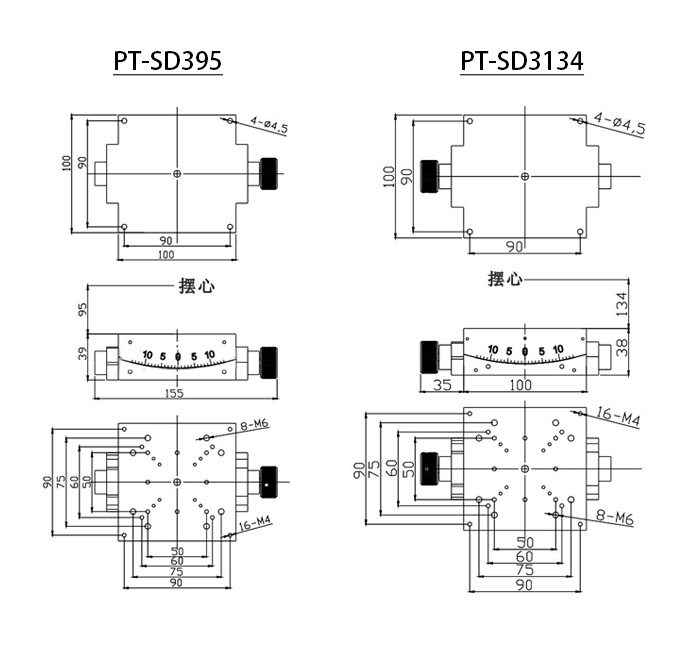

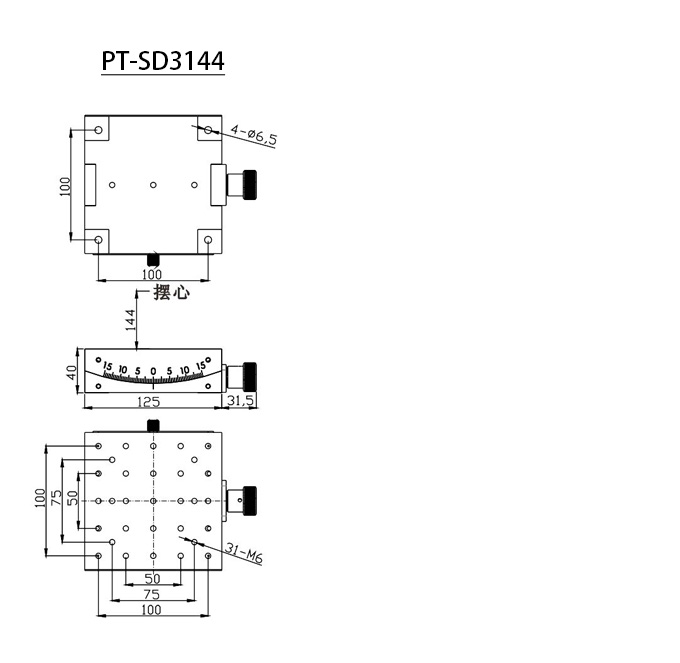

Product size：
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
