Specification:

Product parameters:

Model	PT-LS1410
Double countertop	100*110
Direction of movement	Left and right tensile displacement
Motor	42 stepper motor
Left and right itinerary	50mm
Lead screw lead	1.5mm
Design resolution	0.125μm
Motion parallelism	<15μm
Repeat positioning accuracy	<10μm
Straightness of motion	<12μm
Limit type	Hall sensor
Speed	≤5mm/sec
Load	5kg
Weight	2.72kg

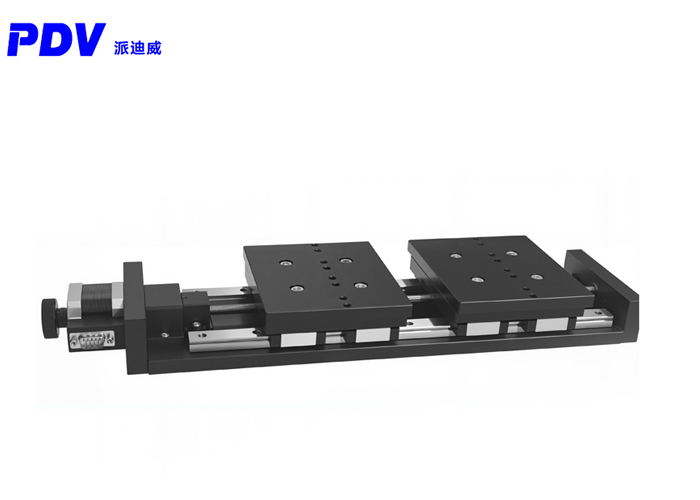

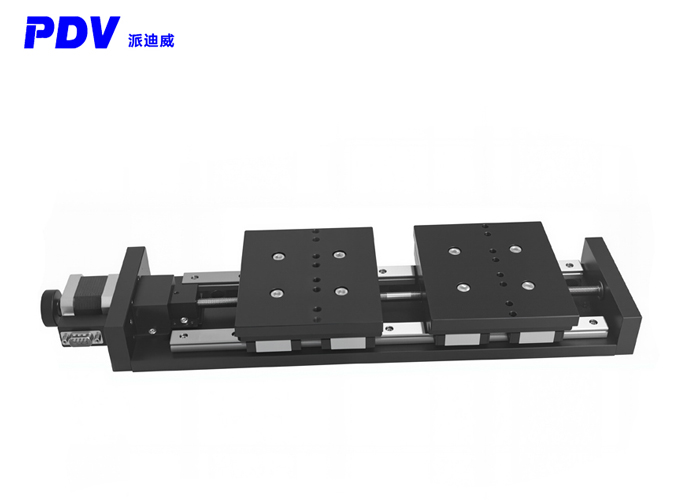

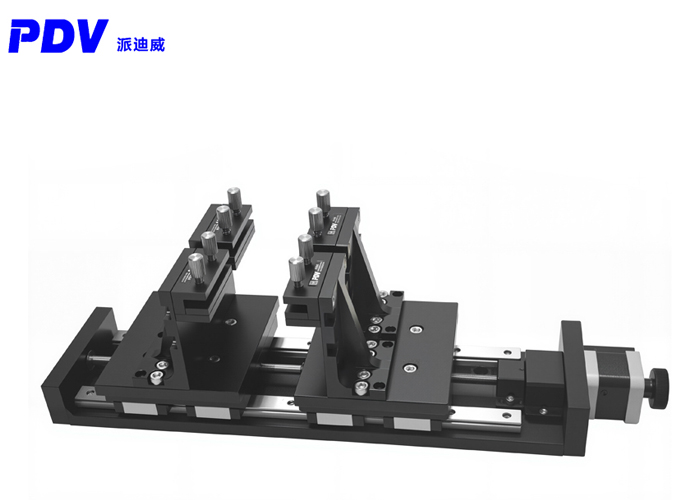

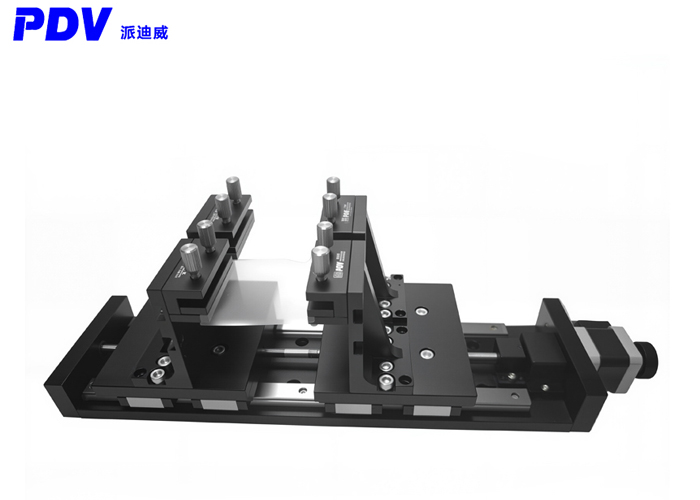

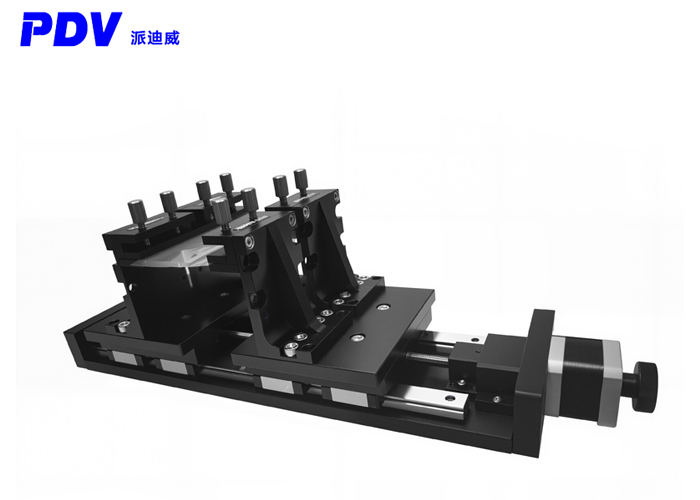

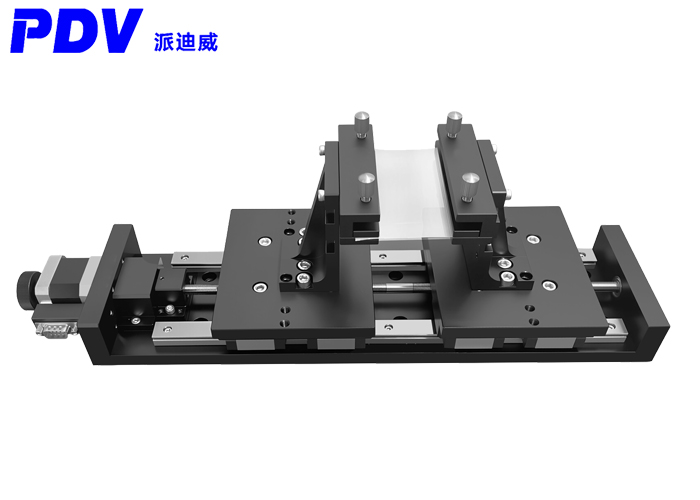

Product details:

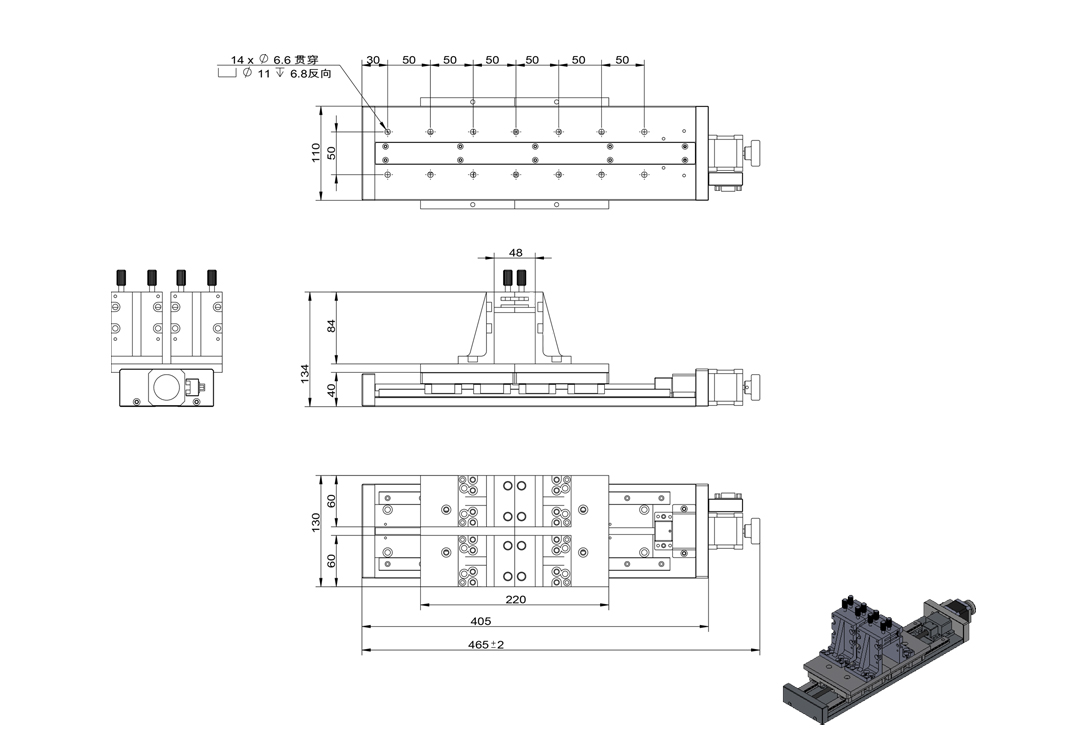

Product size:

The bilateral stretching table stretches two films, PT-LS1410, simultaneously

Service:

The bilateral stretching table stretches two films, PT-LS1410, simultaneously

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
