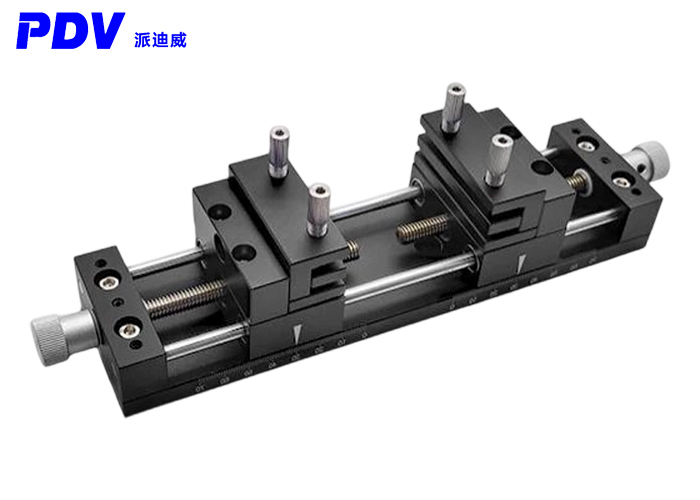

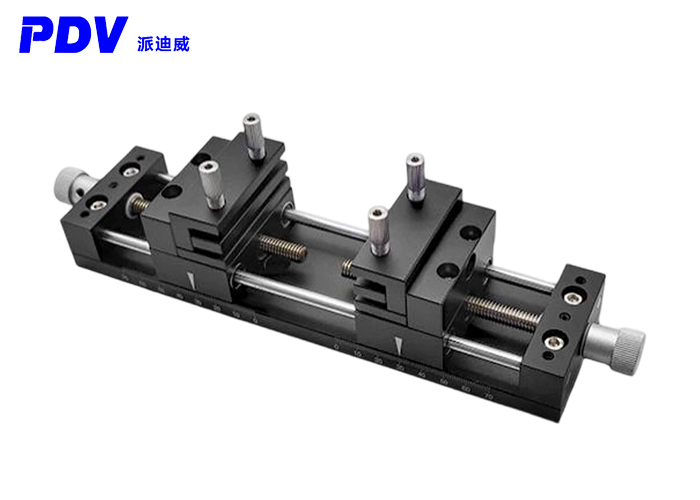

Product Name: Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060

Share
Specification:

Product Specifications:

Model numberPT-LS4060
Overall dimensions240×60×56mm(Without handle)
Table surface dimensions40×60mm(Each countertop is equipped with a dry board rack.)
ItineraryThe displacement range of a single slider is 60mm (with a total travel of 120mm).
Pitch of the screw rod1.5mm
Main materialAluminum alloy
Surface treatmentBlack surface anodizing
Load8kg
Self-respect0.6kg
NoteEach unit is equipped with 2 dry plate racks as standard.



Product details:

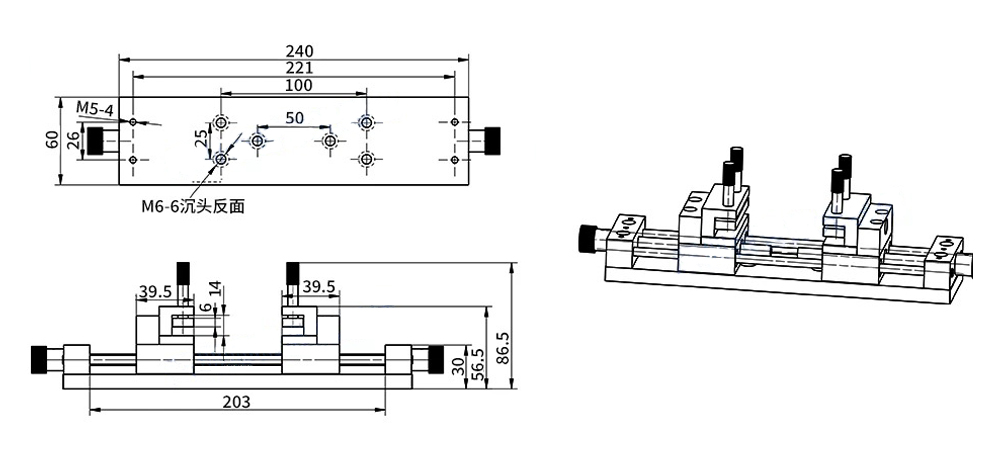

Product size:

Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060


Service:
Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060
  • Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060
  • Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060
  • Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060
  • Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060
Manual bidirectional stretching table, stretching translation table, stretching fixture PT-LS4060
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
