Specification:
Service:
Shipping:
FAQ:
Product parameters:

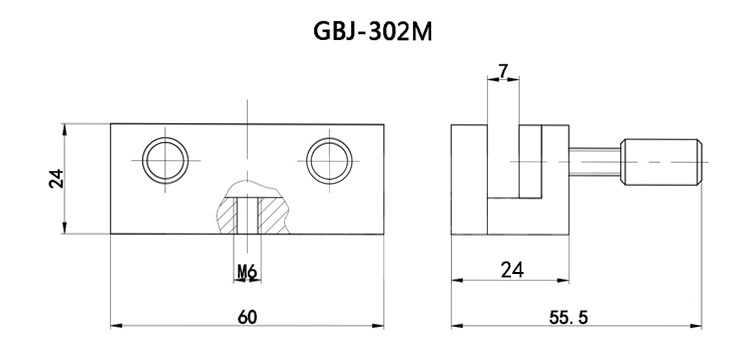

| Model | GBJ-302M |
| Overall dimensions | 60×24×24mm（The hand-tightening size is not included） |
| Clamping thickness | 7mm |
| Self-respect | 105g |
| Bottom thread | M6 |
| Model | Surface treatment of the main body | Sliding countertop（mm） | Single slider stroke(mm) | Horizontal installation with load-bearing capacity(N) | weight(g) | Feed lead screw material |
| PT-SM60 | Black anodizing | 60*60 | 20 | 68.6 | 680 | OCr18iN9(304)Stainless steel |
| PT-SM60A | Black anodizing | 60*40 | 20 | 68.6 | 680 | OCr18iN9(304)Stainless steel |
| PT-SM40 | Black anodizing | 40*25 | 35 | 29.4 | 140 | OCr18iN9(304)Stainless steel |
| PT-SM80 | Black anodizing | 80*60 | 20 | 78.4 | 720 | OCr18iN9(304)Stainless steel |

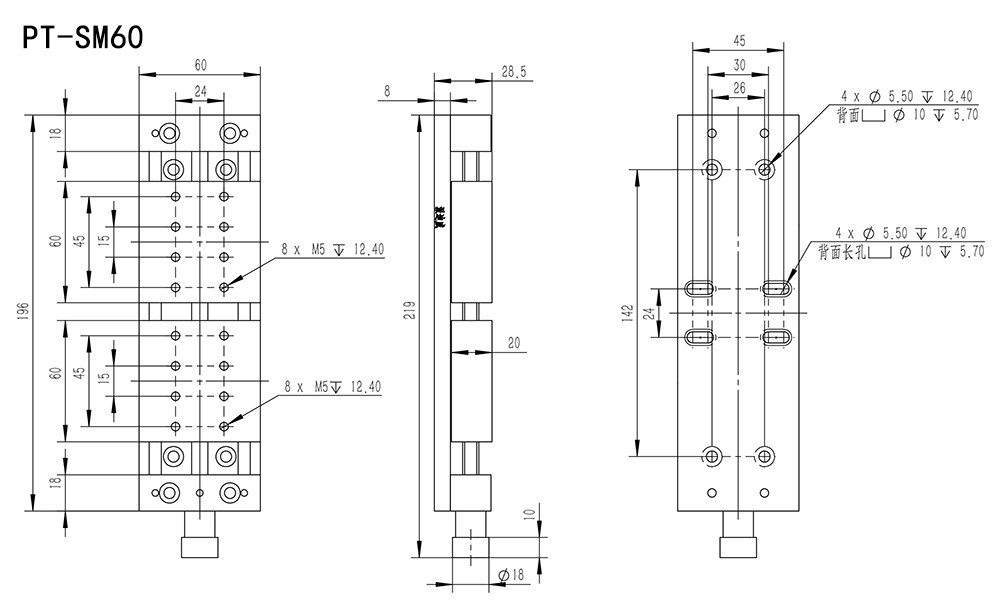

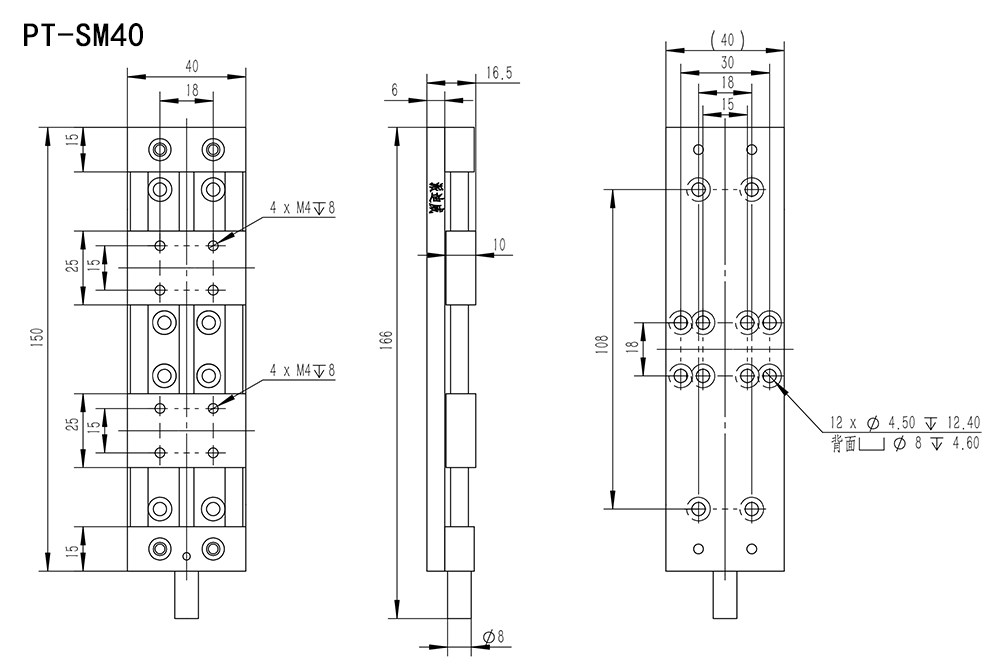

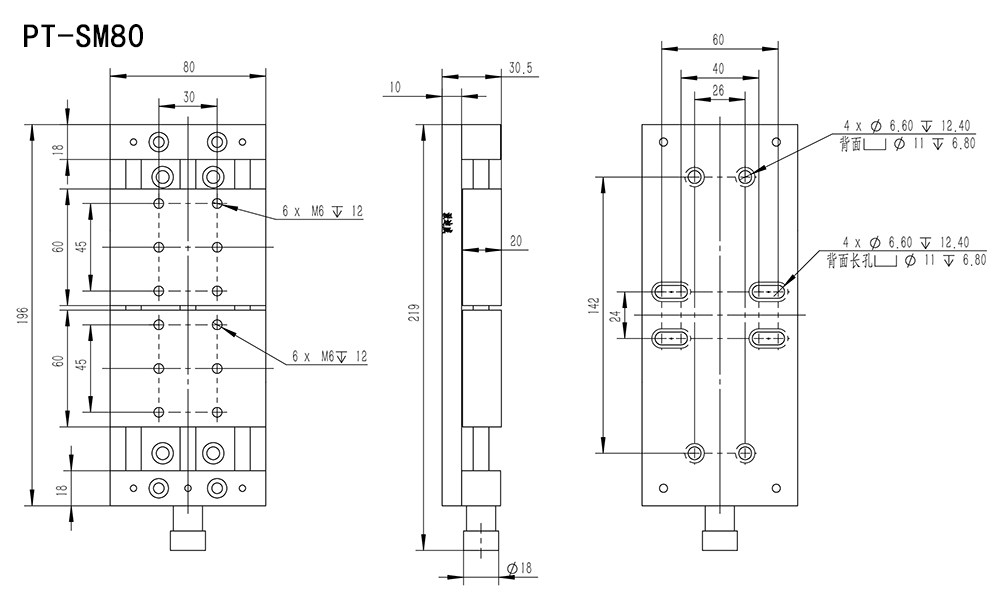

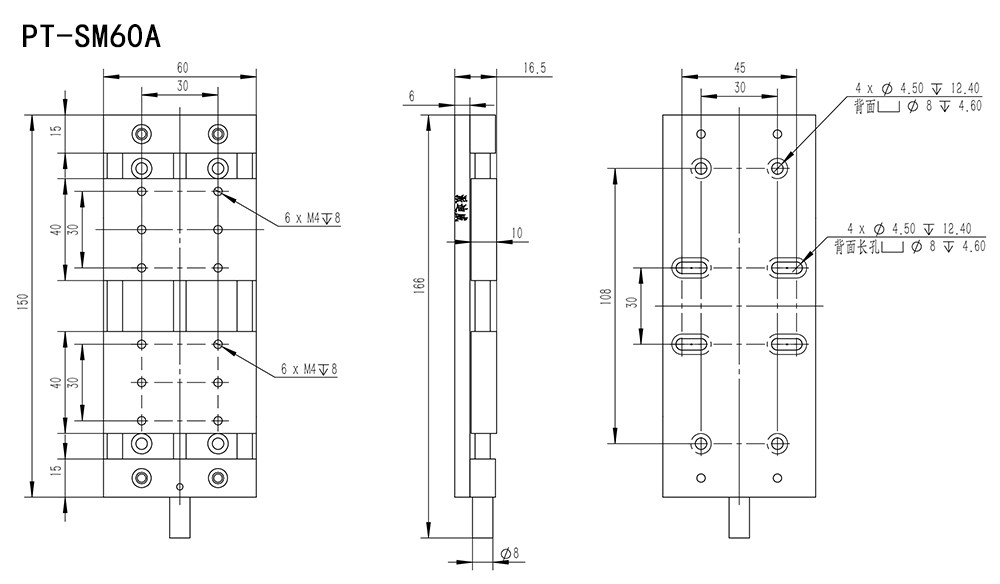

Product size:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
