Product features:

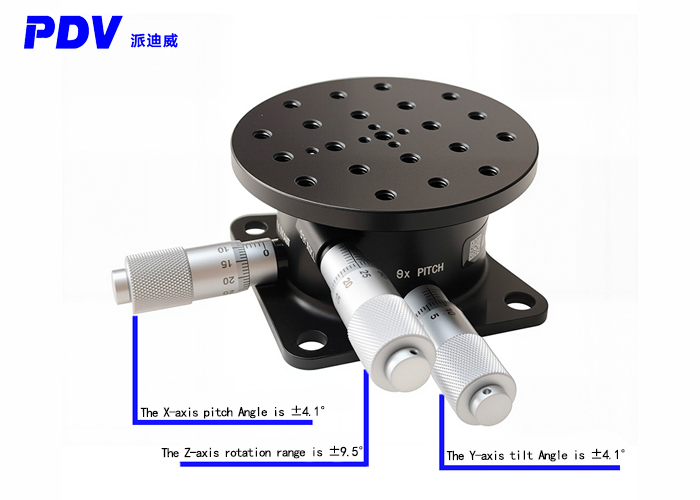

The micrometer head controls pitch, tilt and rotation.
Adjustment range: Tilt ± 4.1°, rotation ± 9.5°;
Countertop height: 37.5mm;
The hand-turned knob can limit and temporarily lock the θXYZ axes.
M4 screw hole array on the countertop, with a spacing of 12.5mm;
Product parameters:
| Model | PT-QX96 |
| Specification | ø70.0*37.5mm(Does not include a micrometer head) |
| Screw hole type | Tilt: ± 4.1°, accuracy 1.85 per revolution, resolution 0.037 Rotation: ± 9.5°, accuracy 1.7° per revolution, resolution 0.034° |
| Weight | 226.4g |
| Bearing | 2kg |
| Material | 7075Aluminum alloy |

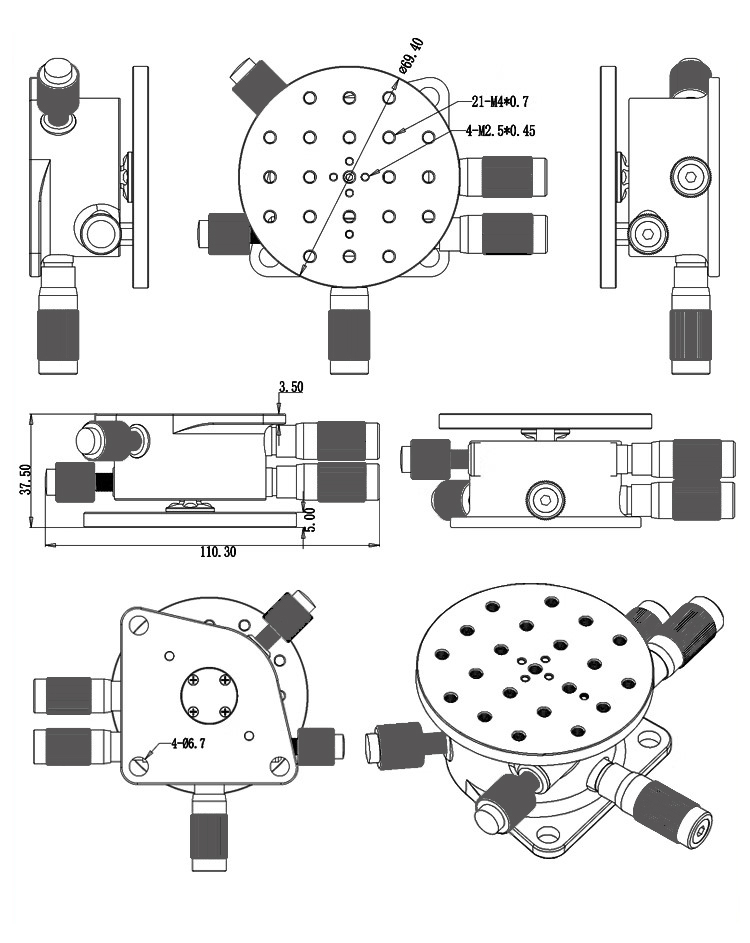

Product size:
