Product parameters：
| Model | SDZ-310R100 | ||
| X and Y-axis parameters | R-axis parameters | ||
| Countertop size | 100mm×100mm | Countertop size | φ100mm |

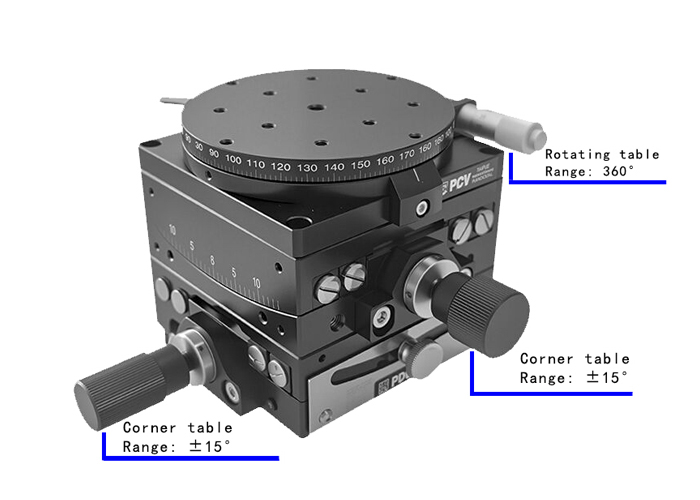

| Angle range | ±15° | Reading | 34’/circle |
| Rotation center height | 124mm | Itinerary | Rough tone360° |
| Deviation of rotation center | φ0.05 mm | Fine-tuning±5° | |
| Driving mode | Worm gear drive | Guide rail | Double bearings |
| Guide rail form | Type V guide rail + ball bearings | Load-bearing capacity | 5kgf（49N) |
| Drive position | Central drive | Parallelism | 20μm |
| Scale | 1° | Eccentricity | 50μm |
| Reading | 5‘ | Self-respect | 0.68kg |
| Adjustment quantity | 30"(Reference) | Material | Aluminum alloy |
| Sway sideways | 200" | Surface treatment | Black anodizing treatment |
| Tilt | 200" | —— | |
| Bearing | 5kg | —— | |
| Self-respect | 1.75kg | —— | |
| Material | Aluminum alloy | —— | |
| Surface treatment | Anodizing turns black | —— | |

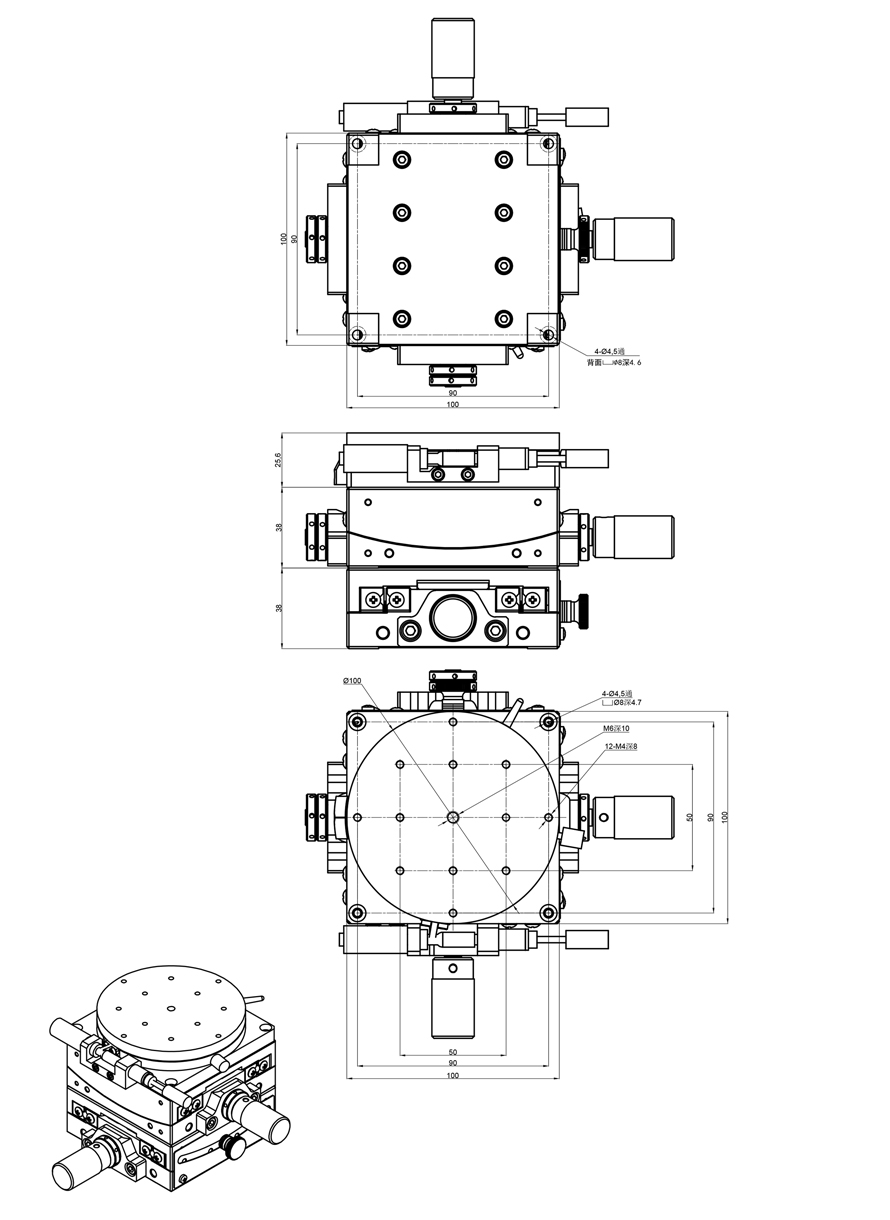

Product size：
