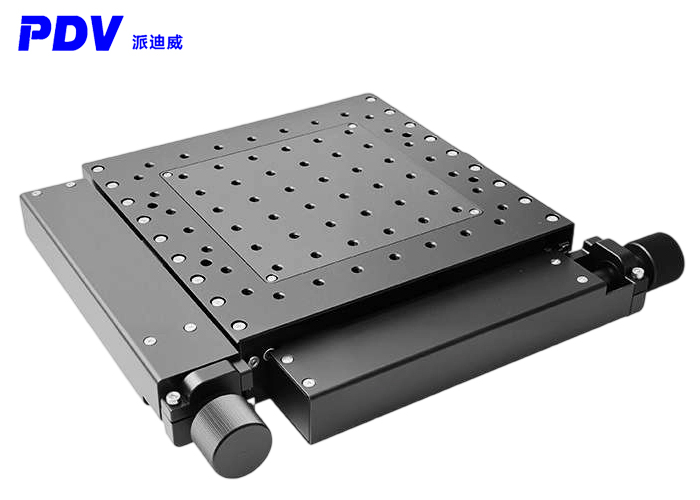

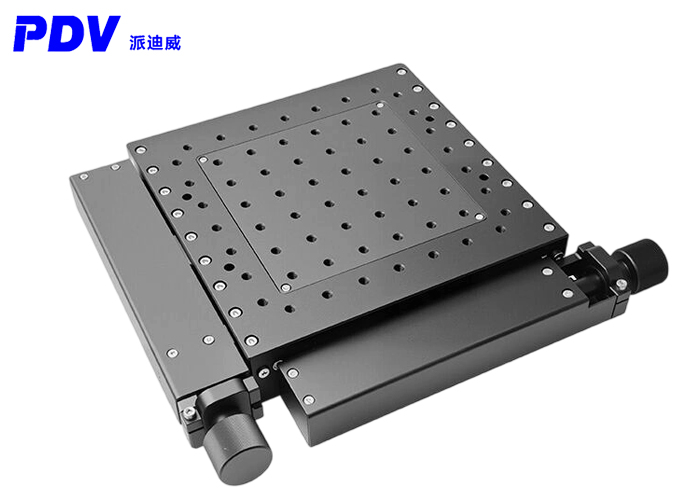

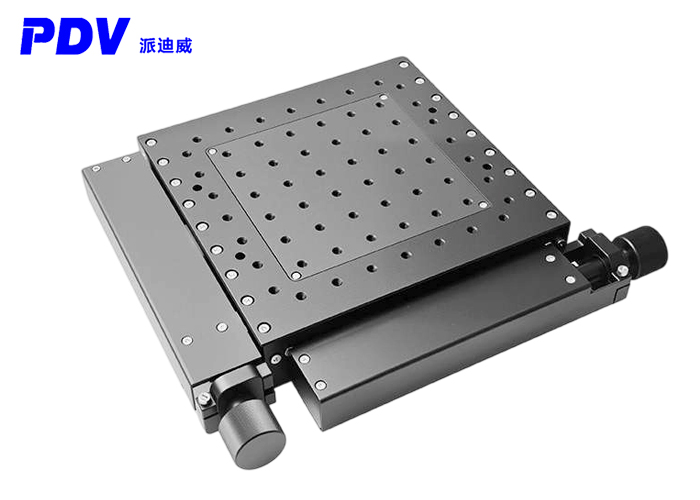

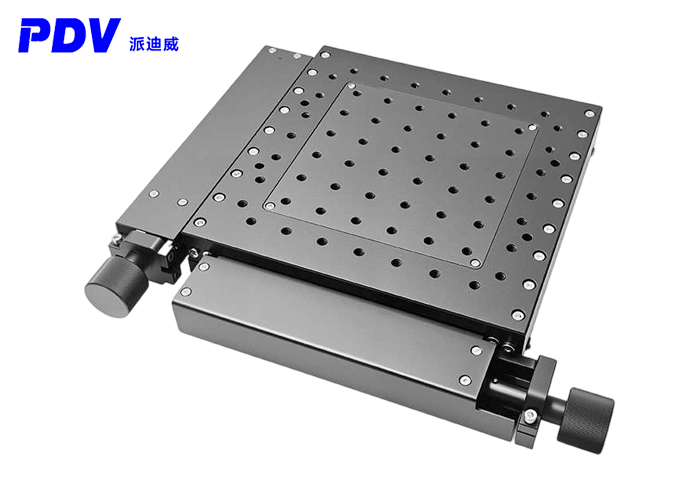

Product features：
1、The product has a compact and lightweight structure, making it suitable for use under light load and low speed conditions, as well as in scientific experiments
2、High-quality finely ground lead screw drive, small lead, and high resolution can be achieved with the same fine fraction
3、The ingenious design of the backlash return nut structure can minimize the clearance of the grinding lead screw pair
4、Precision square guide rails, comfortable movement, with the functions of lateral adjustment of guide rail preload and clearance elimination, can be used in multiple dimensions in combination
5、The finely ground base plate of the electro-slide table and the reasonable fixing method of the guide rails have greatly reduced the pitch and yaw of the electro-slide table, significantly improving the straightness and parallelism of the movement
Product parameters：
| Product model | PT-XY100(Manual ultra-thin model） | PT-XY100(Manual thick version） | |
| Structural parameters | X,Y axis travel | 100mm | 100 mm |
| Countertop size | 225x225mm | 300×300mm | |
| Screw lead | 2mm | 4 mm | |
| Guide rail | Advanced crossed roller guide rails | Advanced crossed roller guide rails | |
| Main materials | Aluminum alloy | Aluminum alloy | |
| Surface treatment | Anodizing turns black | Anodizing turns black | |
| The center bearing of the countertop | 10kg | 50 kg | |
| Platform self-measurement | 3.2kg | 8.3 kg | |
| Precision parameter | Repeat positioning accuracy | 10μm | 10μm |
| Straightness | 5μm | 5μm | |
| Motion parallelism | 15μm | 15μm | |
| Pitch | 50″ | 50″ | |
| Sway sideways | 25″ | 25″ | |
| Return clearance | 2μm | 2μm | |

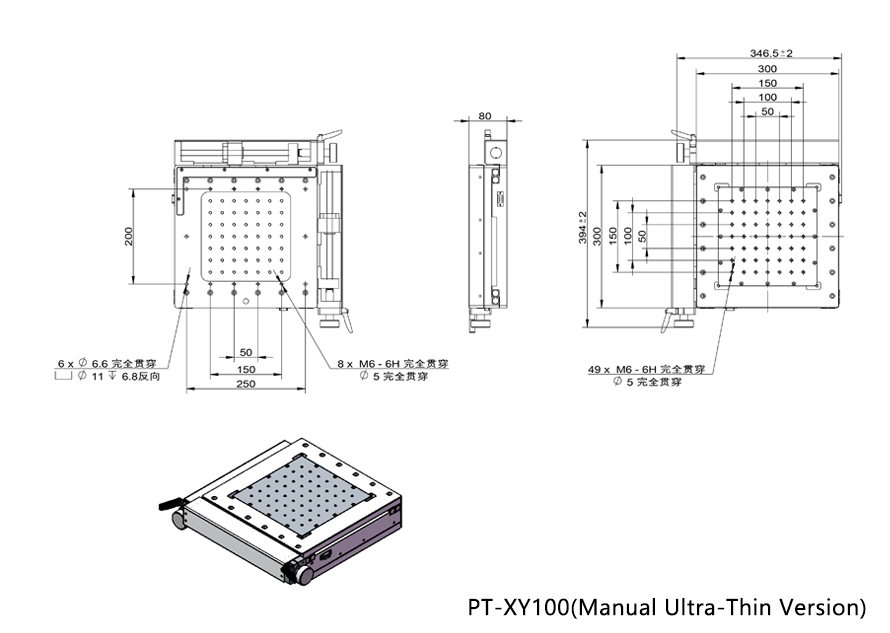

Product size：
