Parameters of the three-dimensional station:
| Model | XYZ 3D station |
| Direction of movement | The three directions of XYZ |
| Main material | Aluminum alloy (black anode) |
| Driving mode | Differential head |
| Countertop size | 125×125mm |

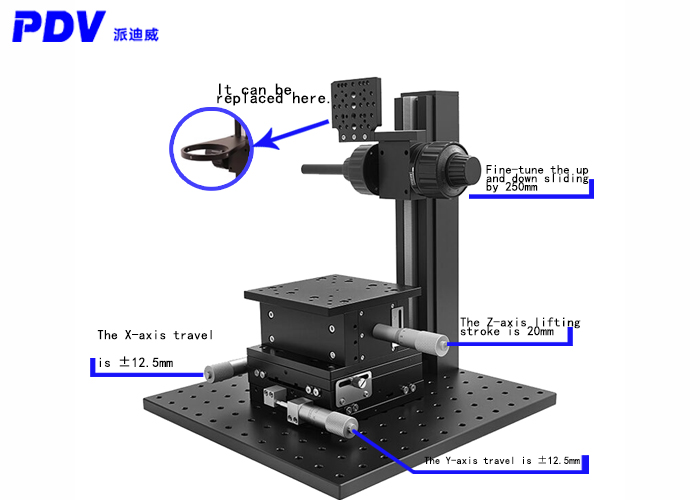

| Itinerary | XY axis: ±12.5mm; Z-axis: 20mm |
| Load | 147N（15kgf） |
| Scale | 0.01mm |
| Self-respect | 4.78kg |
Bracket parameters:
| Model | Bracket model | Base plate size | Center distance | Itinerary | Focus | Fine-tuning accuracy | Coarse and fine adjustment |

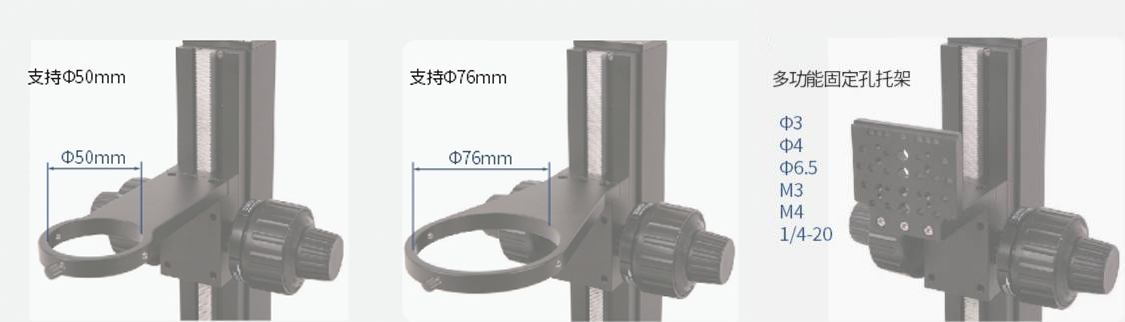

| φ50mm/76mm | It is equipped with a bracket featuring 50mm/76mm holes for coarse and fine adjustment | 160x250x10mm | 177mm | 250mm | Coarse adjustment, fine adjustment | 0.002mm | 0.214mm per circle |
| 380x250x10mm | |||||||
| Multi-functional bracket | It is equipped with a bracket featuring multi-functional fixed holes for coarse and fine adjustment | 380x250x10mm | 133mm |

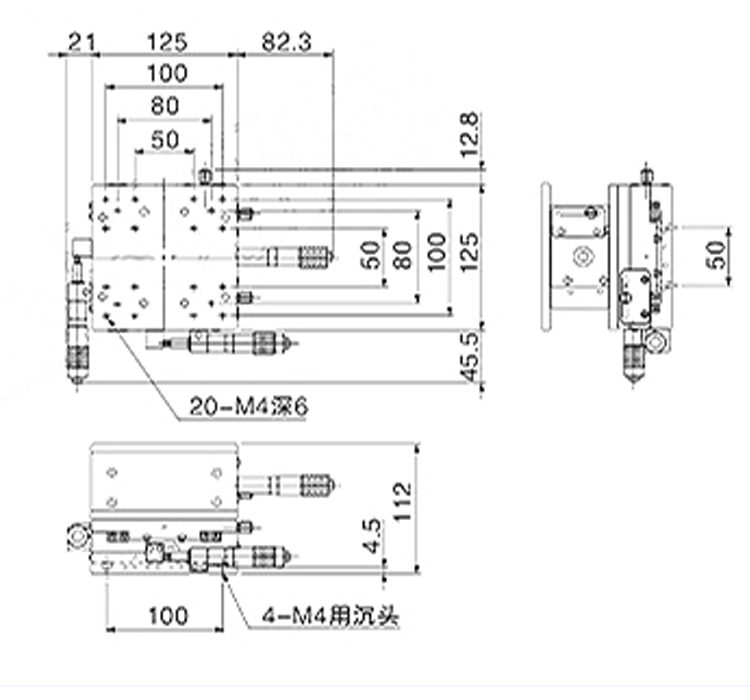

Three-dimensional table dimensions:

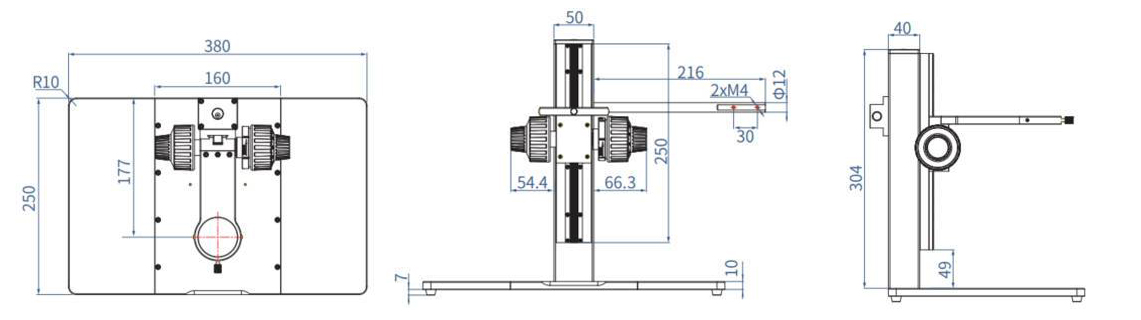

Bracket size:

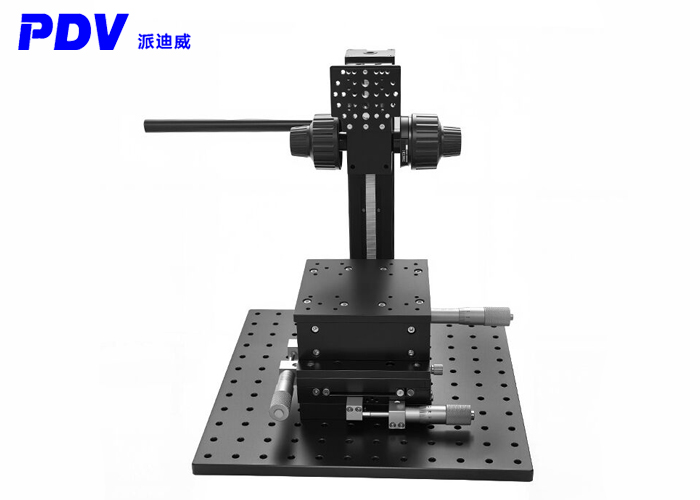

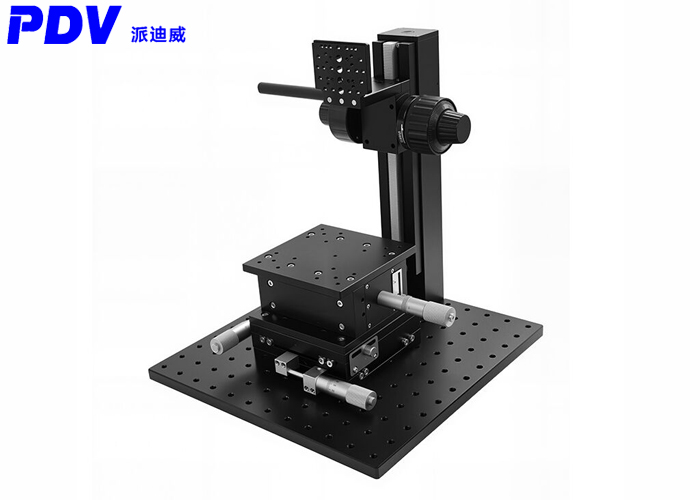

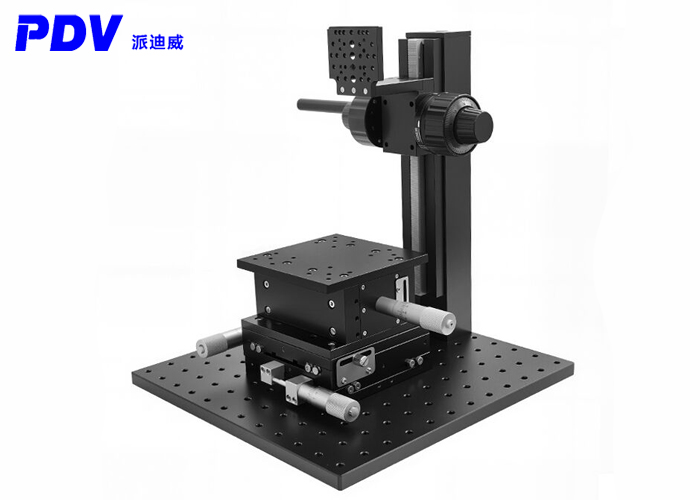

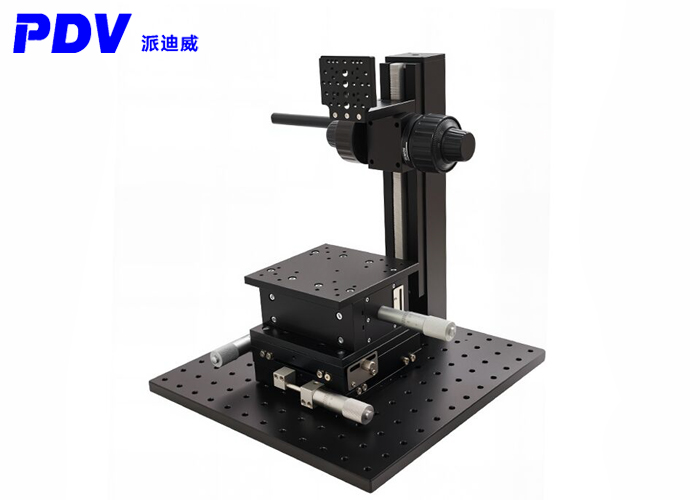

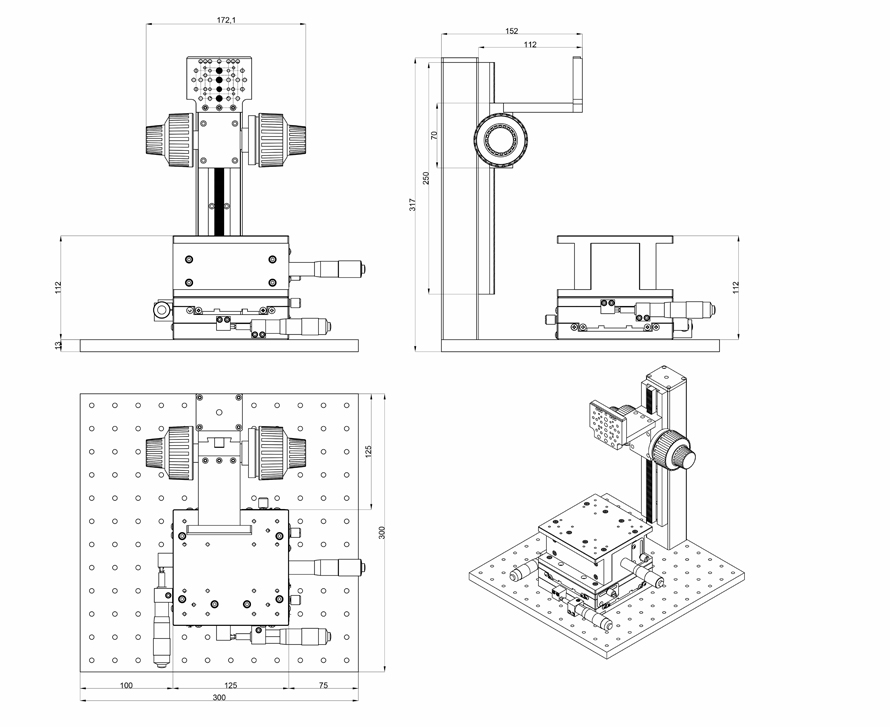

Overall combination table:
