Product features
1. The entire structure is made of stainless steel.

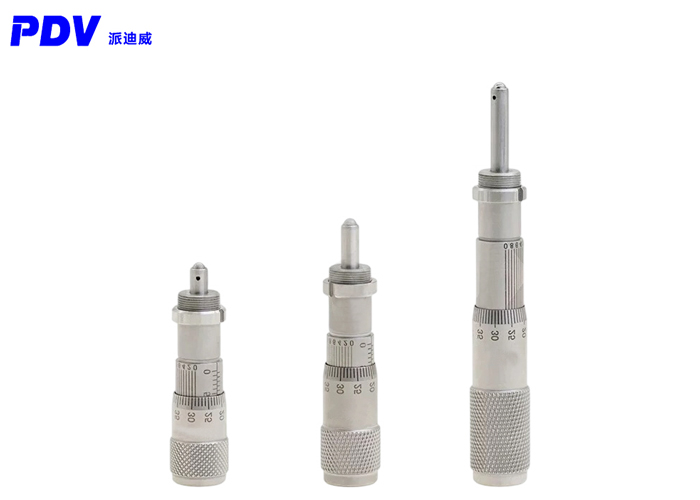

2. Multiple strokes are available, including 6mm, 13mm, and 25mm.

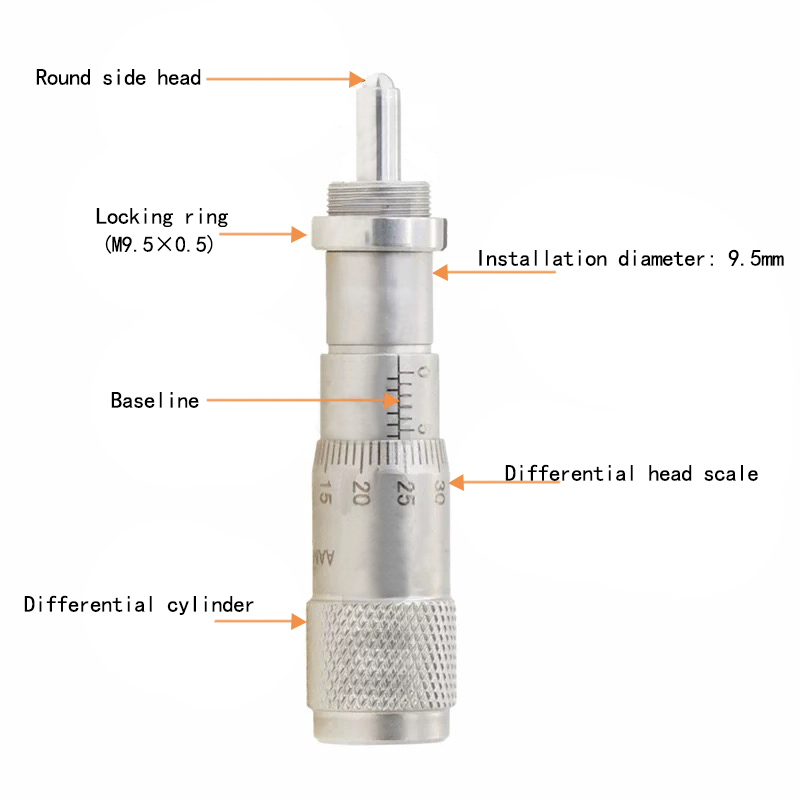

3. The installation diameter is 9.5mm, equipped with an M9.5x0.5 locking ring for installation and fixation.
4. The pitch is 0.5mm and it is directly read in increments of 10μm, with the vernier reading being 1μm.
5. The laser-engraved scale is clear, wear-resistant and durable.
6. Knurled adjustment sleeves for easy operation.
Product parameters：
| Model | A | B | C | Weight(g) |
| WFT-6T | MIN:4.4 MAX:10.4 | 48.9 | 26.9 | 28.5 |
| WFT-13T | MIN:2.1 MAX:15.1 | 58.6 | 30.1 | 33.5 |
| WFT-25T | MIN:7.2 MAX:32.2 | 88.4 | 47.2 | 47 |

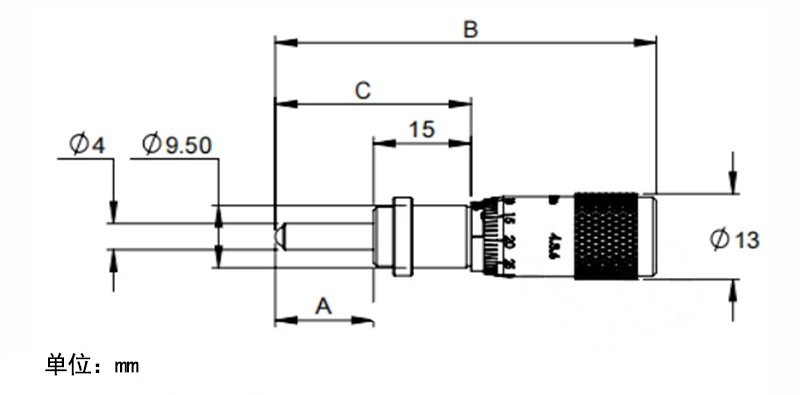

Product size：
