Product features

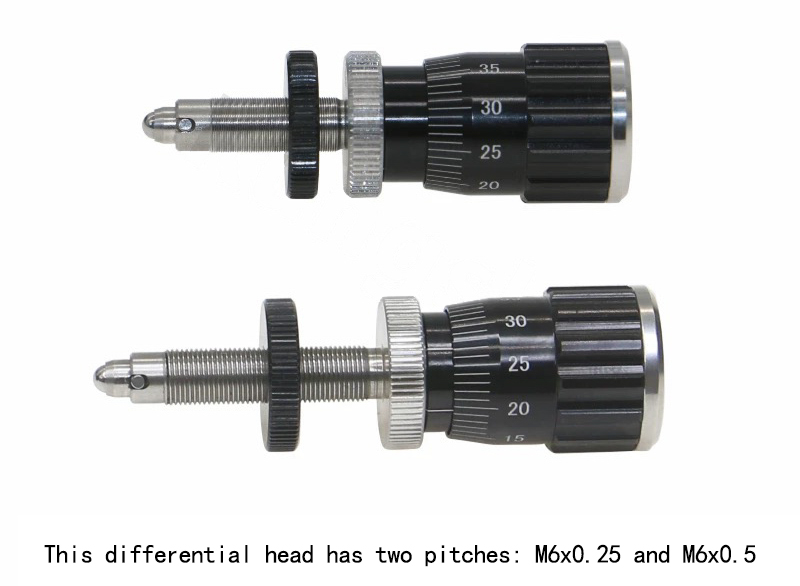

1.Pitch: 0.25mm / 0.5mm
2. Fine-tuned stroke: 0.3mm, fine-tuned resolution: 0.5μm
3. Two installation methods are available: screw-in type and with a bushing
4. The installation diameter is 9.5mm, equipped with an M9.5x0.5 locking ring for installation and fixation
5.Four screw lengths are available for selection: 18.25mm, 26.25mm, 28.5mm and 41.2mm
6. The laser-engraved scale is clear, wear-resistant and durable
7. Knurled adjustment sleeves for easy operation
Product parameters:
| Model | A | B | Fine-tuned itinerary | Fine-tuning resolution | Installation method |
| WFT-18S | 18.25 | M6×0.25 | 0.3 | 0.5μm | Spin in |
| WFT-26S | 26.25 | M6×0.25 | 0.3 | 0.5μm | Spin in |
| WFT-C26 | 26.25 | M6×0.5 | 0.3 | 0.5μm | Spin in |
| WFT-C45S | 41.2 | M6×0.25 | 0.3 | 0.5μm | Spin in |
| WFT-C32 | 28.5 | M6×0.5 | 0.3 | 0.5μm | With bushing |
| WFT-C45 | 41.2 | M6×0.5 | 0.3 | 0.5μm | With bushing |
| WFT-C45P | 41.2 | M6×0.25 | 0.3 | 0.5μm | With bushing |
Product size

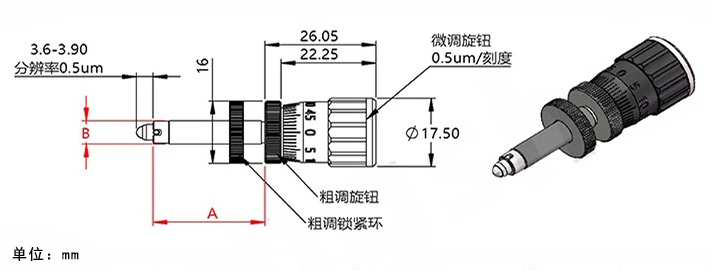

WFT-18S\WFT-26S\WFT-C26\WFT-C45S

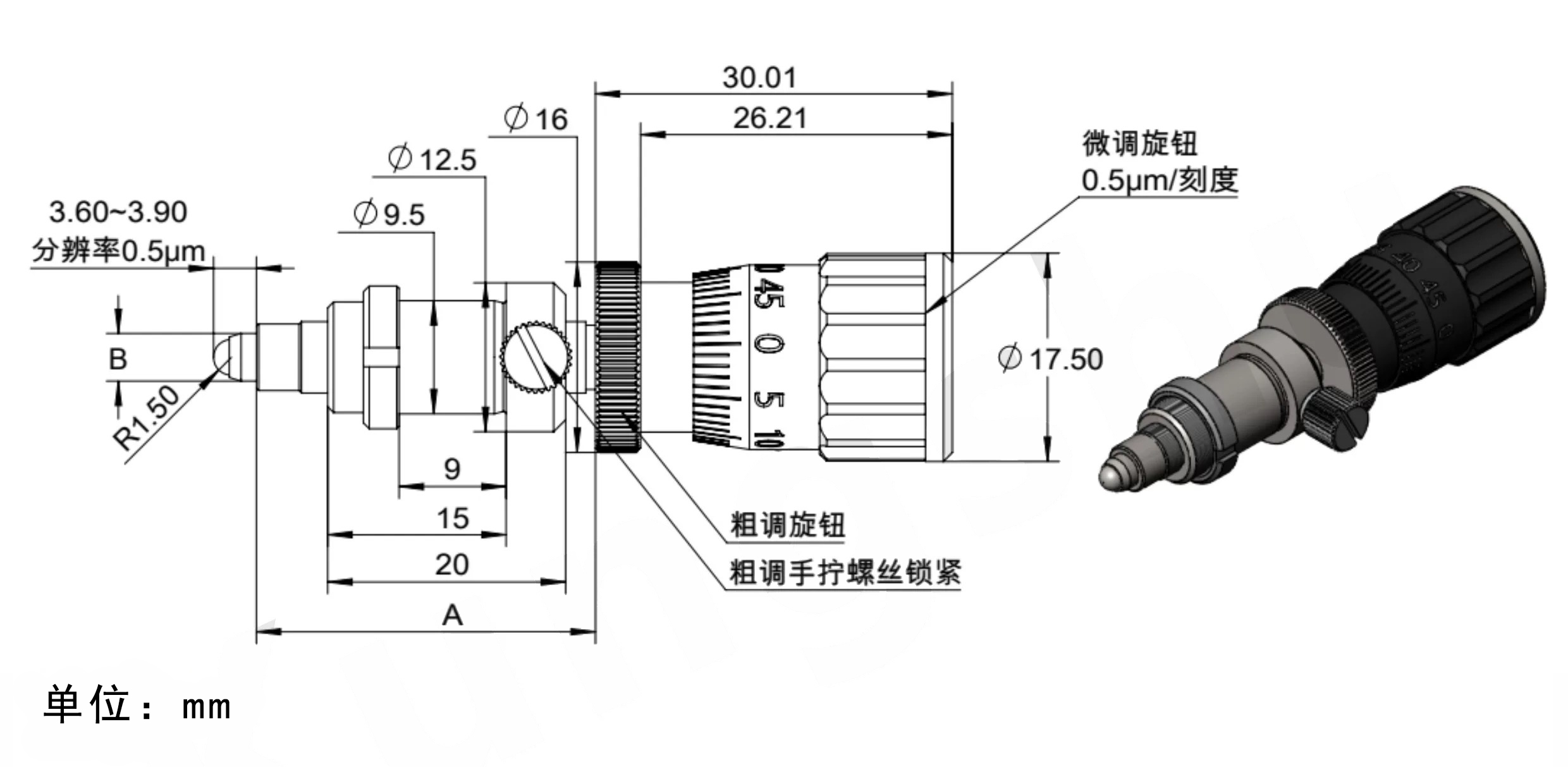

WFT-C32\WFT-C45\WFT-C45P

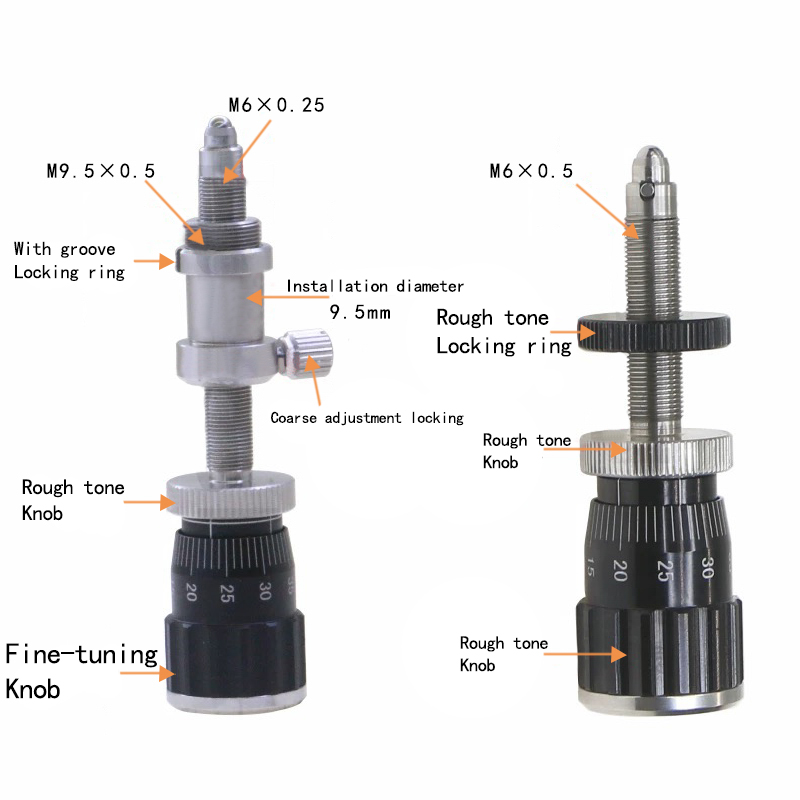

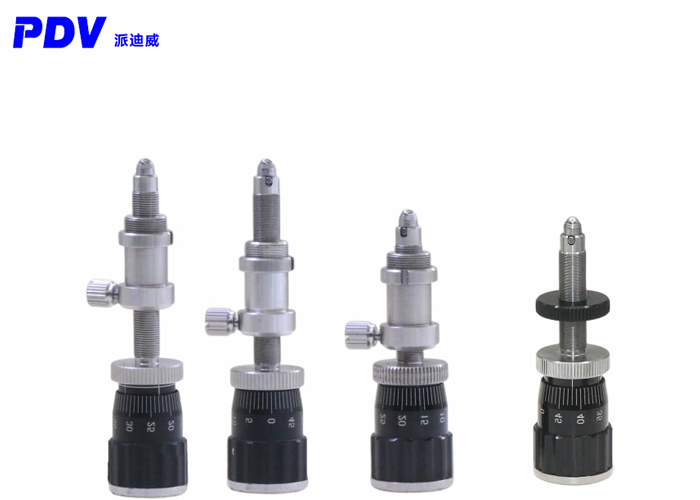

Detail display
