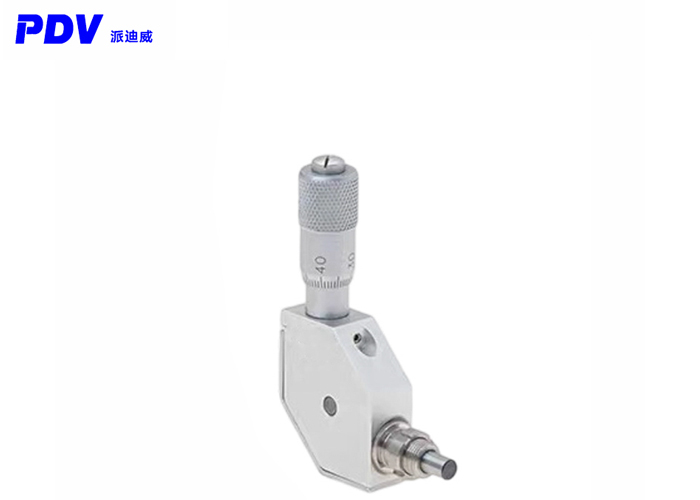

Product features
1. Made of entire stainless steel material;
2. Compatible for use in vacuum environments;
3. It is often used for assembling products or in series where space is limited.
4. The graduation value is 0.01mm, with a movement of 0.5mm per revolution.
5. Two stroke options are available: 6.5mm and 13mm.

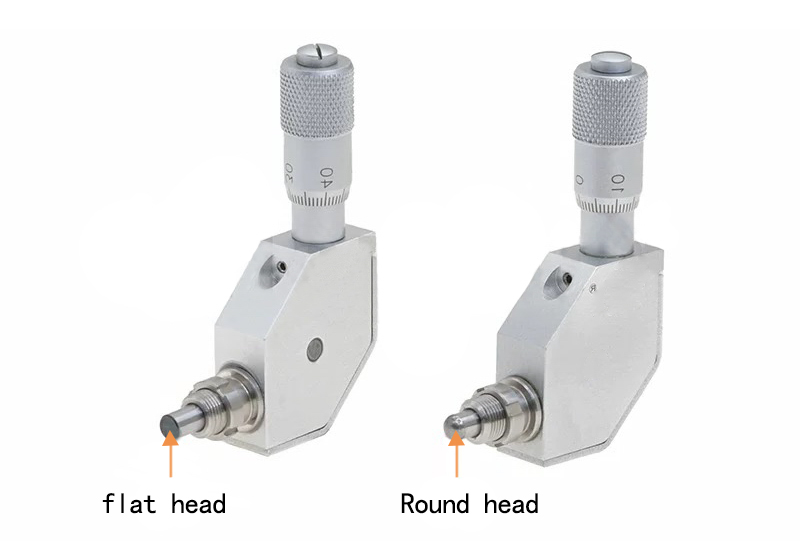

6. Two end face shapes are available for selection, including round head and flat head.
7. Insert type with a locking ring.
Product parameters:
| Model | A | Weight(g) | Material |
| WFT-6.5R | Round head | 22.5 | Stainless steel |
| WFT-6.5F | Crew cut | ||
| WFT-13R | Round head | 62.5 | |
| WFT-13F | Crew cut |
Product size

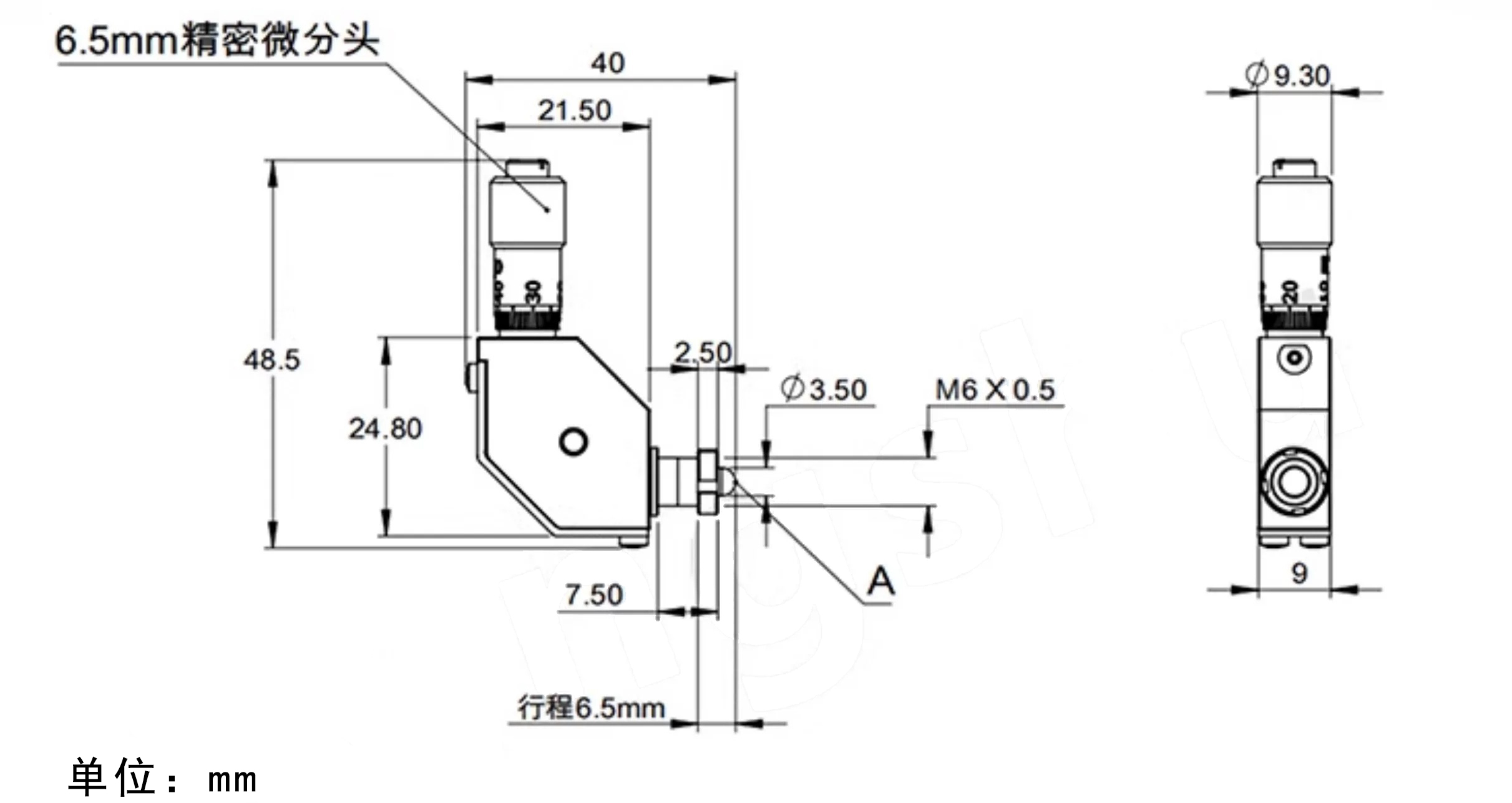

WFT - 6.5 R \ WFT - 6.5 F

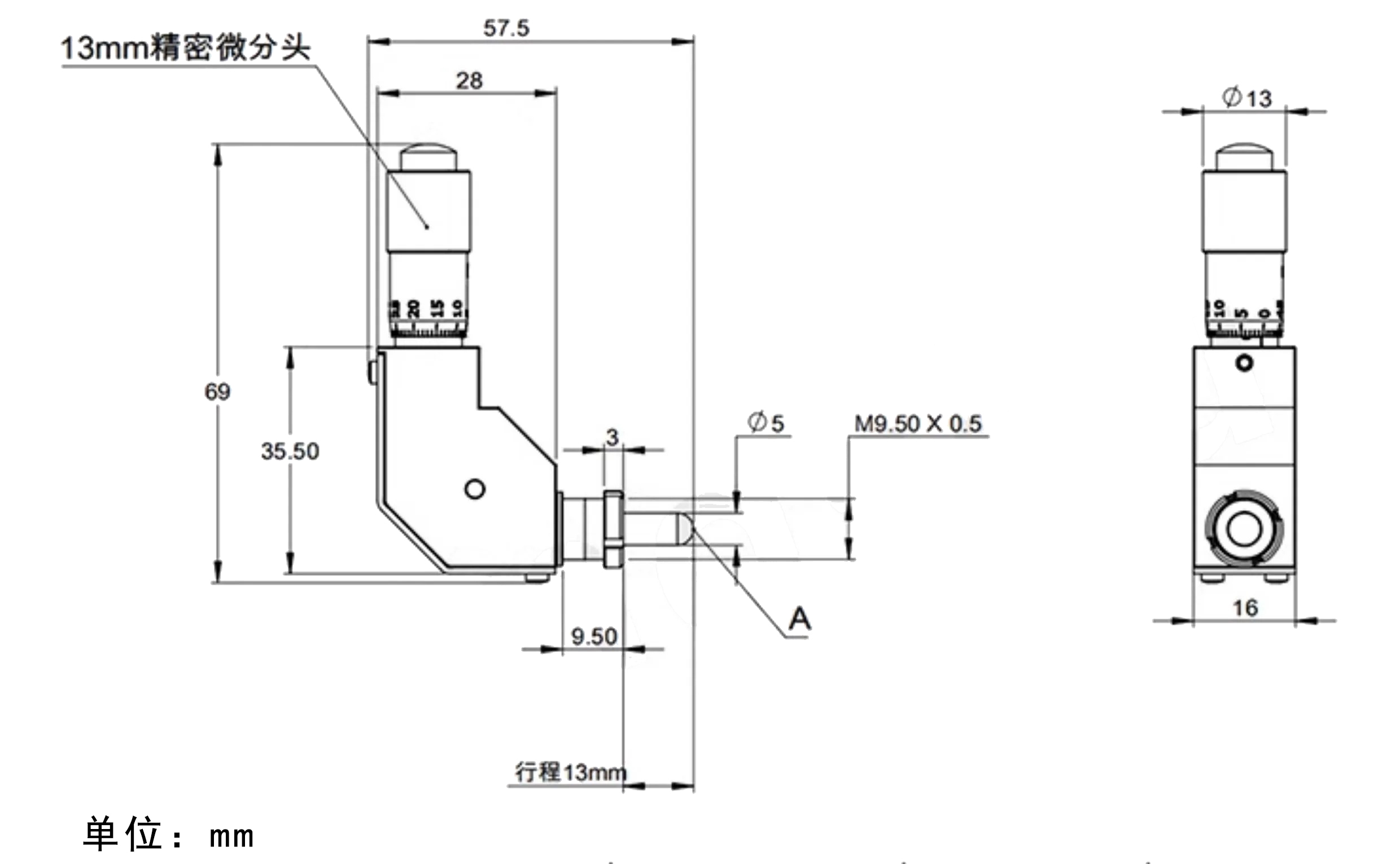

WFT-13R\WFT-13F

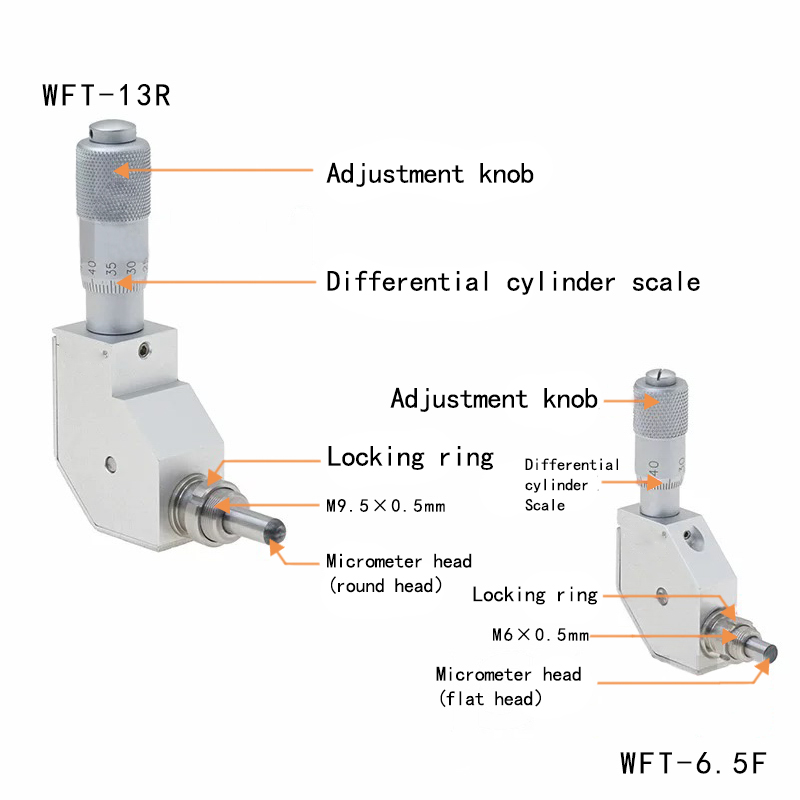

Detail display:
