Product features
1、It can control a four-axis stepper motor or a servo motor.
2、Motion control can be achieved through the operation panel.
3、Parameters such as pulse equivalent, running speed and running distance, signal level, and backlash can be set on the operation panel.

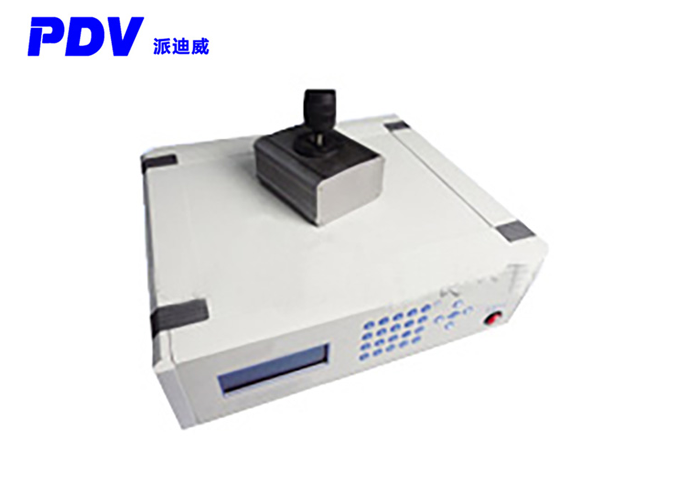

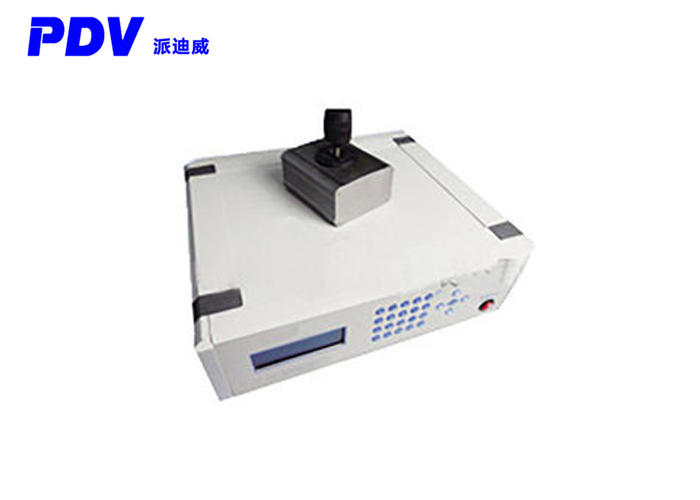

4、An external joystick can be connected for movement operation. The position data operated by the joystick can be synchronized to the display screen and software.
5、It has a universal I/O interface, with 8 outputs and 4 inputs. Peripheral devices can be controlled through the I/O interface by software.
6、 LCD display.
7、The relevant parameters and the movement of related devices can be set and controlled through the upper computer software via the USB interface.
8、It can move four axes simultaneously and perform circular interpolation on the XY axes.
9、The movement of program segments can be achieved through motion control software, and the pause time between motion sentences can be set.
10、The relevant parameters of each axis can be set on the software and the Settings can be saved to the software and the board card.
11、There are corresponding function libraries, which facilitate users to develop their own motion control software.

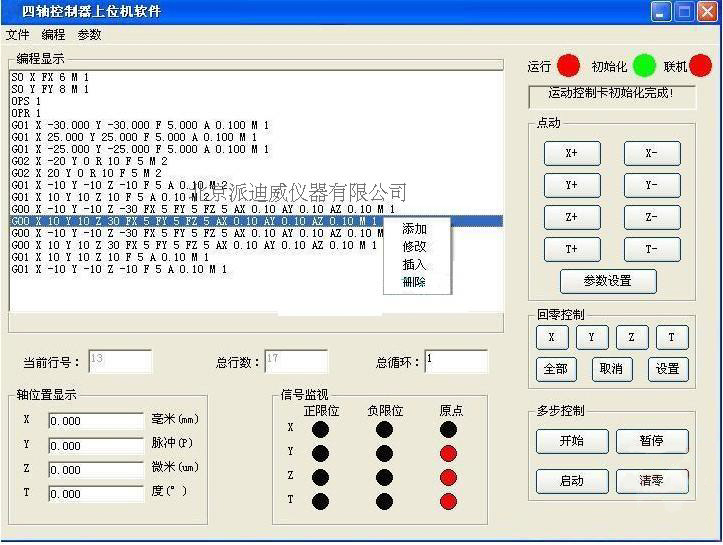

Software interface
| Model | Meaning |
| Motion controller: PT-KZ02 | One-dimensional stepping, no joystick |
| Motion controller: PT-KZ02 | Two-dimensional stepping, no joystick |
| Motion controller: PT-KZ02 | Three-dimensional stepping, no joystick |
| Motion controller: PT-KZ02 | Four-dimensional stepping, no joystick |
| Motion controller: PT-KZ01 | One-dimensional stepping, with joystick |
| Motion controller: PT-KZ01 | Two-dimensional stepping, with joystick |
| Motion controller: PT-KZ01 | Three-dimensional stepping, with joystick |
| Motion controller: PT-KZ01 | Four-dimensional stepping, with joystick |
