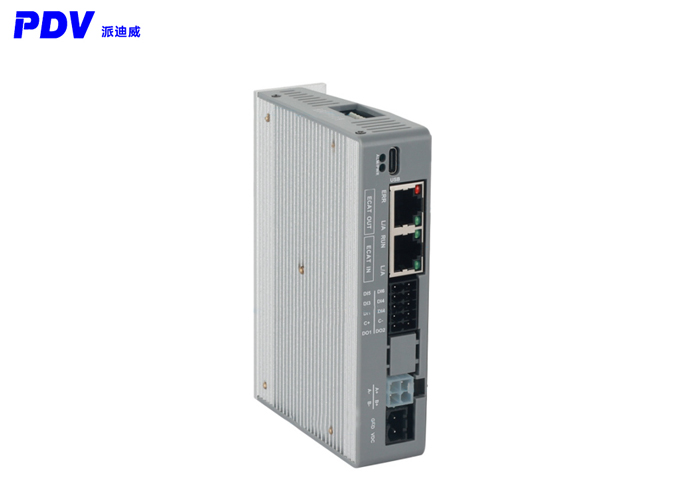

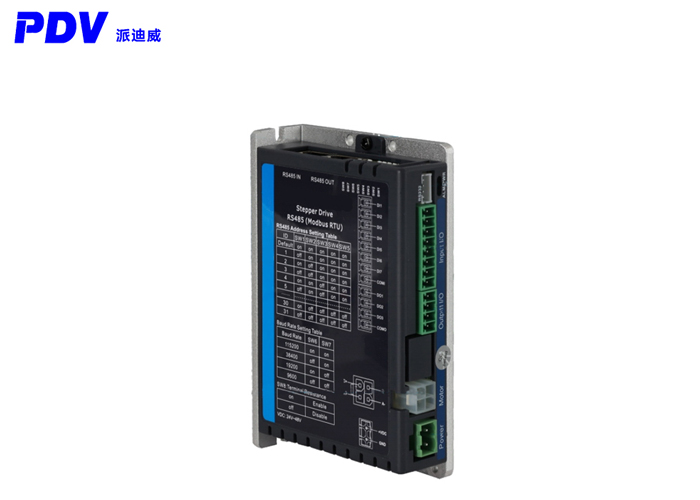

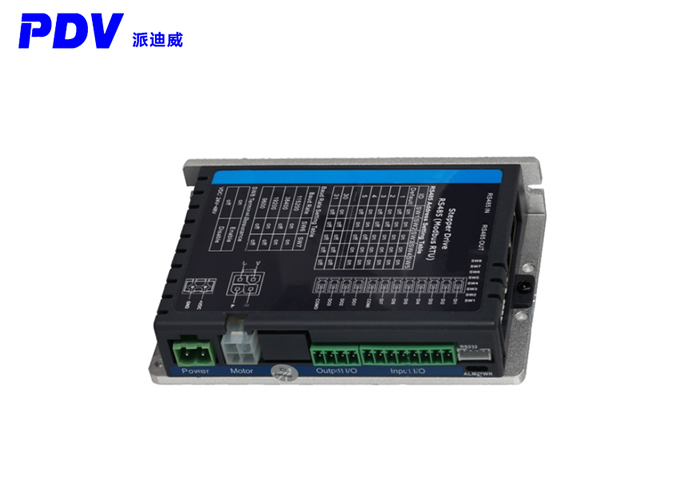

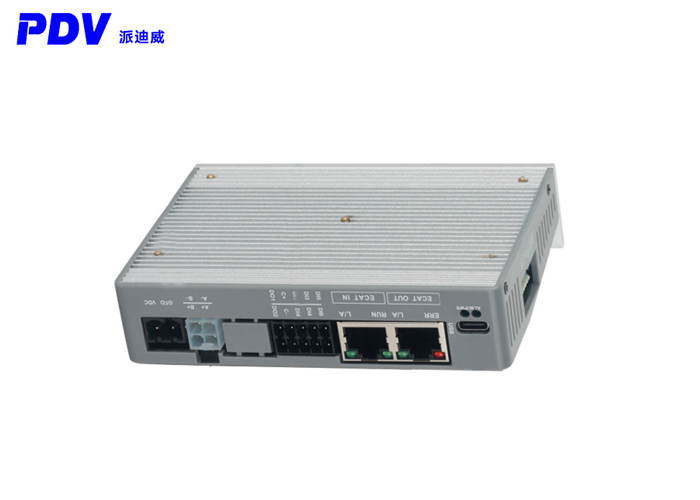

Product parameters:
| Basic specifications | Model | DM2B-RS542 RoHS | DM2B-RS556 RoHS | DM3B-EC542 RoHS | DM3B-EC556 RoHS |
| Output peak current（A） | 4.2 | 5.6 | 4.2 | 5.6 | |
| Supply voltage(V） | 20~50VDC | 20~50VDC | 20~50VDC | 20~50VDC | |
| Matching motor (frame) | 35/42 | 57/60 | 35/42 | 57/60 | |
| size(mm) | 118×79.5×25.5 | 118×79.5×25.5 | 118×90×28 | 118×90×28 | |
| Certification | —— | CE（CTI)；UL（If you need to purchase products with UL certification, please contact us） | |||
| Interface configuration | Debugging port | CABLE-PC-1 USB2.0-232Converter | CABLE-PC-1 USB2.0-232Converter | Type-c | Type-c |
| Digital input | 7DI | 7DI | 6DI | 6DI | |
| Input specifications | The control signal is 12 to 24V, and the functions support origin, positive limit, negative limit, emergency stop, path address, trigger command, return to zero trigger, etc | The control signal is 12 to 24V, and the functions support probe input, origin, positive limit, negative limit, emergency stop, general input, etc | |||
| Digital output | 3DO | 3DO | 2DO | 2DO | |
| Output specification | OC output, with a maximum output of 100mA, supports functions such as alarm, brake, position completion, and zero return completion | OC output, maximum pull-up 30V, maximum output 100mA, functions support alarm, brake, general output, etc | |||
| Motor winding interface | 2*2PIN MOLEX | —— | |||
| Power input port | 2PINScrew locking terminal | —— | |||
| Control specification | Communication protocol standard | Modbus RTU | EtherCAT | ||
| Control mode | Pr16 path segments (absolute, relative, velocity, return-to-zero mode) | CSP\PP\PV\HM | |||
| Synchronous mode | —— | DCSynchronization and Free run mode | |||
| Synchronous cycle | —— | 250us~20ms | |||
| Debug software | MotionStudio | MotionStudio、NMSMulti-machine management software | |||
| Environmental parameters | Application scenarios | It should not be placed beside other heat-generating equipment. It should be kept away from dust, oil mist, corrosive gases, places with excessive humidity and strong vibration. Flammable gases and conductive dust are strictly prohibited. | |||
| Usage environment | Operating temperature: 0-50℃ Storage temperature: -20℃ to 65℃ | ||||
| Humidity | 40~90%RH | ||||
| Vibration | 10~55Hz/0.15mm | ||||
| Installation | Vertical installation or horizontal installation | —— | |||
| Cooling method | Natural cooling | ||||

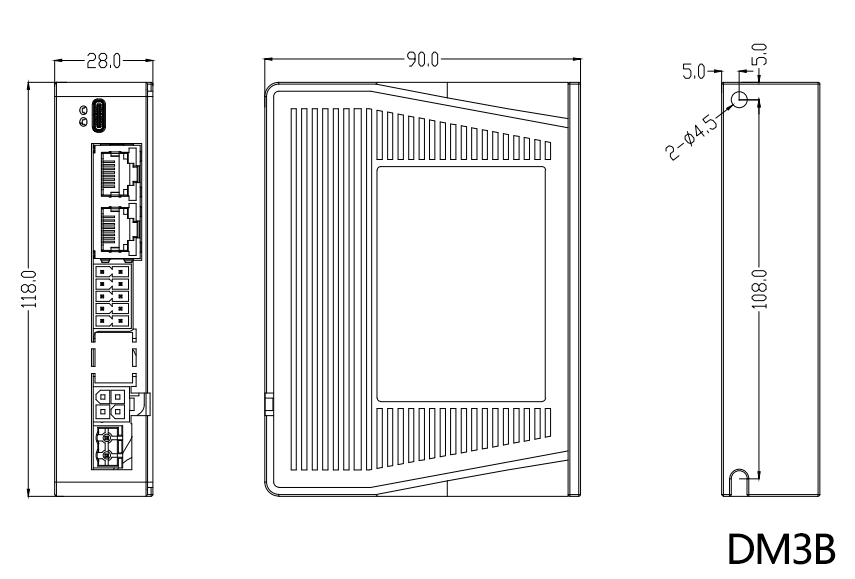

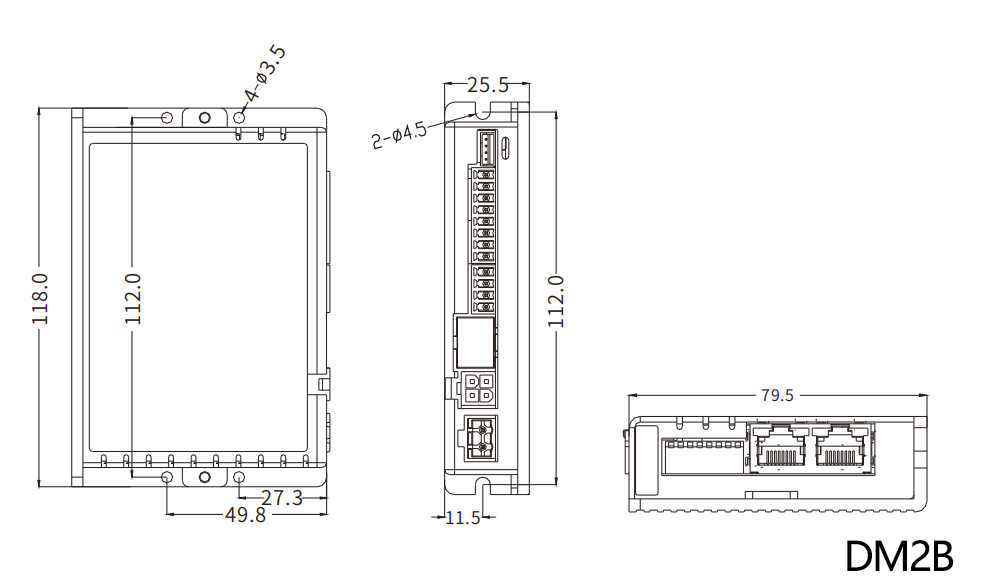

Product size:

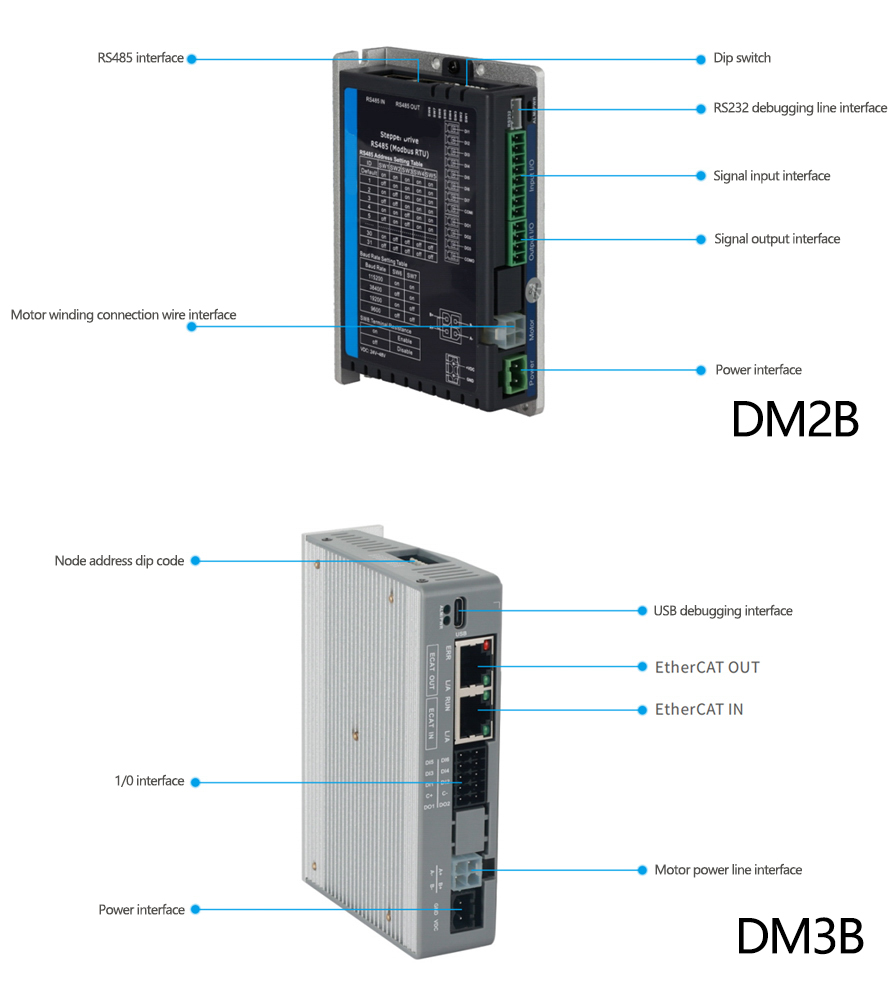

Interface description:

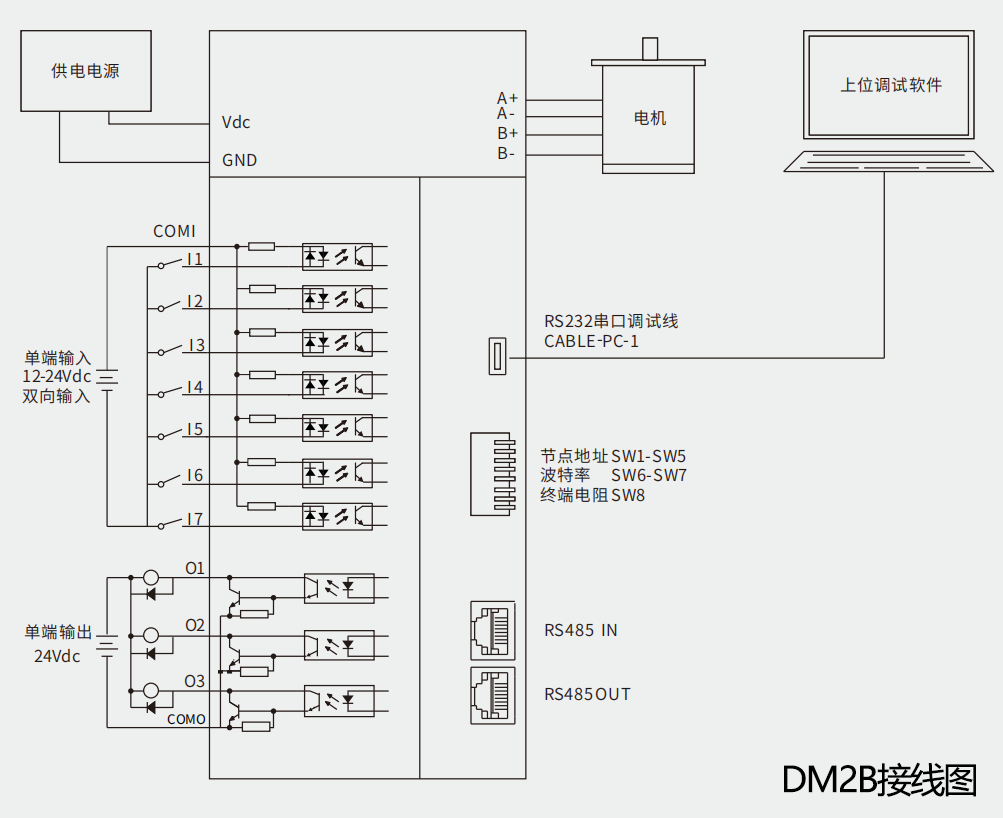

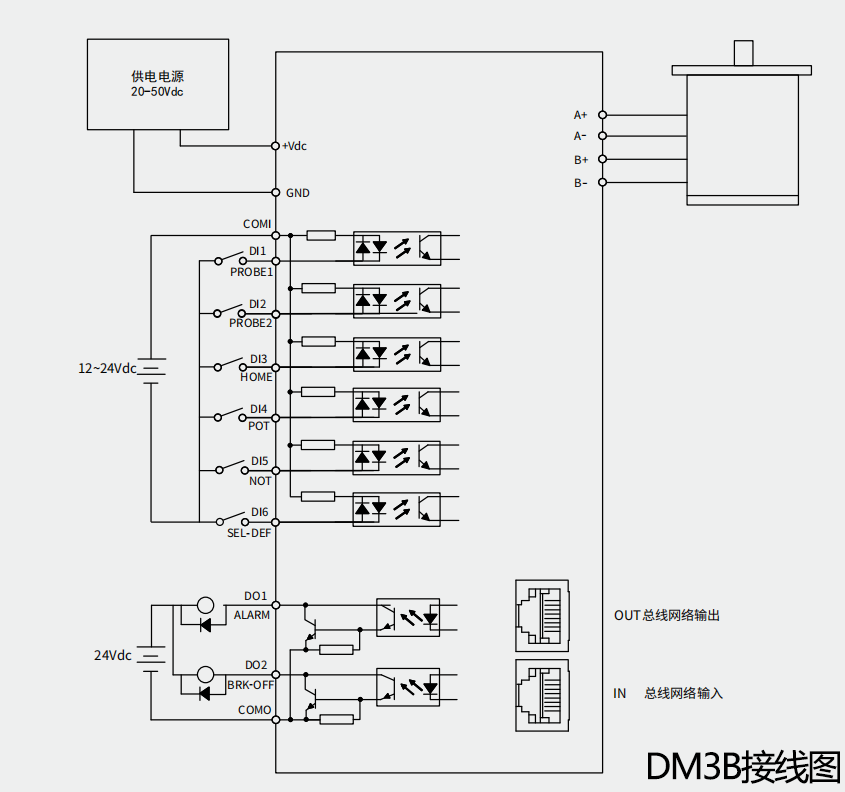

Electrical wiring diagram:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
