Product Name: Motion controller KZ-100

Share
Specification:

  1、General


The mobile stage controller/driver is used for driving 2-phase  stepper motor. It can drive 4 motors independently at most. You can use its controlling stick to make motors run/stop manually. It also can be controlled by a PC through RS232 interface.

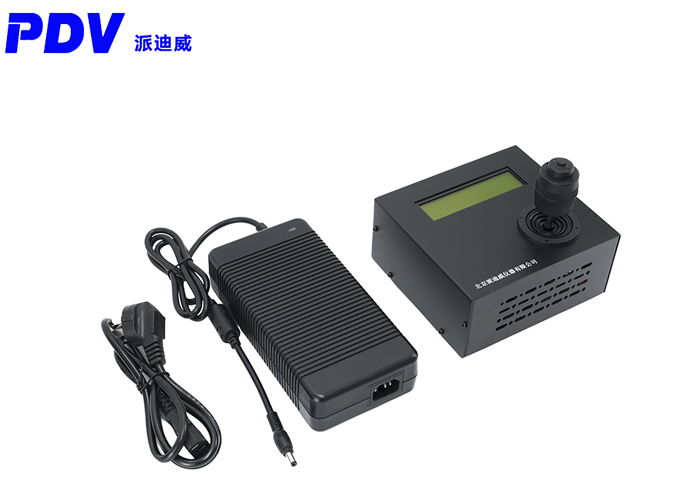

Motion controller KZ-100

2、Connection




(1)    X-DIR:Connect this port to X direction stepper motor of mobile stage using a DB9(female)-DB9(male) cable. Connection/Disconnection only when POWER OFF!


(2)   Y-DIR:Connect this port to Y direction stepper motor of mobile stage


using a DB9(female)-DB9(male) cable. Connection/Disconnection Only when POWER OFF!







(3)    Z-DIR:Connect this port to Z direction stepper motor of mobile stage using a DB9(female)-DB9(male) cable. Connection/Disconnection only when POWER OFF!

(4)    L-DIR:Connect this port to L direction stepper motor of mobile

stage         using         a         DB9(female)       -   DB9(male)       cable.



Connection/Disconnection only when POWER OFF!

(5)   RS232:RS232 port, Connecting to RS232 port of PC。

(6)   DC18V3A(Power Supply):Using AC adapter in accessory。

3、Programming

(1)      The mobile stage controller/driver communicates with PC using interface of RS232;

(2)   RS232 prototype:Baud rates 57600,no parity,8data bits,1stop bits;

(3)    Method:PC sends 1 byte to the mobile stage controller/driver, then waits for the mobile stage controller/driver sending back a byte of 0Dh(ASCII of Return), until now the PC can send next byte to the mobile stage controller/driver. Repeat former procedure to finish a 4-byte-command。



(4)   Send a synchronous command before sending programming command.



The synchronous command is: 55h, 55h, AAh, 55h;

(5)

1st byte 2nd byte3rd byte4th byteDescription
00h00h-X speed Bit15~bit8      of Bit7~bit0  of Set speed of axis of X 、
(4)Command Set

function

Imperative form type

Functional description

Remarks

example

Set the running speed

SXn;

SYn;

SZn;

SLn;

X travels at speed n

Y travels at speed n

Z travels at speed n

L travels at speed n

n=-4096~4095

speedV(Rotation/second)=n× 55/220

SX100;

SY-234;

SZ1000;

SL4095;

Upload data

UX;

UY;

UZ;

UL;

US;

UM;

UH;

Upload X location data

Upload Y location data

Upload Zlocation data

Upload L location data

Upload Limit Data Upload   Running Mode Data

Upload Zero Data

Returns 9 bytes

Returns 9 bytes

Returns 9 bytes

Returns 9 bytes

Returns 1 bytes

Returns 1 bytes

Returns 1 bytes

UX;

UY;

UZ;

UL;

US;

UM;

UH;

Setting up operation   displacement

DXn;

DYn;

DZn;

DLn;

X travel displacement n

Y travel displacement  n

Z travel displacement n

L travel displacement n

n=-230~230-1

Unit:Microstep

1Microstep360/12800degree0.028125degree

DX350;

DY-9987;

DZ-3456; DL100020;

Set the Maximum Speed

MXn;

MYn;

MZn;

MLn;

The maximum speed limit for X is n.

The maximum speed limit for Y is n.

The maximum speed limit for Z is n.

The maximum speed limit for L is n.



n=0~32767

speedV(Rotation/second)=n× 55/220

MX2560;

MY200;

MZ1002;ML4096;

Arbitrary velocity mode (See follow-up examples for   illustrations)

NXn

NYn

NZn

NLn

Prepare   speed control data传,N is the number of periods.

n=0682(OnlyX)

n=0341(Only useXY) n=0170(XYZorXYZL)

NX50;

NL120;

LTn;

Download time data n

n=0230

LT100000;

LAn;

Download acceleration data n

n=-32767~32767

LA256;

RXn;

RYn;

RZn;

RLn;

X Repetition Number

Y Repetition Number

Z Repetition Number

L Repetition Number(Repetition = Total Running   Number-1)

n=065535

RY132;

RZ384;

TMn;

Start   running at any speed



Cheng. N   is the channel control value and the sum of the weighted values of the   channels in arbitrary speed mode.



Definition:   Participation in arbitrary speed mode, for example:



X-channel   weighted value 1;



Y-channel   weighted value 2;



Z-channel   weighted value 4;



The   weighted value of L-channel is 8.



The   weighted value of non-participation is 0.

n=0~15

TM1;   (X Channel Running)



TM2;   (Y Channel Running)



TM4;   (Z channel operation)



TM8;   (L channel operation)



TM10;   (YL channel running)



TM3;   (XY channel running)



TM7;   (XYZ channel running)



TM15;   (XYZL channel running)



TM0;   (XYZL channel)



Put forward arbitrary speed mode)

ARn;

Read arbitrary speed mode data   from SD card.

n=0~8192

AR8;

ASn;

Save   Arbitrary Speed Mode Data to SD Card

n=0~8192

AS10;

Stop

PA;

Stop all operations   immediately.





* ××h: Byte of any value of, but it can not be omitted 。

(6)Example 1: Set X axis motor speed value to 280。

Sending synchronous command:

Sending 55h, waiting 0Dh; Sending 55h, waiting 0Dh; Sending AAh, waiting 0Dh; Sending 55h, waiting 0Dh;

Sending programming command: Sending 00h, waiting 0Dh; Sending 00h, waiting 0Dh; Sending 01h, waiting 0Dh; Sending 18h, waiting 0Dh;

(7) Example 2: Upload position value and forward/backward limit bits 移to PC. Suppose current display is:

1234567     -5789123

7654321     -3219876

Sending synchronous command:

Sending 55h, waiting 0Dh; Sending 55h, waiting 0Dh; Sending AAh, waiting 0Dh; Sending 55h, waiting 0Dh;

Sending programming command: Sending 01h, waiting 0Dh;

Sending ××h (Any value, NO omitted.), waiting 0Dh; Sending ××h (Any value, NO omitted.), waiting 0Dh; Sending ××h (Any value, NO omitted.), waiting 0Dh;

PC receiving 33 bytes from the mobile stage controller/driver:

1st byte:

bit0=0, X reached backward limit position; bit0=1, X not reached backward limit position; bit1=0, X reached forward limit position; bit1=1, X not reached forward limit position;

bit2=0, Y reached backward limit position; bit2=1, Y not reached backward limit position; bit3=0, Y reached forward limit position; bit3=1, Y not reached forward limit position; bit4=0, Z reached backward limit position; bit4=1, Z not reached backward limit position; bit5=0, Z reached forward limit position; bit5=1, Z not reached forward limit position; bit6=0, L reached backward limit position; bit6=1, L not reached backward limit position; bit7=0, L reached forward limit position; bit7=1, L not reached forward limit position;

2nd ~9th byte:    X position value in ASCII.

In the example X= 1234567, so it is: 20h,31h,32h,33h,34h,35h,36h,37h;

10th  ~17th byte: Y position value in ASCII.

In the example   Y=-5789123, so it is: 2Dh,35h,37h,38h,39h,31h,32h,33h;

18th  ~25th byte: Z position value in ASCII.

In the example Z= 7654321, so it is: 20h,37h,36h,35h,34h,33h,32h,31h;

26th~33rd byte:L position value in ASCII.

In the example L=-3219876, so it is: 2Dh,33h,32h,31h,39h,38h,37h,36h;

(8) Example  3:  Set  Y  axis  motor  to  go  100  micro     steps(1  micro step=1/12800 round)。

Sending synchronous command:

Sending 55h, waiting 0Dh; Sending 55h, waiting 0Dh; Sending AAh, waiting 0Dh; Sending 55h, waiting 0Dh;

Sending programming command: Sending 05h, waiting 0Dh; Sending 00h, waiting 0Dh; Sending 00h, waiting 0Dh; Sending 64h, waiting 0Dh;
