Product parameters:
| Model | PT-CD100 | PT-CD200 | PT-CD300 |
| Travel（mm） | 100 | 200 | 300 |
| Load Capacity（kg） | 30 | 30 | 30 |
| Resolution（um） | 0.1 | 0.1 | 0.1 |
| Min.Incremental Motion（um） | 0.5 | 0.5 | 0.5 |
| Undirection Repeatability[3]/Guaranteed(μm)[4]（um） | ±0.3 or 0.6 | ±0.3 or 0.6 | ±0.3 or 0.6 |
| Undirection Repeatability/Typical(μm) | ±0.2 or 0.4 | ±0.2 or 0.4 | ±0.2 or 0.4 |
| Bi-Directional Repeatability/Guaranteed(μm) | ±0.5 or 1 | ±0.5 or 1 | ±0.5 or 1 |
| Bi-Directional Repeatability/Typical(μm) | ±0.3 or 0.6 | ±0.3 or 0.6 | ±0.3 or 0.6 |
| Accuracy[3]/Guaranteed(μm) | ±2 or 4 | ±2 or 4 | ±2 or 4 |
| Accuracy/Typical(μm) | ±1 or 2 | ±1 or 2 | ±1 or 2 |
| Max.Speed(mm/s)[5] | 100 | 100 | 100 |
| Straightness(μm) | 10 | 10 | 10 |
| Flatness(μm) | 10 | 10 | 10 |
| Yaw(arcsec) | 15 | 15 | 15 |
| Pitch(arcsec) | 15 | 15 | 15 |
| Weight（kg） | 22 | 25 | 28 |
Remarks：
1: Vertical center load under horizontal placement.
2: The minimum motion increment is not the same as the resolution. The minimum motion increment refers to the smallest amount that a motion system can move under continuous and stable conditions. Generally speaking, the system resolution is much smaller than the minimum motion increment. Considering the influence of the transmission structure and encoder on the system error, compared with the stepping motor displacement stage, the minimum motion increment of the linear motor displacement stage is closer to the resolution.

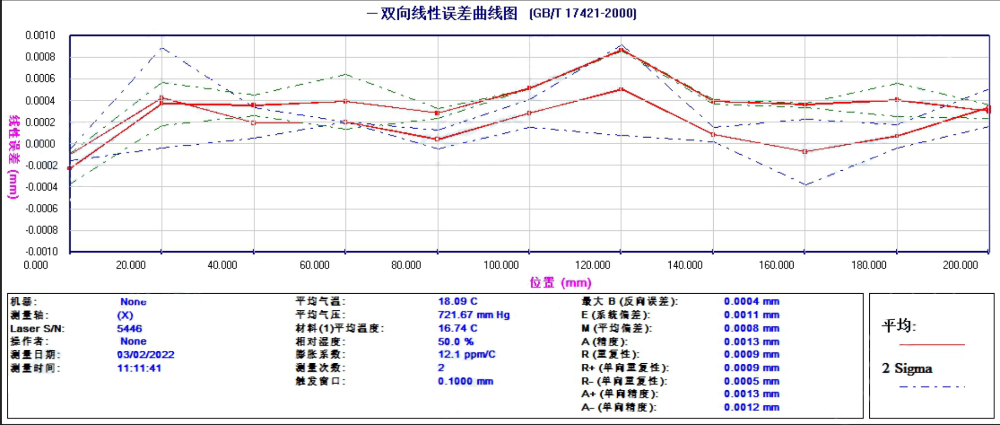

3：The precision measurement data is the data measured by a laser interferometer when the platform is placed horizontally, and the measurement standard refers to GB/T17421-2000.
4：The difference between typical values and guaranteed values can be found in the technical guidelines.
5: The maximum speed is a typical value and may vary depending on the load and controller.
Product Details:

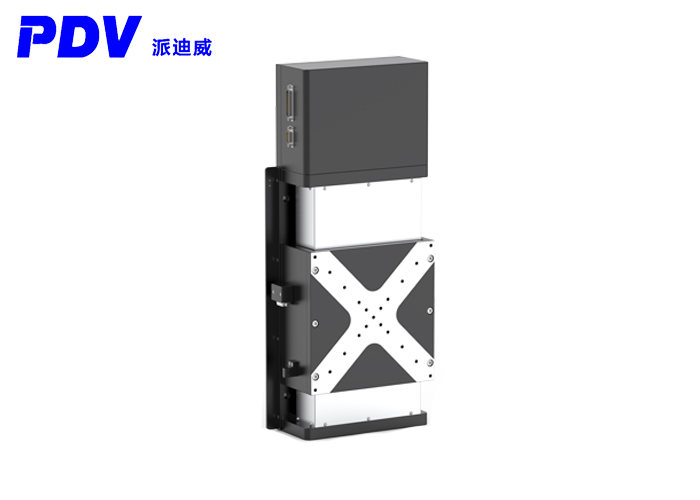

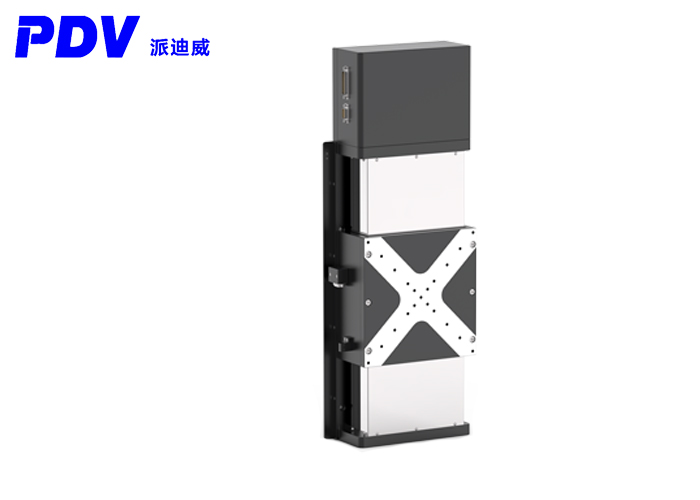

High-precision servo motor heavy-load lifting platform. High load capacity, high precision, stable and reliable
High-precision servo motor heavy-load lifting platform, specially designed for industrial applications that require high-precision and heavy-load vertical positioning. The lifting platform is driven by servo motors and high-precision transmission components, featuring high precision, high stability, and large load capacity. It also supports self-locking upon power failure, has a compact structure, is easy to integrate, and offers multiple stroke options to meet diverse application requirements.
Main features：
Multiple strokes are available to meet more application requirements: Three stroke options of 100mm, 200mm and 300mm are provided. The structure is compact and can be flexibly integrated into various application scenarios. High-precision transmission, stable and reliable movement: Equipped with imported C3 grade lead screws and high-precision SP grade guide rails, combined with grating ruler feedback and standardized installation technology, it ensures outstanding movement accuracy and long-term stable reliability.
Servo motor drive, strong load-bearing capacity: The lifting platform is driven by a servo motor, which has a powerful driving force and can bear a large load, meeting different application requirements.
Self-locking upon power failure, safe and reliable: The lifting platform is equipped with a self-locking function upon power failure, which can automatically lock in case of power failure to ensure the safety of the equipment and the operator.
Precision compensation function, enhancing positioning accuracy: In conjunction with the controller, it can perform precision compensation, further improving positioning accuracy and meeting the demands of high-precision applications.
Strong software support and easy operation: Free standard version SDK, supporting multiple development languages (C/C++, C#, Matlab, LabVIEW, etc.) in Windows and Linux environments, facilitating users' secondary development and system integration.
High-performance controller, enabling complex motion: The controller supports circular interpolation, linear interpolation, position memory and arbitrary graphic import, which can meet various complex motion control requirements.
Flexible communication and seamless connection: Optional EtherCAT bus control is available to achieve high-speed and stable data transmission.
Product application：
DefectDetection, MachineVision, laser marking
Laser Target, Sample Adjustment, Dispenser, GantryDual Drive ZAxis
Product performance:
Product size:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
