Product parameters:
| Model | PT-GD332 |
| Countertop size (mm) | 300x320mm |
| Driving mechanism | Ball screw φ16x4 |
| Guide rail form | Linear guide rail |
| Drive form | 57 Planetary stepper motor |
| Reduction ratio | 10:1 |
| Main material | Aluminum alloy |
| Surface treatment | Black anodized to blacken |
| Central bearing | 50kg |
| Weight | 8kg |
| Adjustment quantity | 2.2μm（No segmentation, valuation） 0.1μm（20segmentation, valuation） |
| Speed | 5mm/sec |
| Repeat positioning | 40μm |
| Empty return | 20μm |
| Descend to a low altitude | 124mm |
| Rise to a high place | 276mm |

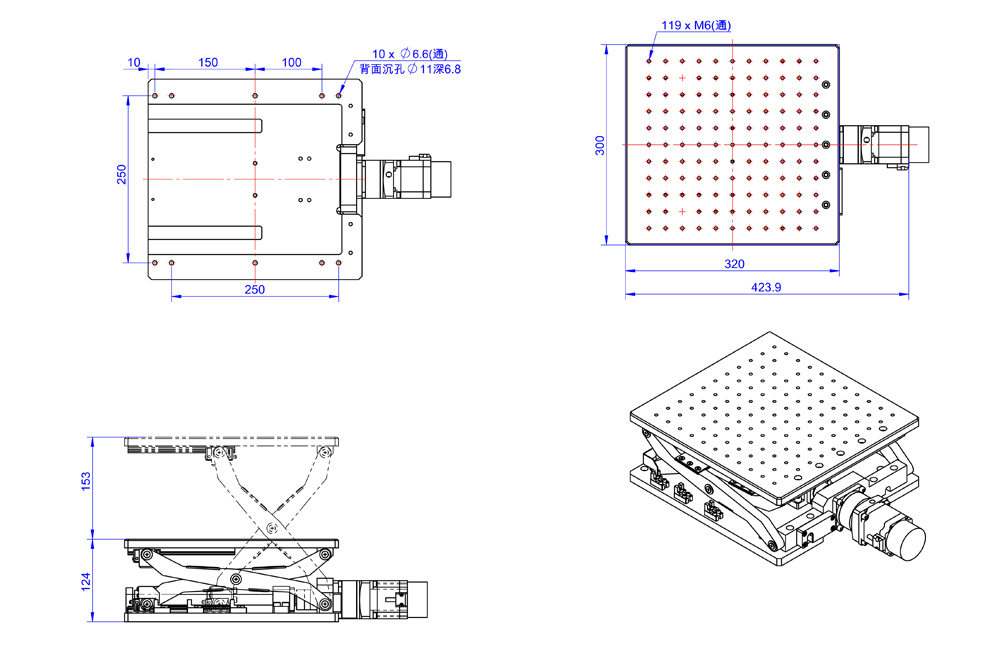

Product size:
